3-6 Confidential

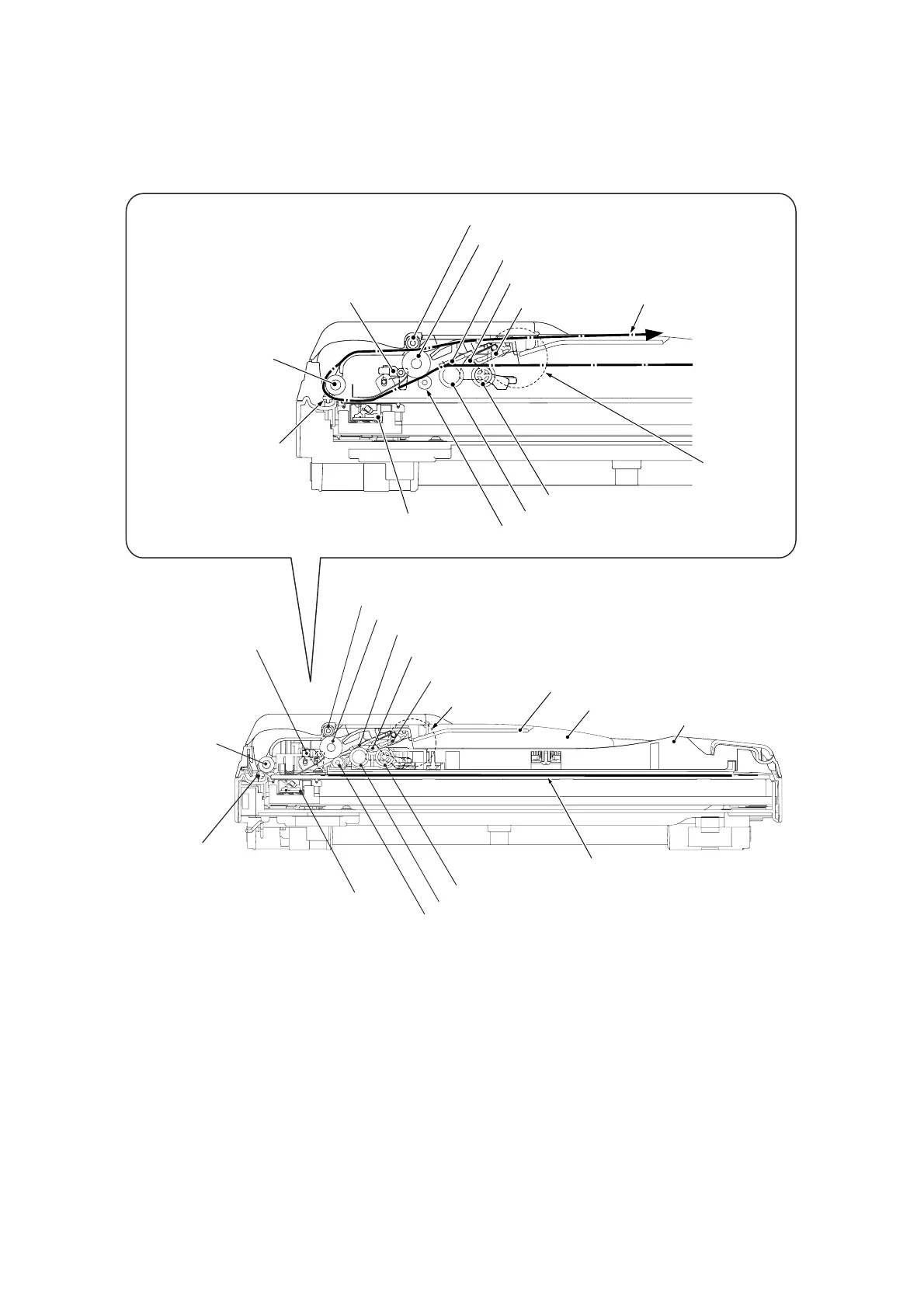

Models with ADF
(3_02_1)
ADF pull-in piece
ADF motor
Document front sensor actuator
Separation pad
Document feed roller 1
Document ejection pinch rollers
Document rear sensor actuator
Document feed roller 2
(Left)
Pinch rollers 2
CIS unit
Pinch rollers 1
Document separation roller
Document pull-in roller
(Right)
ADF pull-in piece
Document front sensor actuator
Separation pad
Document feed roller 1
Document ejection pinch rollers
Document rear sensor actuator
Document feed roller 2
(Left)
Pinch rollers 2
CIS unit
Pinch rollers 1
Document separation roller
Document pull-in roller
Document path for
ADF scanning
Document cover
Ejected document support section
Document guides
ADF motor
Document for flat-bed scanning
Models with ADF offer two types of scanning: ADF scanning and flat-bed scanning. They
automatically switch to the former at the start of a scan operation if the document front sensor
inside the ADF detects a document. Models without ADF offer only flat-bed scanning.
