3-27 Confidential

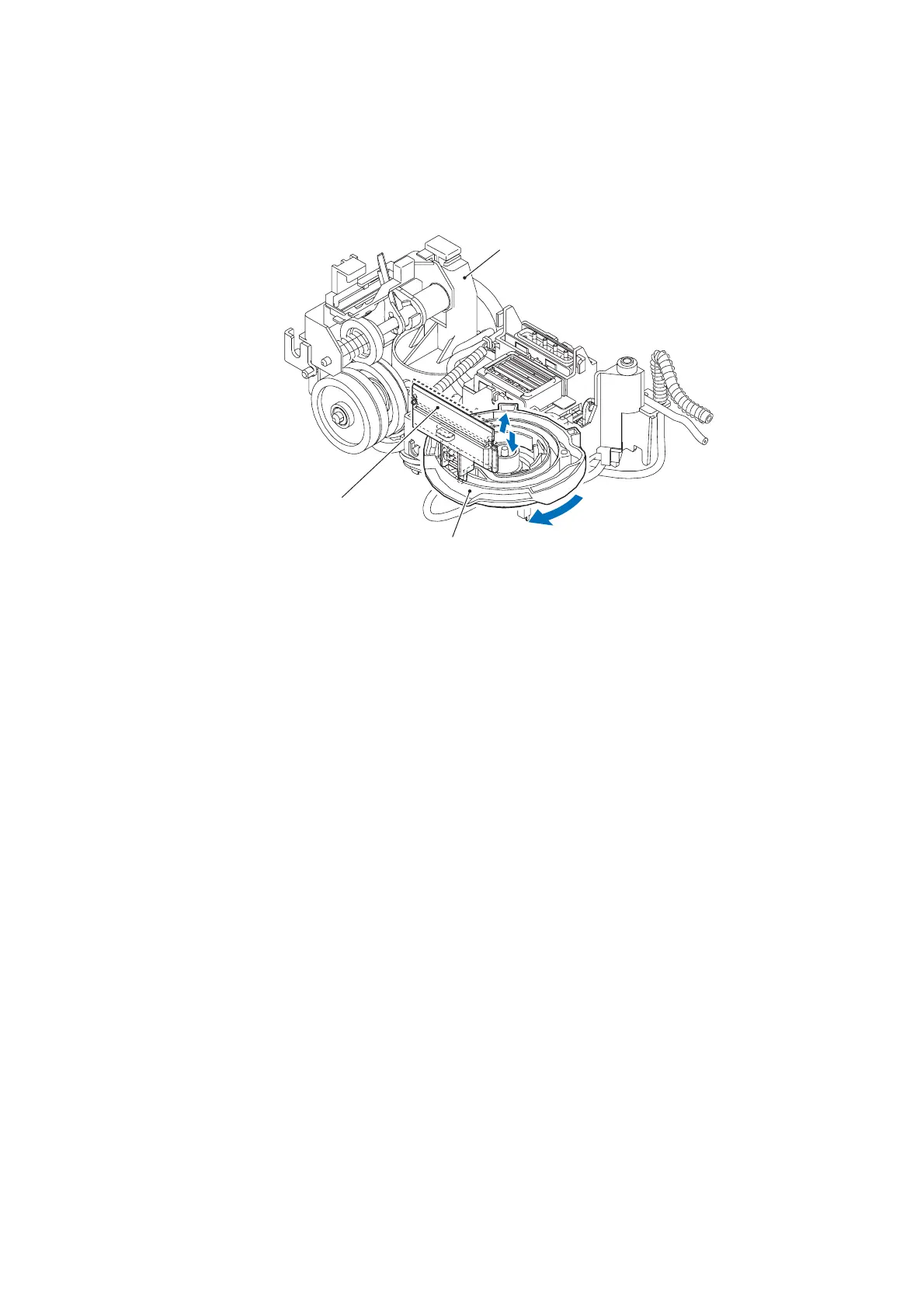

(4) Head wiper mechanism
After the purge operation, the purge cam pushes up the head wiper, wiping off any ink remaining on
the head nozzle surface as the head/carriage unit moves from right to left.
(3_11)
Maintenance unit
Pur
g
e cam
Head wiper
