Purge mode

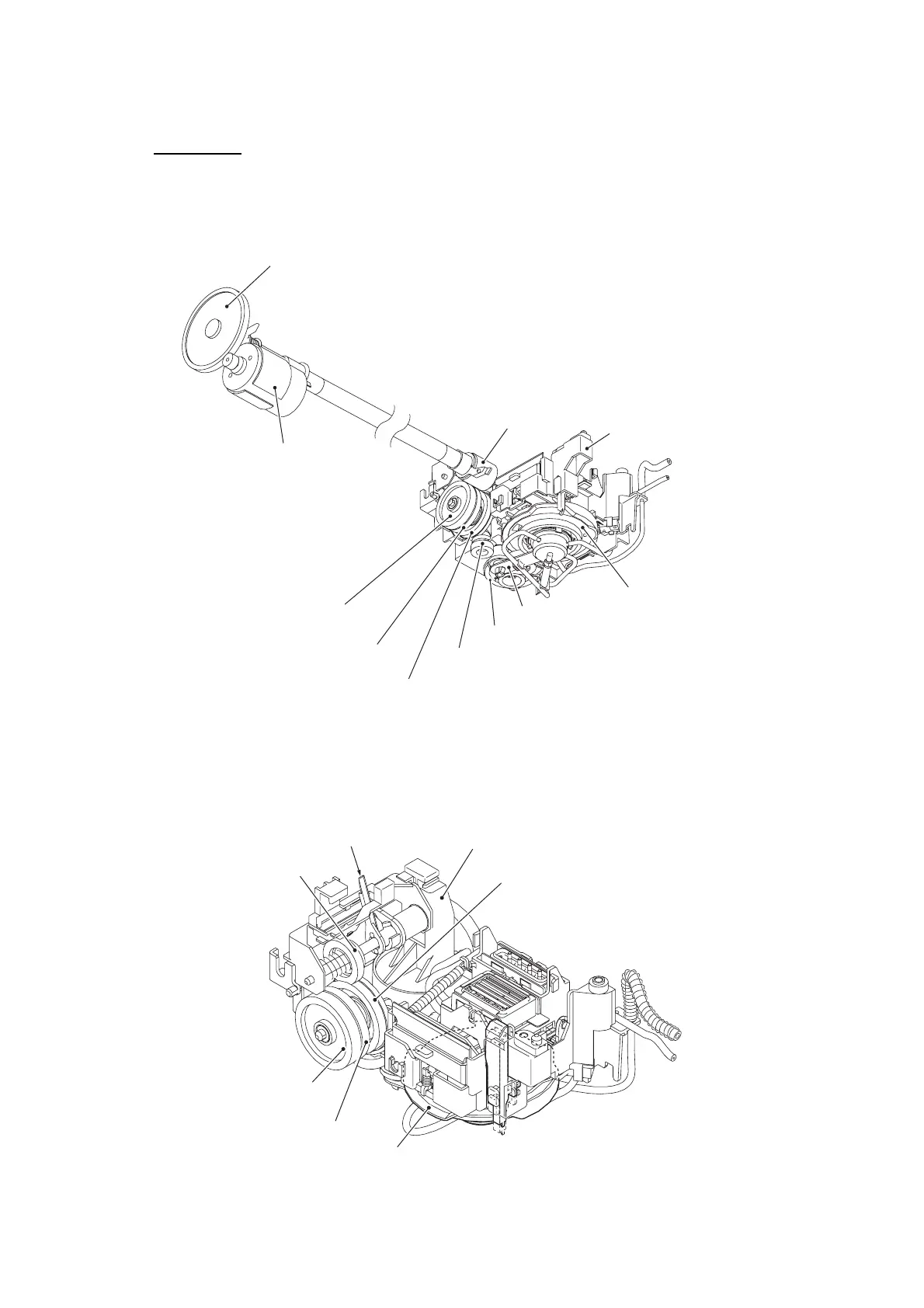

In the purge mode, the motor rotational torque is transmitted to the purge gear, purge bevel gear,
and planetary arm to drive the pump switching unit or tube pump (depending upon the motor
rotational direction).
(3_07)
PF roller gear L
Purge gear
Paper feed motor
SF changeover gear
HS changeover gear
Purge bevel gear
Planetary arm
Pump switching unit
Maintenance unit
PF roller gear R
Tube pump
When the head/carriage unit moves left from the purge position, the tab on the carriage rear panel
releases the mode switching lever, allowing the switching lever spring to force the mode switching
lever and the clutch gear to the left (see the illustration on the previous page). The switching lever
spring is stronger, so forces the clutch gear spring back, disengaging it from the purge gear.
(3_09_1)
Clutch gear
HS changeover gear
SF changeover gear
Purge cam
(Front)
Maintenance unit
Purge gear (engaged with the
purge bevel gear)
Mode switching lever
