2-6
Confidential

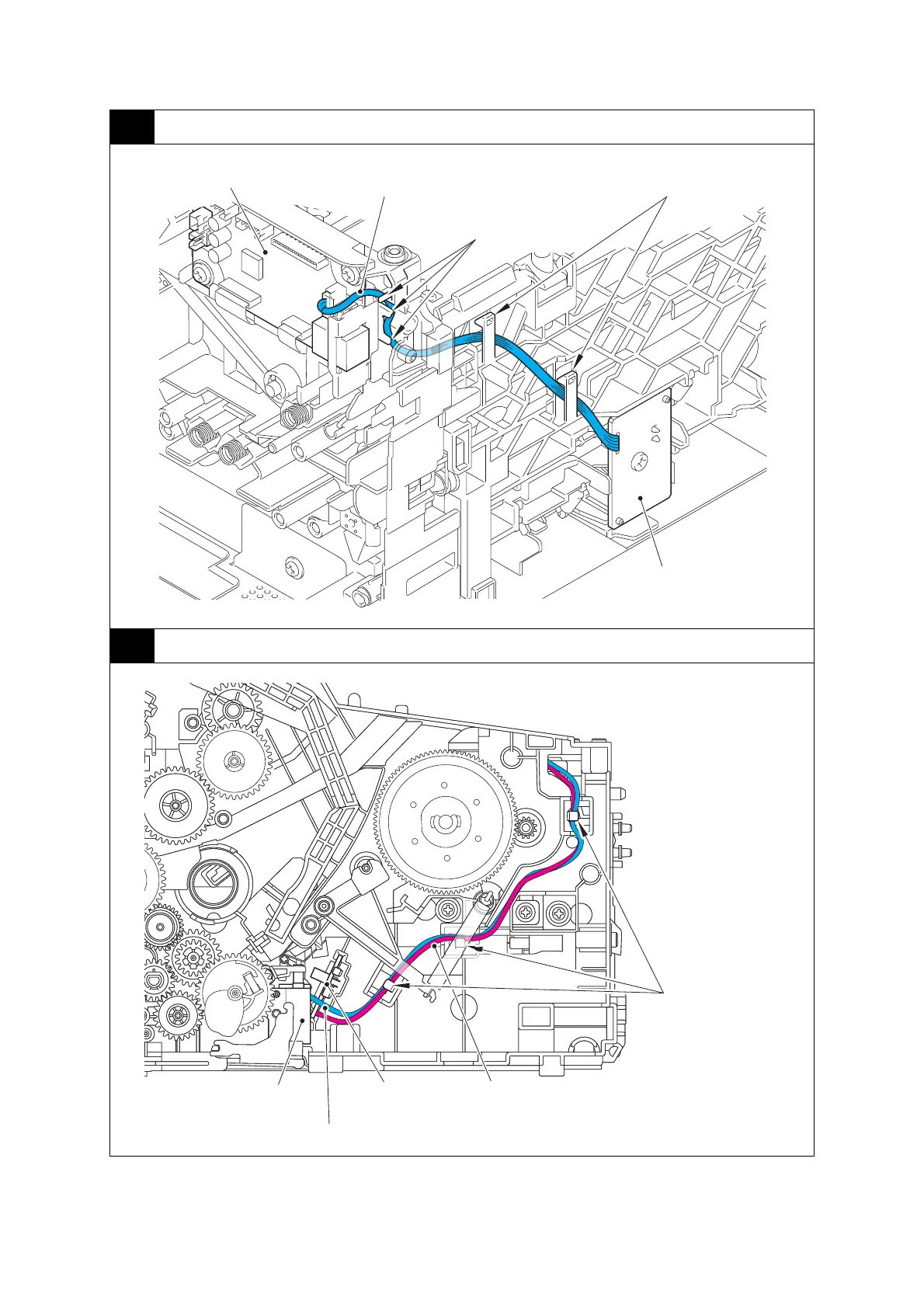

4 Paper feed/paper printing position sensor PCB ASSY
5 New toner sensor PCB ASSY / pick-up solenoid
Harness colors are subject to change for some reason.
Main PCB ASSY
Guides
Hooks
Paper feed/paper printing
position sensor PCB ASSY
Paper feed/paper printing position sensor
PCB harness (BK, GR, PU, GN, BR)
Hooks
New toner sensor PCB harness
(RD, GN, WH)
New toner sensor
PCB ASSY
Pick-up solenoid harness (BK)
Pick-up solenoid
To Next Page
