2-25
Confidential
7.14 Eject sensor PCB ASSY
(1) Disconnect the eject sensor PCB harness from the paper feed/paper printing position
sensor PCB ASSY, and release it from the securing fixtures.
(2) Release the two hooks, and remove the eject sensor PCB ASSY from the machine.

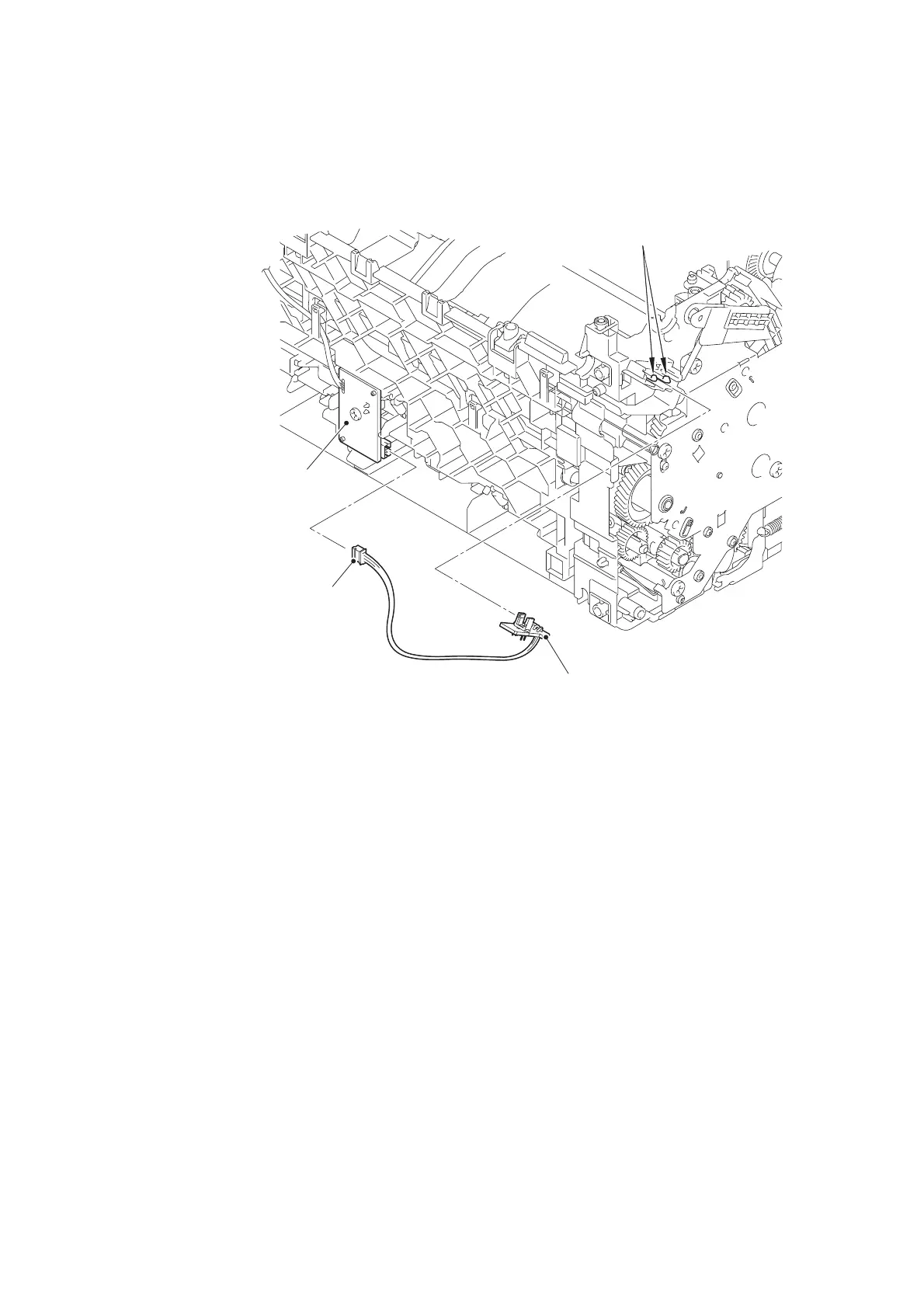

Fig. 2-25
Harness routing: Refer to “3. Eject sensor PCB ASSY”.
Hooks
Eject sensor PCB harness
Eject sensor PCB ASSY
Paper feed/paper printing
position sensor PCB ASSY
To Next Page
