Brother HL-1112 - Side Cover R

2-15
Confidential
7.6 Side cover R

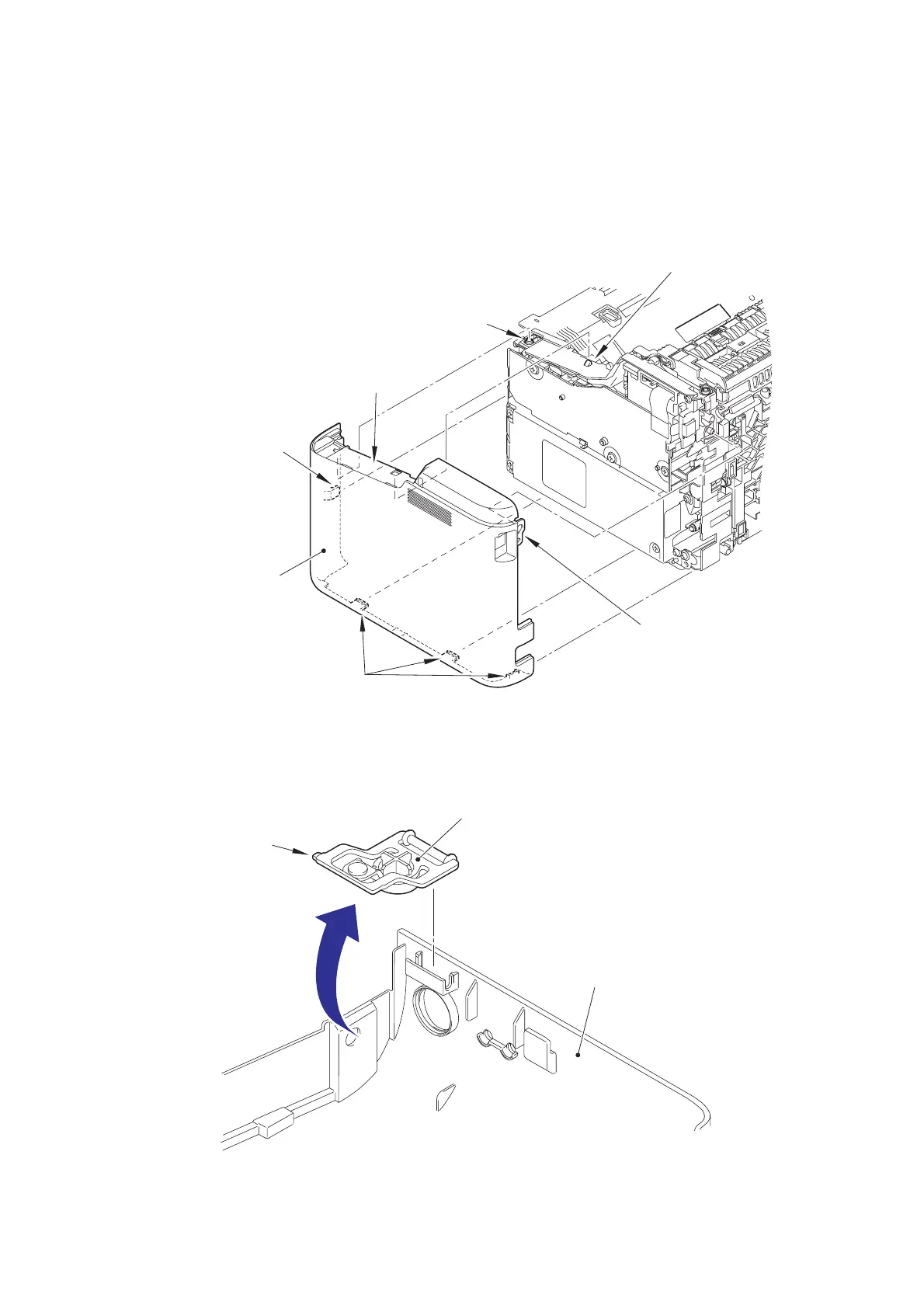

(1) Remove the boss bushing at the rear side of the side cover R.
(2) Lift the rib of the side cover R to release it from the boss and hook of the machine. Pull
out the tab of the side cover R and release the three hooks at the bottom to remove the
side cover R.
Fig. 2-11
(3) Release the hook and open the switch key to remove it from the side cover R.
Fig. 2-12
Boss bushing
Boss
Hook
Tab
Side cover R
Hooks
Rib
Switch key
Hook
Side cover R
