2-14
Confidential

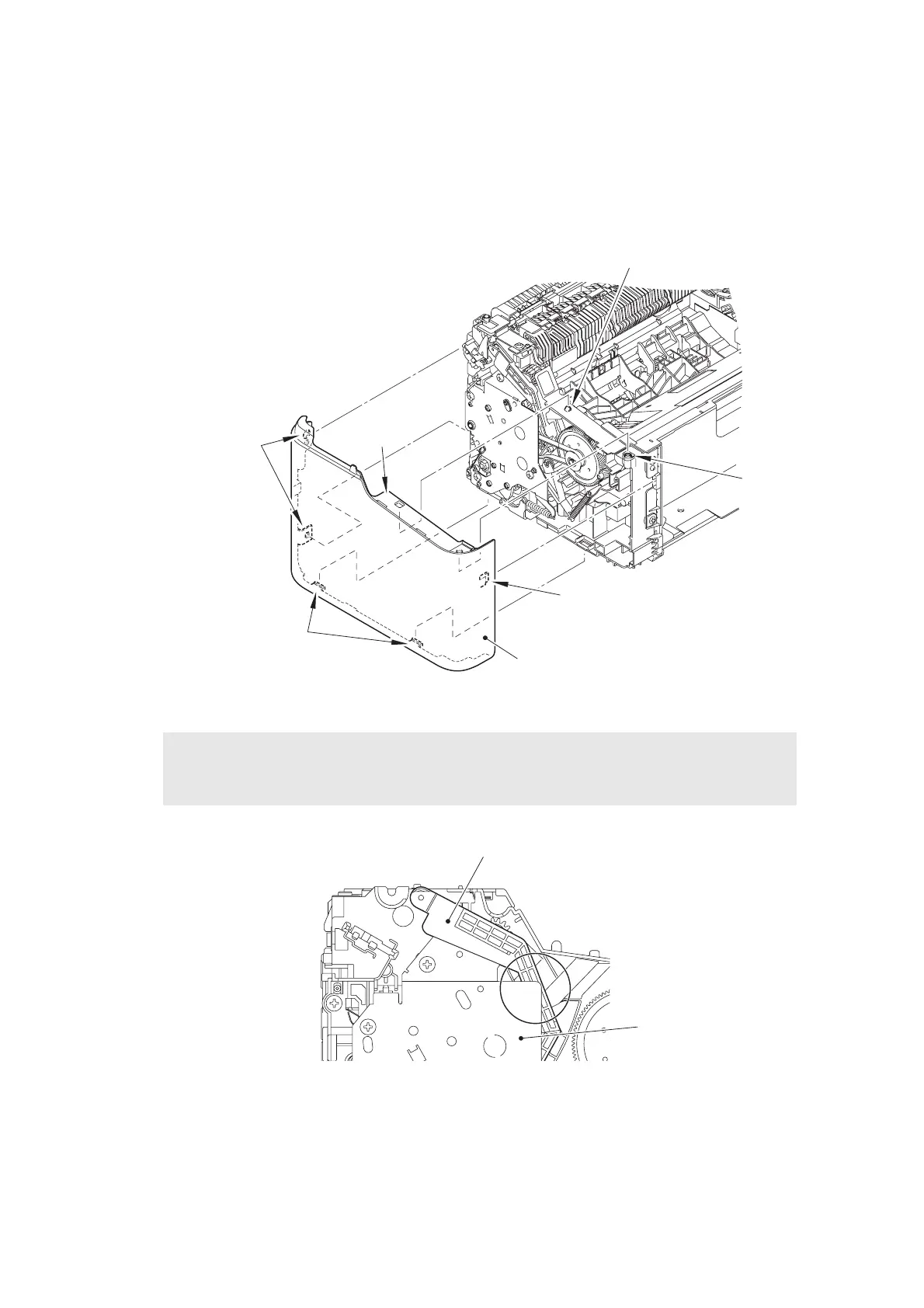

7.5 Side cover L
(1) Remove the two boss bushings at the rear side of the side cover L.
(2) Lift the rib of the side cover L to release it from the boss and hook of the machine. Pull
out the tab of the side cover L, and release the two hooks at the bottom to remove the
side cover L.
Fig. 2-9
Fig. 2-10
Assembling Note:
• When assembling the side cover L, make sure that the develop joint link is on the inner
side of the drive sub ASSY.
Hooks
Hook
Boss
Tab
Side cover L
Boss bushings
Rib
Develop joint link
Drive sub ASSY
To Next Page
