Brother HL-2030 - Fixing Unit

HL-2030/2040/2070N SERVICE MANUAL
Confidential
4-15
3.11 Fixing Unit

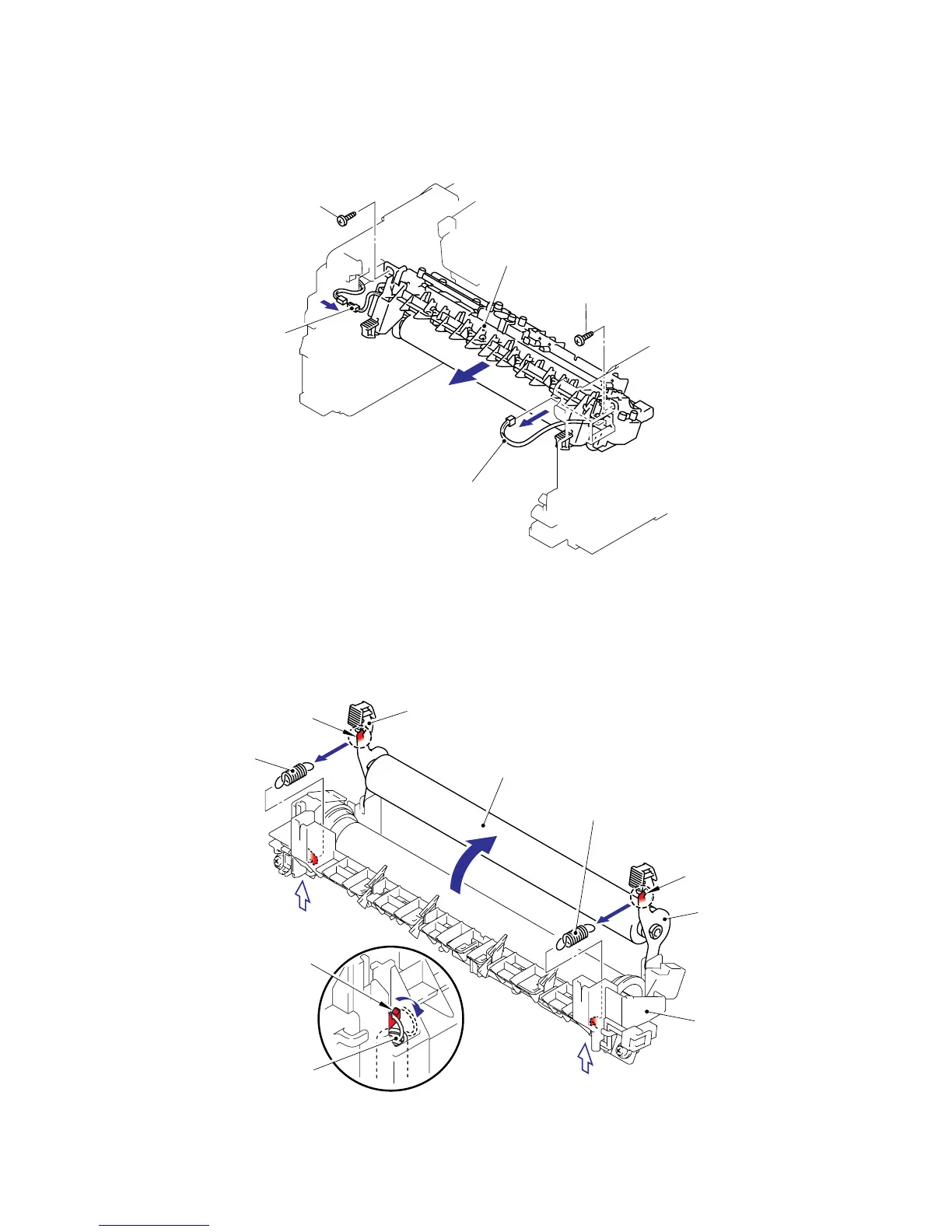

(1) Disconnect the heater harness connector and thermistor harness connector.
(2) Remove the two cup B M4x12 taptite screws, and then remove fixing unit.
Fig. 4-23
NOTE:
Be sure not to touch the pressure roller.
(3) Remove the two PR spring.
(4) Remove the pressure roller ASSY (pressure roller, PR arm ASSY, PR bush) from the
fuser frame.
Fig. 4-24
Taptite, cup B M4x12
Taptite, cup B M4x12
Heater harness
Fixing unit
Thermistor harness
PR arm ASSY
PR spring
3
2
1
3
2
2
Hook
Fuser frame
Hook
Pressure roller
PR spring
Hook
“A”
“A”
“A”
1
PR spring
PR arm ASSY
