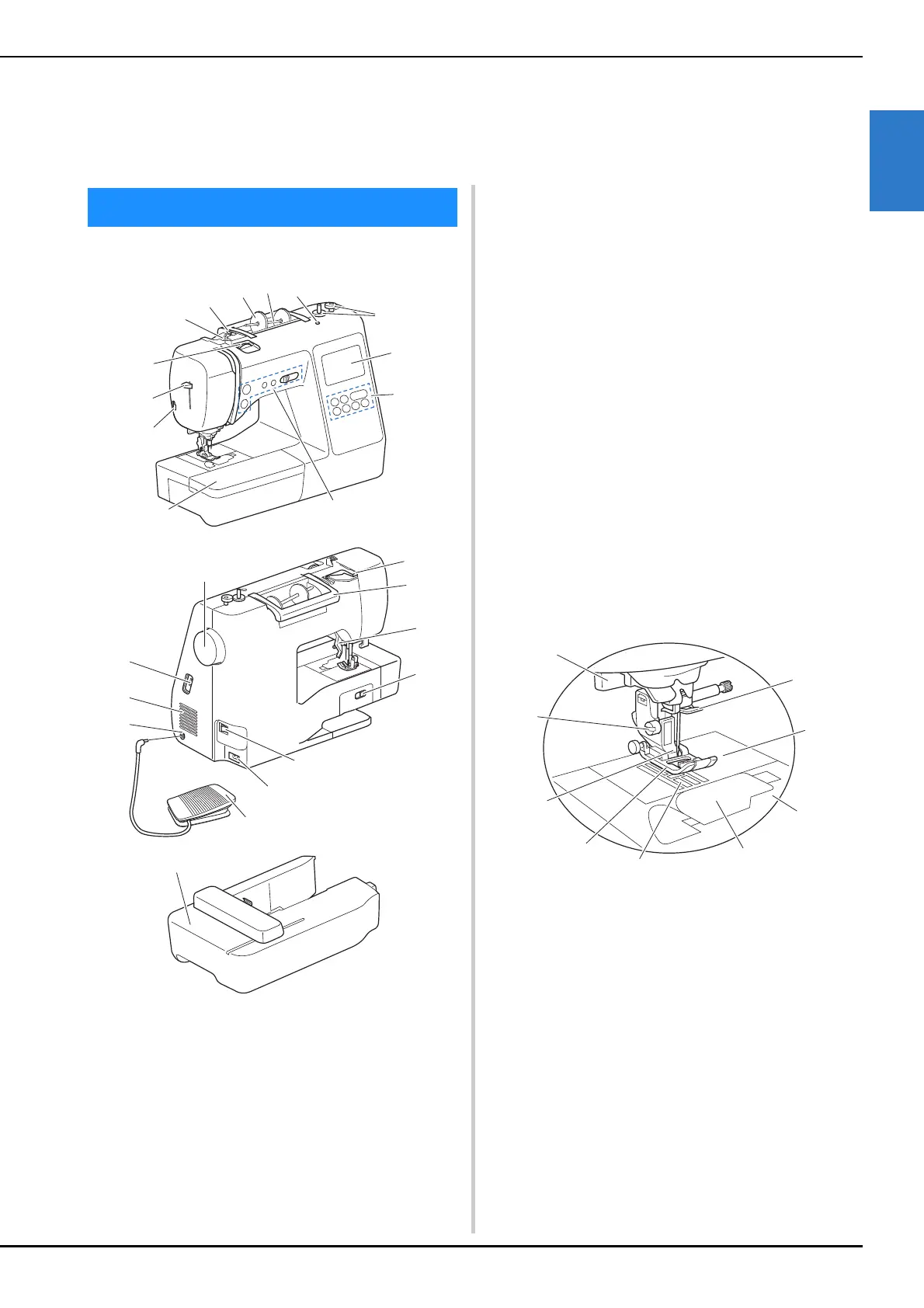

Names of Machine Parts
GETTING READY
5
1
■ Main parts
1 Bobbin winding thread guide and pretension disk
(page 15)
2 Thread guide (page 14)
3 Spool cap (page 13)
4 Spool pin (page 13)
5 Hole for extra spool pin
This holds an extra spool pin for sewing with twin needle. (page
52) This is not a hole for lubrication. Do not insert oil into this
hole.
6 Bobbin winder (page 13)
7 LCD (liquid crystal display) (page 10)
8 Operation panel (page 6)
9 Operation buttons and sewing speed controller
(page 6)
0 Flat bed attachment (page 7, 31)
A Thread cutter (page 19)
B Needle threader lever (page 19)
C Thread tension dial (page 29, 67)
D Handwheel
Turn the handwheel toward you (counterclockwise) to raise and
lower the needle to sew one stitch.
E Thread guide cover (page 14)
F Handle
Carry the machine by its handle when transporting.
G Presser foot lever
Raise and lower the presser foot lever to raise and lower the
presser foot.
H Feed dog position switch
Use the feed dog position switch to raise and lower the feed
dogs. (page 47)
I Main power switch (page 9)
J Power supply jack (page 9)
K Foot controller (page 26)
L Foot controller jack (page 26)
M Air vent
The air vent allows the air surrounding the motor to circulate.
Do not cover the air vent while the machine is being used.
N USB port (for a USB flash drive) (page 55, 75)
O Embroidery unit (page 58)
■
Needle and presser foot section
1 Needle bar thread guide (page 18)
2 Needle plate (page 31)
3 Needle plate cover (page 16)
4 Bobbin cover/bobbin case (page 16, 78)
5 Feed dogs
The feed dogs feed the fabric in the sewing direction.
6 Presser foot
The presser foot applies pressure consistently on the fabric as
the sewing takes place. Attach the appropriate presser foot for
the selected stitch.
7 Presser foot holder (page 24)
8 Presser foot holder screw (page 24)
9 Buttonhole lever (page 42)
Chapter 1
GETTING READY
Names of Machine Parts
n
o
p
q
r
s
t
u
v
w
x
i
b
a
c
d
e
f
g
h
