Brother MFC-7220 - Front Cover

Confidential
5-35
5.1.16 Front Cover

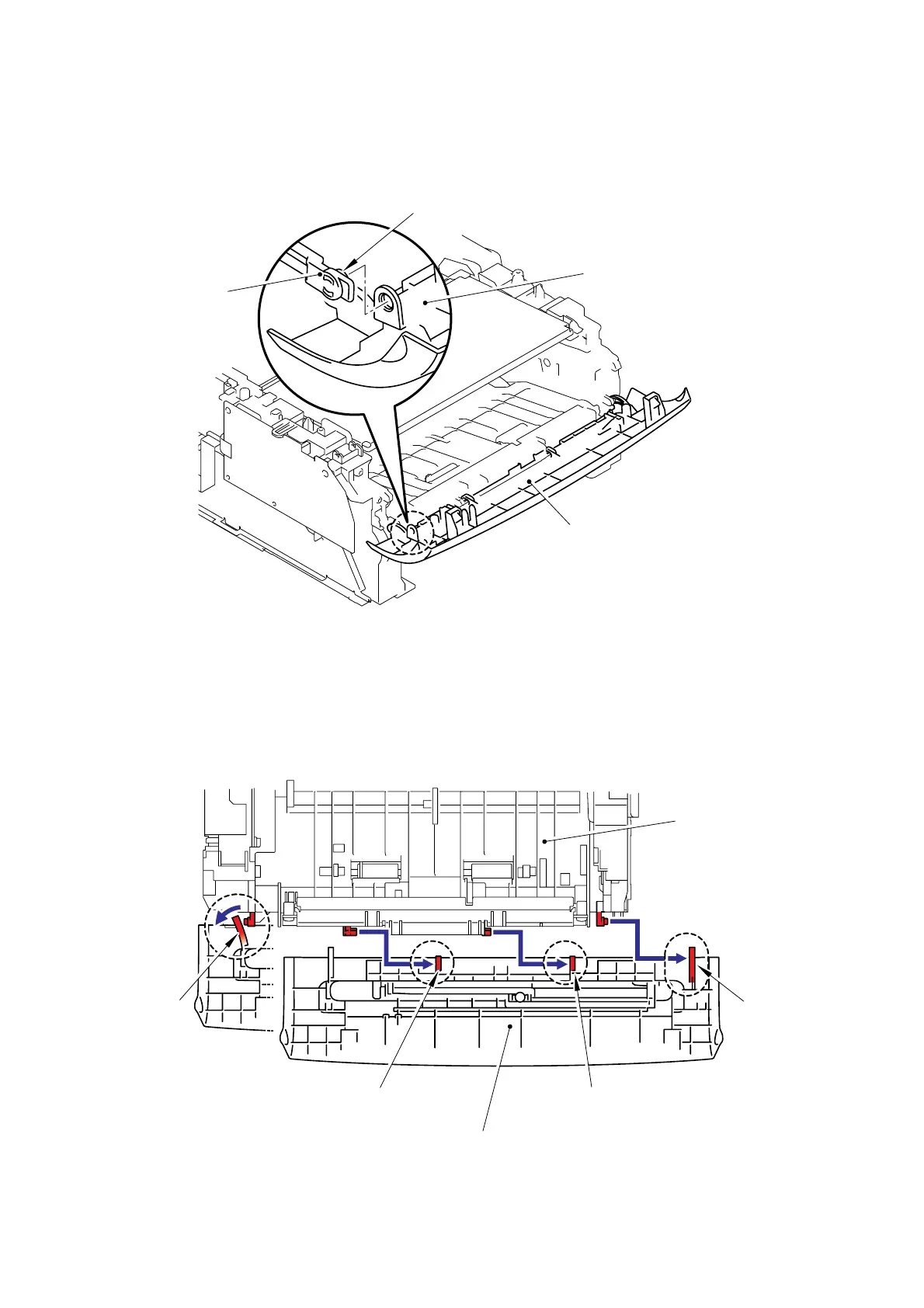

(1) Release the hook of the drive release cam from the front cover ASSY.
(2) Release the hook “A” on the front cover ASSY from the chute.
(3) Slide the front cover ASSY to the direction of the arrow shown in the figure below to
remove it.
Hoo
k
Front cover ASSY
Drive release ca
m
Front cover ASSY
Chute
Hoo
k
Hoo
k
Front cover ASSY
Hoo
k
Hook “
A
”
