Brother MFC-7220 User Manual

Confidential
5-22

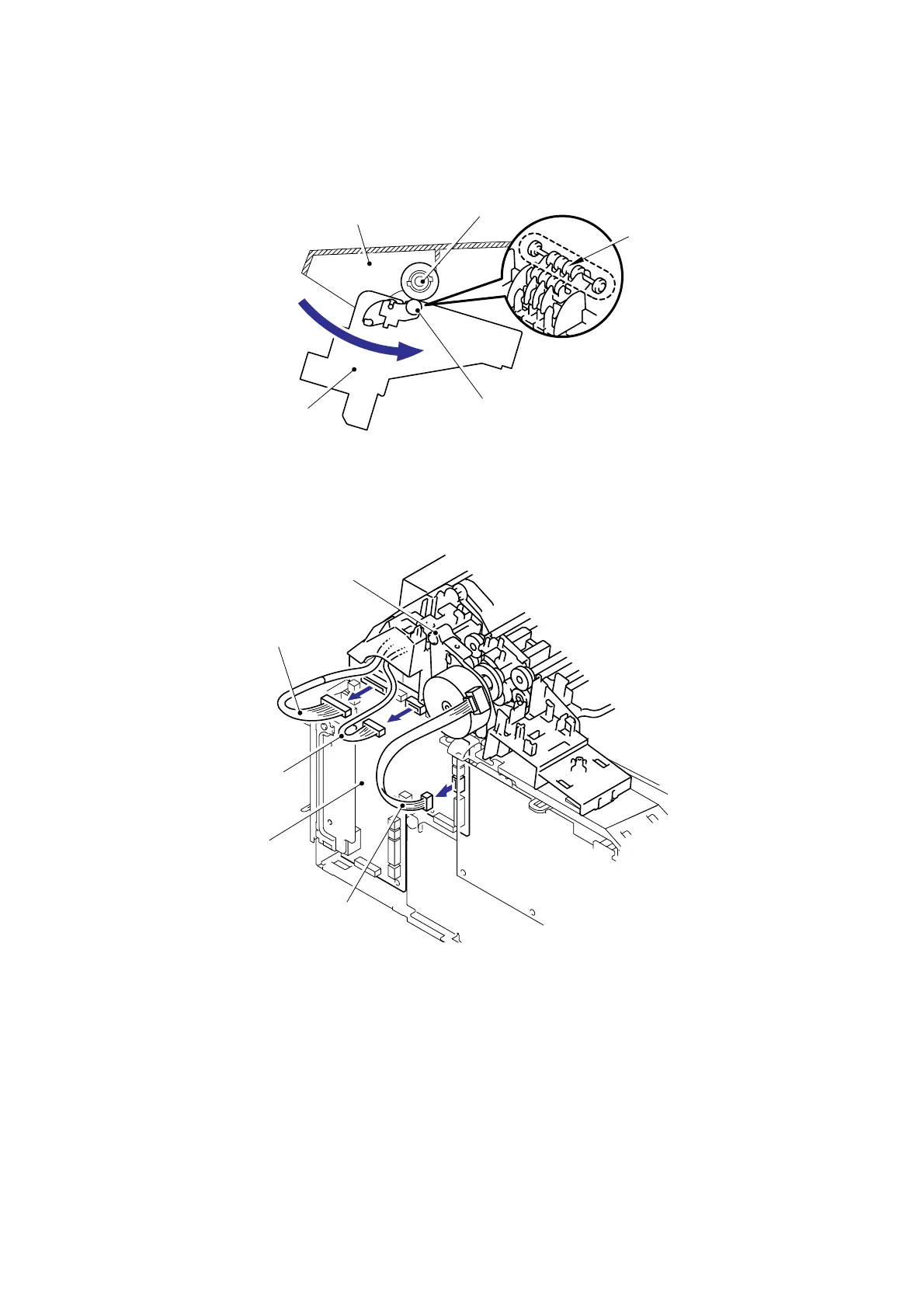

NOTE: Re-assemble the inner chute while pushing onto the pinch roller of the inner chute
with the eject roller of the top cover.
(4) Disconnect the three connectors from the main PCB.
Main PCB
Top cove
r
Top cove
r
Eject rolle
r
Inner chute
Pinch rolle
r
Pinch rolle
r
N
CU harness
CIS harness
Scan
n
ing motor F sub harness

Brother MFC-7220 Specifications

General

Print technology	Laser
Maximum resolution	1200 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	20 ppm
PC free copying	Yes
Copy speed (black, normal quality, A4)	20 cpm
Faxing	Mono faxing
Modem speed	14.4 Kbit/s
Total input capacity	250 sheets
Total output capacity	100 sheets
Auto document feeder (ADF) input capacity	20 sheets
Display	LCD
Market positioning	Home & office
Internal memory	16 MB
Dimensions (WxDxH)	452.12 x 492.76 x 429.26 mm
Power requirements	AC 120V 50/60Hz
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	Print
Compatible operating systems	Windows & Mac OS
Bundled software	Scansoft PaperPort SE with OCR for Windows and Presto PageManager for Mac
Sustainability certificates	ENERGY STAR
Power consumption (off)	10 W
Power consumption (standby)	75 W
Power consumption (average operating)	1032 W
Operating temperature (T-T)	50 - 91 °C
Non-operating relative humidity (non-condensing)	20 - 80 %
Digital sender	No
Maximum duty cycle	10000 pages per month

Weight and Dimensions

Weight	10795 g
