Brother MFC-8690DW Quick Setup Guide

5
3

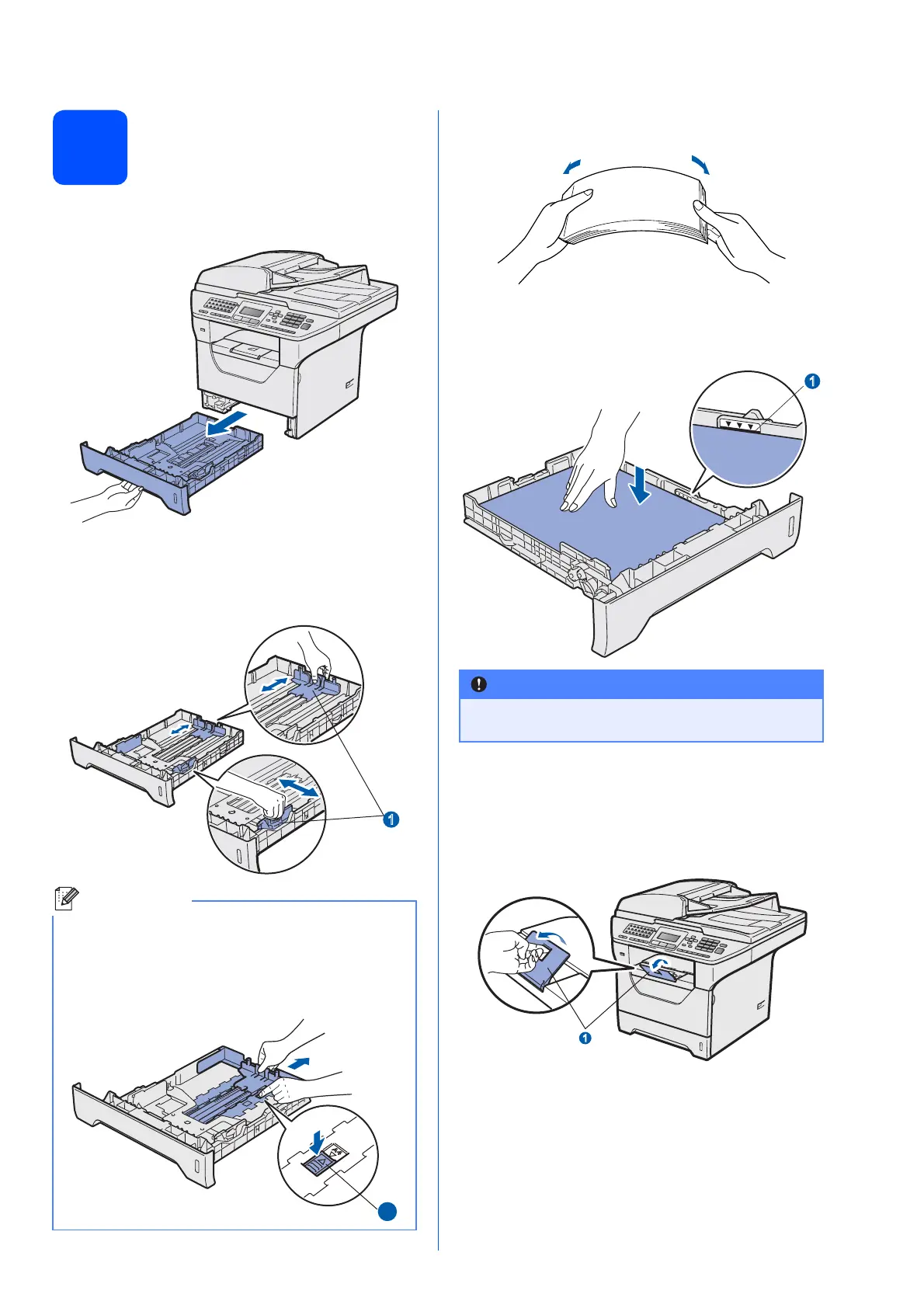

Load paper in the paper
tray
a Pull the paper tray completely out of the
machine.
b While pressing the blue paper-guide release
lever a, slide the paper guides to fit the paper
size you are loading in the tray. Make sure that
the guides are firmly in the slots.
c Fan the stack of paper well to avoid paper jams
and misfeeds.
d Put paper in the tray, and make sure that the
paper is below the maximum paper mark a.
The side to be printed on must be face down.
e Put the paper tray firmly back in the machine.
Make sure that it is completely inserted into the
machine.
f Unfold the support flap a to prevent paper
from sliding off the face-down output tray.
Note
For Legal or Folio size paper, press the release
button a in the bottom of the paper tray and then
pull out the back of the paper tray.
(Legal or Folio size paper are not available in
some regions.)
1
1
1
IMPORTANT
Make sure the paper guides touch the sides of
the paper so it will feed properly.
1
1

Brother MFC-8690DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Copy Resolution	Up to 1200 x 600 dpi
Fax Modem Speed	33.6 Kbps
Mobile Printing	Yes
ADF Capacity	50 sheets
Maximum Paper Size	8.5" x 14" (Legal)
Operating System Compatibility	Windows, Mac OS, Linux
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Copy Speed	Up to 32 cpm
Fax Resolution	Up to 203 x 392 dpi
Connectivity	Ethernet
Paper Capacity	250 sheets
Print Speed (Black)	Up to 32 ppm (Letter)
