Brother MFC-8690DW Quick Setup Guide

6
4

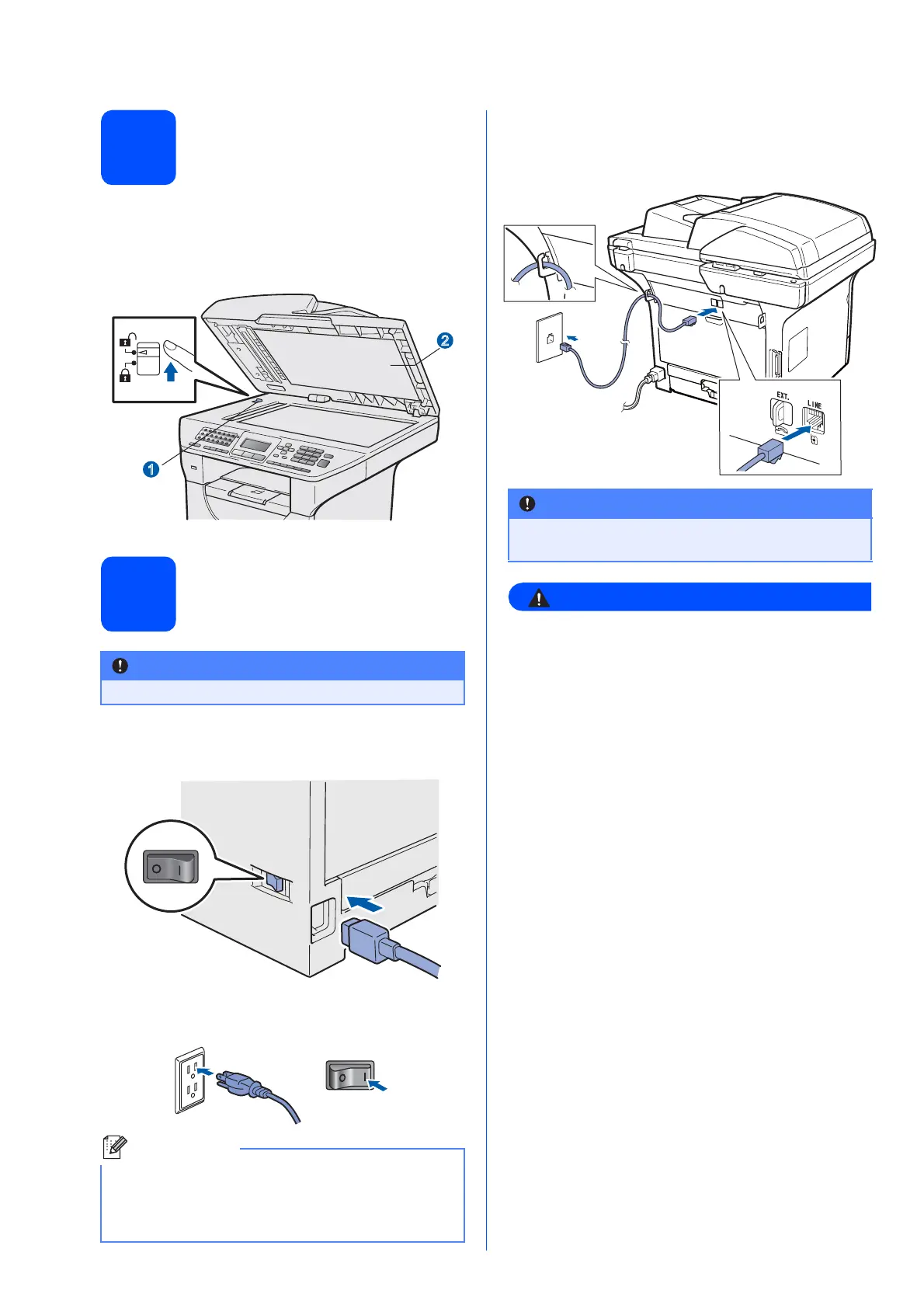

Release the scanner lock
a Push the lever a in the direction shown to
unlock the scanner.
(The gray scanner lock lever is located at the
back left side, under the document cover b.)
5
Connect the power cord
and telephone line
a Make sure that the machine power switch is off.
Connect the AC power cord to the machine.
b Plug the AC power cord into an AC outlet. Turn
the power switch on.
c Connect the telephone line cord. Connect one
end of the telephone line cord to the jack on the
machine marked LINE and the other end to a
modular wall jack.
WARNING
The machine must be grounded using a
3-prong plug.
Since the machine is grounded through the
power outlet, you can protect yourself from
potentially hazardous electrical conditions on
the telephone network by keeping the power
cord connected to your machine when you
connect it to a telephone line. Similarly, you
can protect yourself when you want to move
your machine by disconnecting the telephone
line first and then the power cord.
IMPORTANT
DO NOT connect the interface cable yet.
Note
If Scanner Locked appears on the LCD,
immediately release the scanner lock and press
Stop/Exit. (See Release the scanner
lock on page 6.)
2
1
IMPORTANT
The telephone line cord MUST be connected
to the jack on the machine marked LINE.

Brother MFC-8690DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Copy Resolution	Up to 1200 x 600 dpi
Fax Modem Speed	33.6 Kbps
Mobile Printing	Yes
ADF Capacity	50 sheets
Maximum Paper Size	8.5" x 14" (Legal)
Operating System Compatibility	Windows, Mac OS, Linux
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Copy Speed	Up to 32 cpm
Fax Resolution	Up to 203 x 392 dpi
Connectivity	Ethernet
Paper Capacity	250 sheets
Print Speed (Black)	Up to 32 ppm (Letter)
