3-8
Confidential

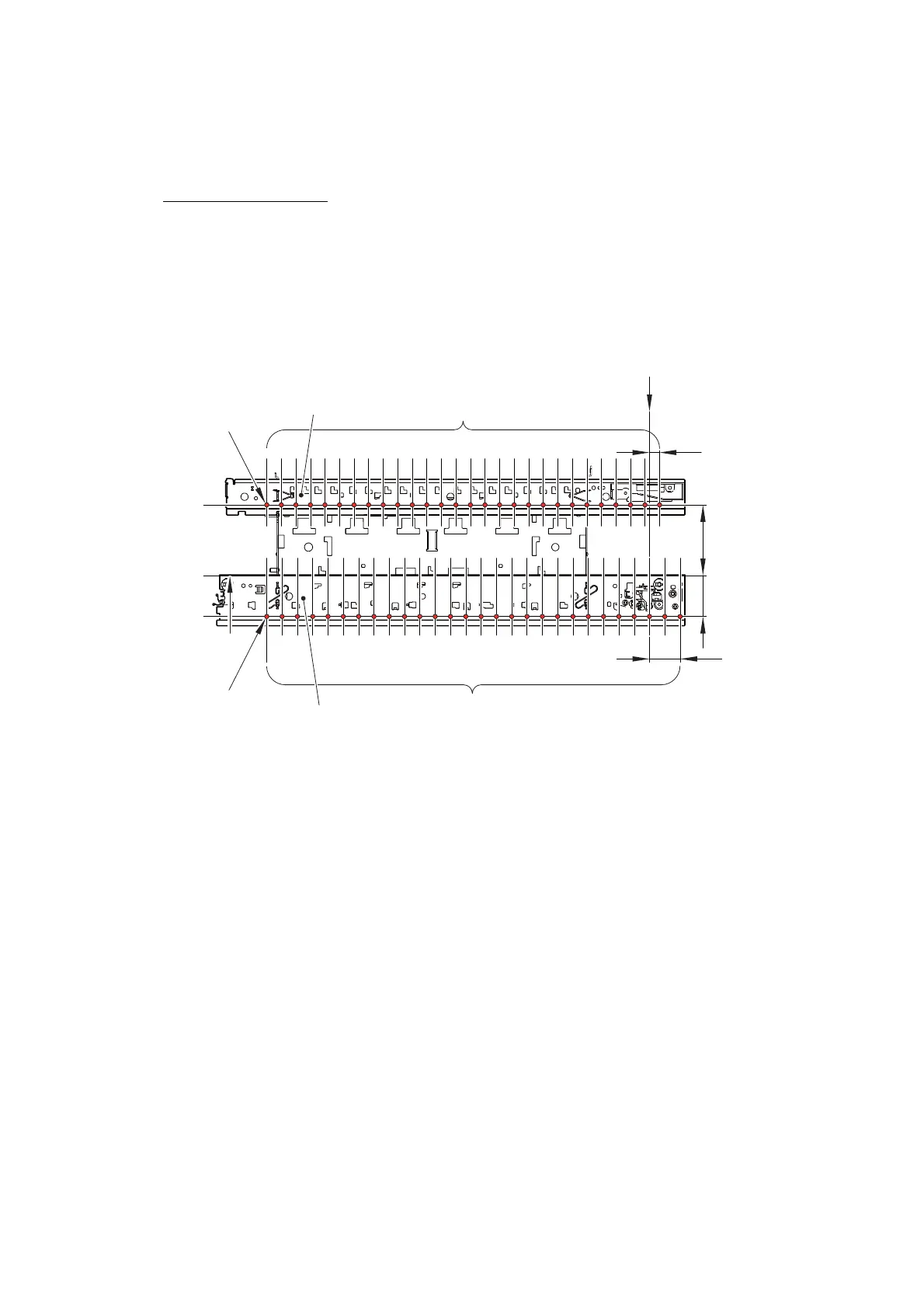

CR guide rail and CR frame (top face)
Apply a 2 mm diameter ball of grease (FLOIL BG-14NSU) to each of the 56 lubrication points
below.
Lubrication procedure
(1) Move the head/carriage unit to the left end of its travel.
(2) Before applying grease, wipe dust or dirt off the lubrication area with an alcohol
soaked cloth.
(3) Move the head/carriage unit from the left to the right ends of its travel to spread the
applied grease on the CR guide rail and CR frame.
Apply grease here.
Apply grease here.
CR guide rail
CR frame
(mm)
15.49 interval x 27
16.66 interval x27
76.05±0.542.65±0.5
30.5
13.4
Home position of
head/carriage unit
Reference Y
To Next Page
