3-9
Confidential

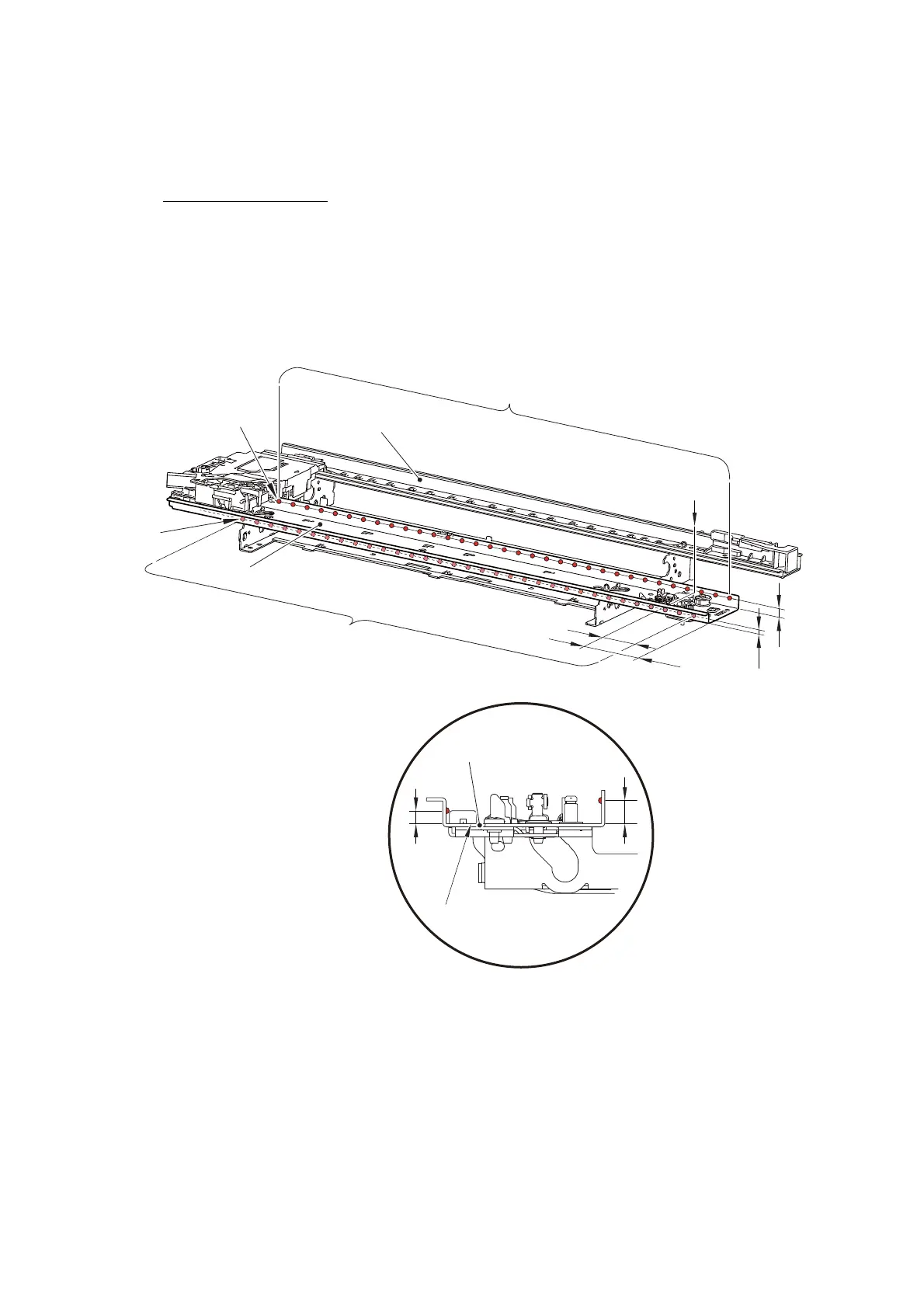

CR frame (inner sides of the front and rear upright edges)
Apply a 2 mm diameter ball of grease (FLOIL BG-14NSU) to each of the 66 lubrication points
below.
Lubrication procedure
(1) Move the head/carriage unit to the left end of its travel.
(2) Before applying grease, wipe dust or dirt off the lubrication area with an alcohol
soaked cloth.
(3) Move the head/carriage unit from the left to the right ends of its travel to spread the
applied grease on the CR guide rail and CR frame.
14.14 interval x 32
14.14 interval x 32
Home position of
CR frame
Apply grease here.
CR frame
CR guide rail
A: 4.2±0.5
B: 7.15±0.5
(mm)
45.35
30.5
head/carriage unit
Apply
Reference on the sliding surface Z
A
B
grease
here.
To Next Page
