Brother MFC-J5830DW Service Manual

3-71
Confidential

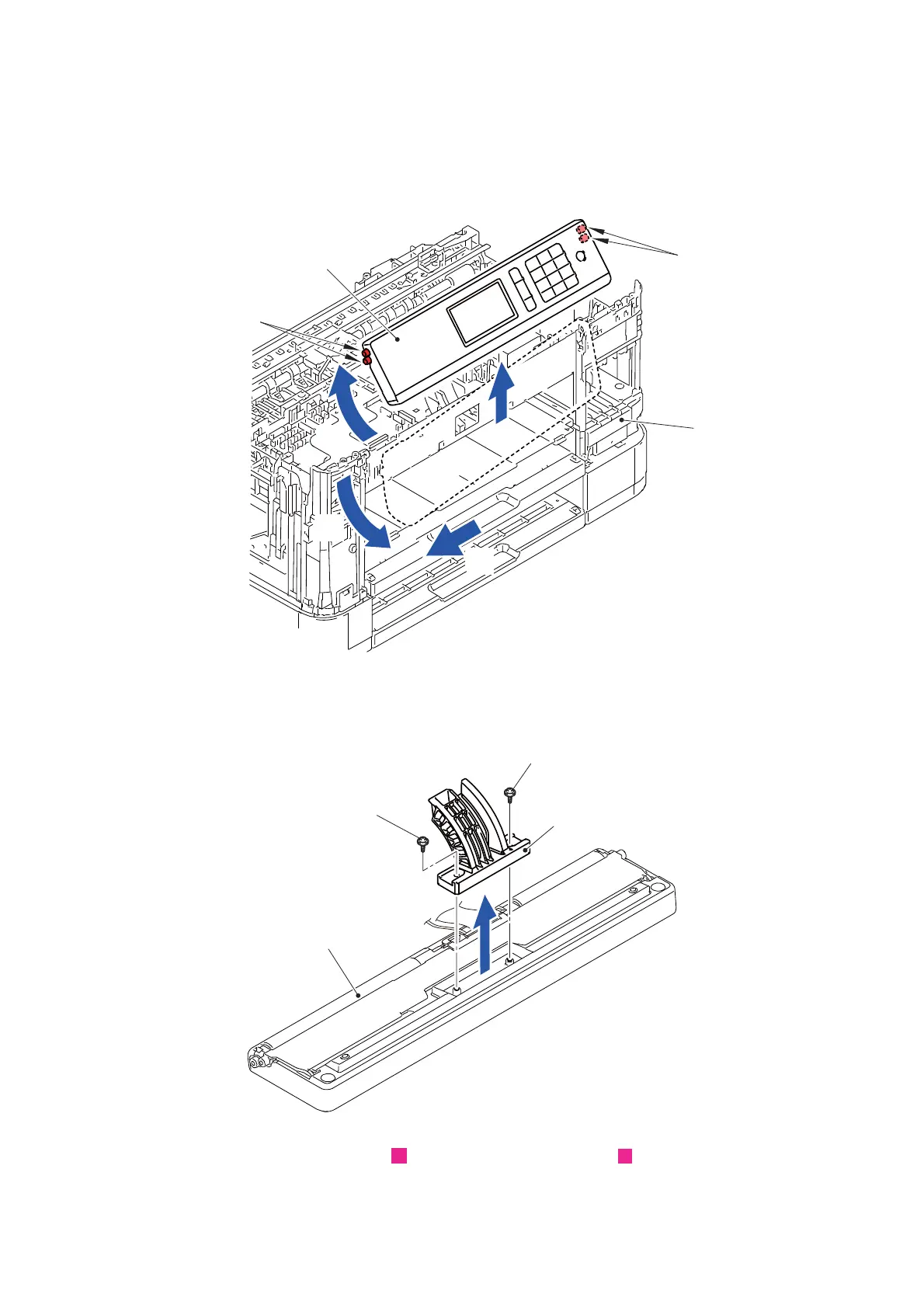

(12)Remove the two Pins on the left-side of the Control panel ASSY in the direction of
the arrow.
(13)Remove the two Pins on the right-side of the Control panel ASSY from the Lower
cover.
Fig. 3-67
(14)Remove the two screws (TAPTITE CUP B M3x8) and remove the Tilt hook from
the Control panel ASSY.
Fig. 3-68
Routing of harnesses: See “ Main PCB/Modem PCB”, “ Control panel ASSY”.
Pins
Pins
Control panel ASSY
Lower cover
13b
12b
13a
12a
TAPTITE CUP B M3x8
Control panel ASSY
Tilt hook
TAPTITE CUP B M3x8
3
17
