Brother P-Touch PT-2730 Service Manual

I - 1
CHAPTER I SPECIFICATIONS
1.1 Mechanical Specifications
1.1.1 External Appearance

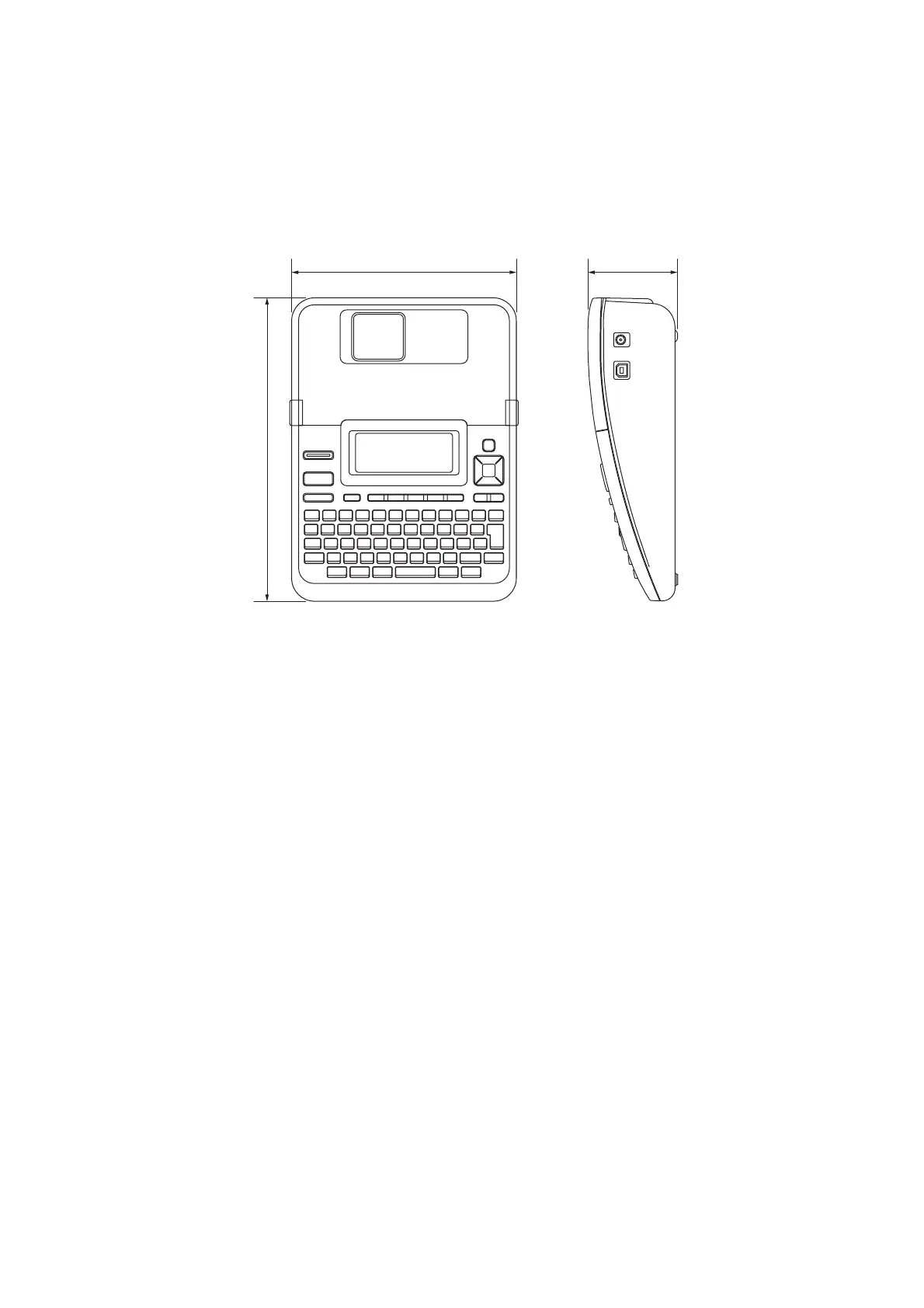

Figure 1.1-1 External Appearance
(1) Dimensions (W x D x H) 177 x 238 x 70 mm
(incl. keys, cutter lever and bottom feet)
(2) Weight
- Machine proper Approx. 0.88 kg (Machine proper only)
- In package Approx. 1.8 kg
(US specification is not included the batteries.
Including one tape cassette.)
1.1.2 Keyboard
(1) Entry system Rubber key pad
(2) Number of function keys 68 (including [ON/OFF] key)
(3) Key arrangement See Figure 1.1-2.
1.1.3 Display
(1) Display type Liquid crystal display (LCD) with a backlight
(2) Display composition 128 x 48 dots (Full graphics) + backlight
(3) Field-of-view angle adjustment Fixed
(4) Contrast adjustment For users: 5 degrees
For factory setting: 21 degrees
Unit: mm
70177
238

Brother P-Touch PT-2730 Specifications

General

Print technology	Thermal transfer
Vertical printing	Yes
Maximum resolution	180 x 180 DPI
Maximum print height	18 mm
Display	LCD
Product color	Black, White
Keyboard layout	QWERTY
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Connectivity technology	Wired
Tape size	24 mm
Dimensions (WxDxH)	177.8 x 238.7 x 71.1 mm
Battery type	AA
Battery technology	Alkaline
Number of batteries supported	8
Minimum RAM	128 MB
Minimum storage drive space	70 MB
Compatible operating systems	Windows XP, Windows Vista, Windows 7; Mac OS X 10.4.11 - 10.6.x
Tape type	TZ
Tape cutting	Automatic
Number of styles	11
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, Industrial 2/5, UPC-A, UPC-E
Ribbon length	8 m
Maximum label length	300 m

Weight and Dimensions

Depth	238.7 mm
Width	177.8 mm
Height	71.1 mm
Weight	861 g
