General Description
GETTING STARTED

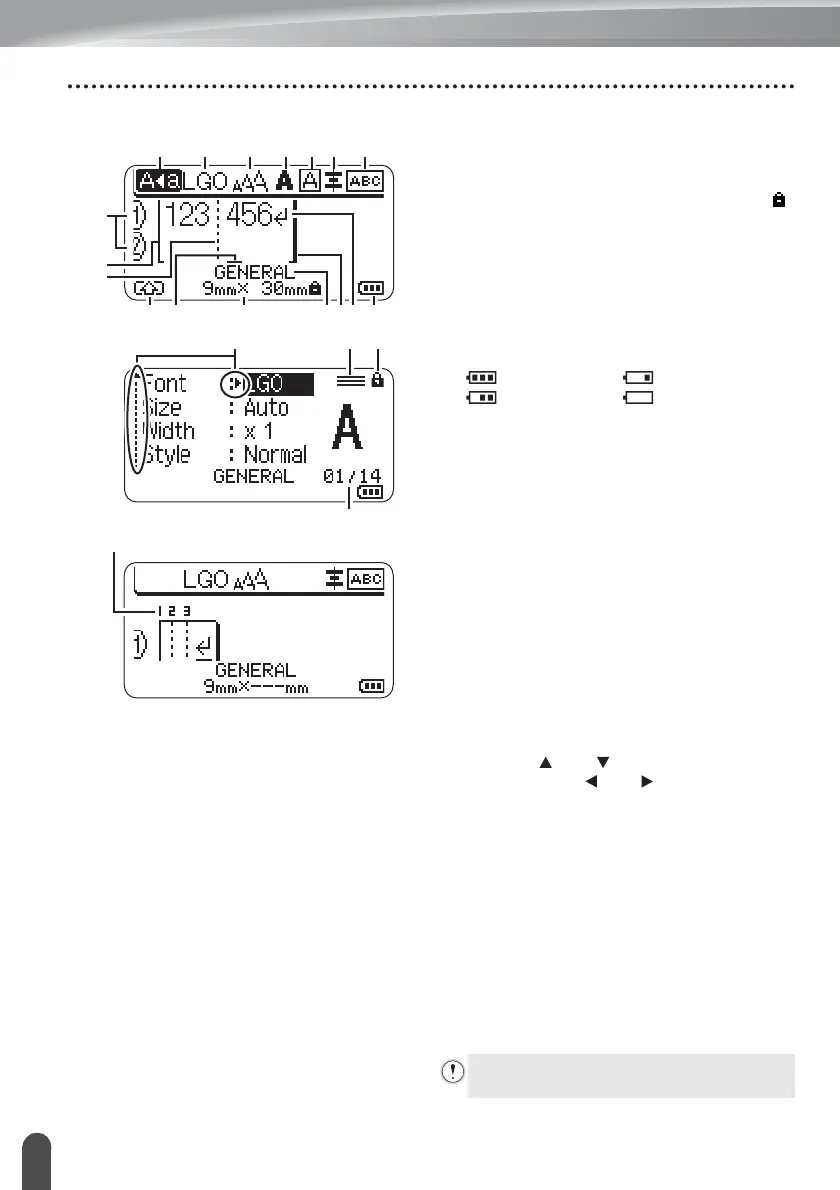

LCD Display
1. Line number
Indicates line number within the label
layout.
2. Shift Mode
Indicates shift mode is on.
3. Start Line / 4. End Line
The area between the start and end line
will be printed.
The short lines extending from the start/
end lines show the end of the label
layout.
5. Block Separator Line
Indicates the end of a block.
6. Cursor
Characters are entered to the left of the
cursor. Indicates the current data input
position.
7. Labeling Application Type
Indicates current labeling application
type.
8. Tape size
Indicates the tape size as follows for the
text entered:
Tape width x Label length
If the label length has been specified,
also appears on the right side of the tape
size.
9. Enter/Return symbol
Indicates the end of a line of text.
10. Battery Level
Indicates remaining battery level. It
displays only when using Li-ion battery.
11. Caps mode
Indicates that the Caps mode is on.
12.-16. Style guidance
Indicates the current font (12), character
size (13), character style (14), frame (15)
and alignment (16) settings.
The alignment guidance may not be
displayed depending on the selected
labeling application type.
17. Layout guidance
Indicates the orientation, layout,
separator, reverse, and repeated text
settings. The displayed items vary
according to the selected labeling
application type.
18. Cursor selection
Use the and keys to select menu
items and the and keys to change
the settings.
19. Specified line mark
Indicates that separate settings are
made for each line.
20. Lock mark
Indicates that some items cannot be
changed.
21. Counter
Indicates currently selected number/
selectable number.
22. Block Number
Indicates the block number.
6
11 12 13 14 15 17
5
2
3
47
10
16
9
1
8
Refer to "LCD Display" on page 30 for
changing.
