Brother P-Touch PT-E500 Quick Setup Guide

 GETTING STARTED
23

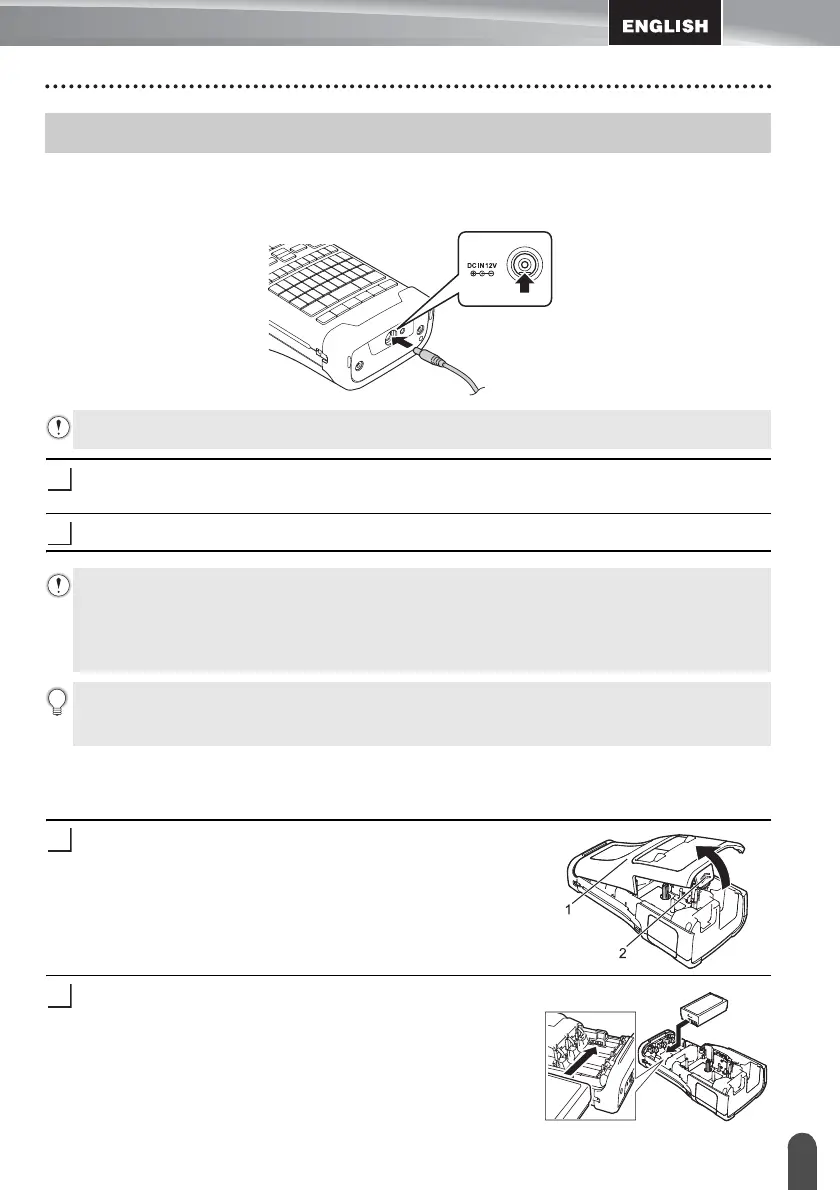

Power Supply
AC Adapter
Use the AD-E001 (AC adapter) for this P-touch labeling system. Connect the AC adapter
directly to the P-touch labeling system.
Insert the plug on the AC adapter cord into the connector marked DC IN 12V on the
P-touch labeling system.
Insert the AC adapter plug into a standard electrical outlet.
Rechargeable Li-ion Battery
 Installing the Rechargeable Li-ion Battery
Open the rear cover by pressing the cover latch.
1. Rear cover
2. Cover latch
Insert the rechargeable Li-ion battery into the battery
compartment.
Power Supply
The AD-18 or AD-24ES cannot be used.
1
2
• Turn the P-touch labeling system off before disconnecting the AC adapter.
• Do not pull or bend the AC adapter cord.
• When power is disconnected for more than two minutes, all text and format settings will be
cleared. Any text files stored in the memory will also be cleared.
• Downloaded symbols, templates and databases will be saved, even with no power available.
To safeguard and backup the P-touch labeling system's memory, when the AC adapter is
unplugged it is recommended to have rechargeable Li-ion batteries (BA-E001), AA-size alkaline
batteries (LR6) or Ni-MH rechargeable batteries (HR6) installed in the P-touch labeling system.
1
2

Brother P-Touch PT-E500 Specifications

General

Color	-
Print technology	Thermal transfer
Maximum resolution	180 x 180 DPI
Maximum print height	18 mm
Maximum printing width	24 mm
Display	LCD
Product color	Black, Orange
Backlight display	Yes
Display number of lines	3 lines
Display number of characters	16
Label type	3.5 / 6/9/12/18/24 mm (Tz), 5.8 / 8.8 / 11.7 / 17.7 / 23.6 mm (HSe)
Number of frames	7
Ethernet LAN	No
USB 2.0 ports quantity	1
Connectivity technology	Wired
Maximum label length	8 m
Tape type	TZe
Tape cutting	Automatic
Number of fonts	14
Number of styles	10
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, EAN128, EAN13, EAN8, GS1-128, ITF-25, UPC-A, UPC-E
Battery type	Built-in battery
Mac operating systems supported	Mac OS X 10.5 Leopard
Cables included	USB
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	250 mm
Width	126 mm
Height	94 mm
Weight	920 g
