BOAT RIGGING
REMOTE OIL TANK INSTALLATION (V4 – V6)
1

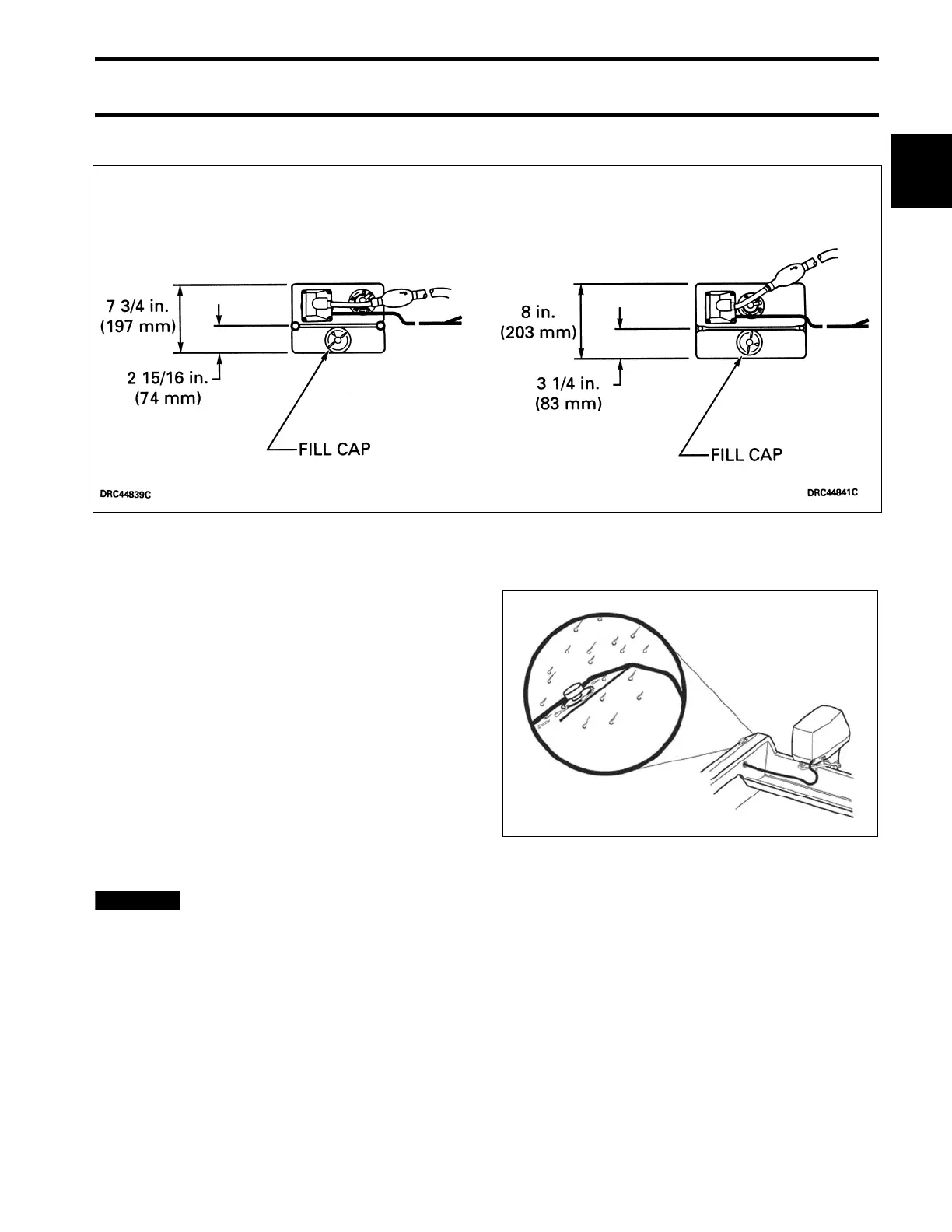

Oil Tank Profiles
Remote Oil Fill Kit (Optional)
The remot e oil fill kit (P/N 176461) provide s a
deck-mounted fill tube, cap, a tank-mounted tube,
and nut that replace t he origin al o il t ank cap
assembly.
Installation Recommendations
• Select a location on the de ck of the boat that is
above the oil tank fill cap.
• Select a deck location which allows the required
length of 1½ in. I.D. fill hose to route as directly
and as vertically as possible.
• Avoid inappropriate hose routin gs tha t cou ld
distort the fill tube or tank tube.
• Refer to installation instructions provided with
remote oil fill kit.
A slanted area of the deck will allow
water to drain away from the fill and is best
suited for the installation.
Additional Items Required
• 1½ in . I.D. fill hose cu t to required len gth. Fill
hose (P/N 1 23956) is available in 25 ft. (7.6 m)
lengths.
• Two corrosion r esistant 2 in. (50 mm) hose
clamps.
1.8 Gallon Tank
P/N 176995
3 Gallon Tank
P/N 176996
DRC8123
To Next Page
