OUTBOARD RIGGING
EVINRUDE E-TEC 90° V MODELS 200–300 HP
EVINRUDE E-TEC 90° V
MODELS 200–300 HP
Cable, Hose, and Wire Routing
Refer to Control Cable Identification on p. 51.
Remove two screws and bracket that fasten the
grommet to lower motor cover.
Route all hoses, control cables, and wiring
through a prot ective sleeve or cond uit in to the
boat and through the grommet.
The fuel h ose may b e routed through the protec-
tive sleeve or throu gh an alternate hole in the
lower motor cover grommet.
To route the fuel hose outside the sleeve, trim the
material covering the altern ate fuel hose slot in
the grommet.

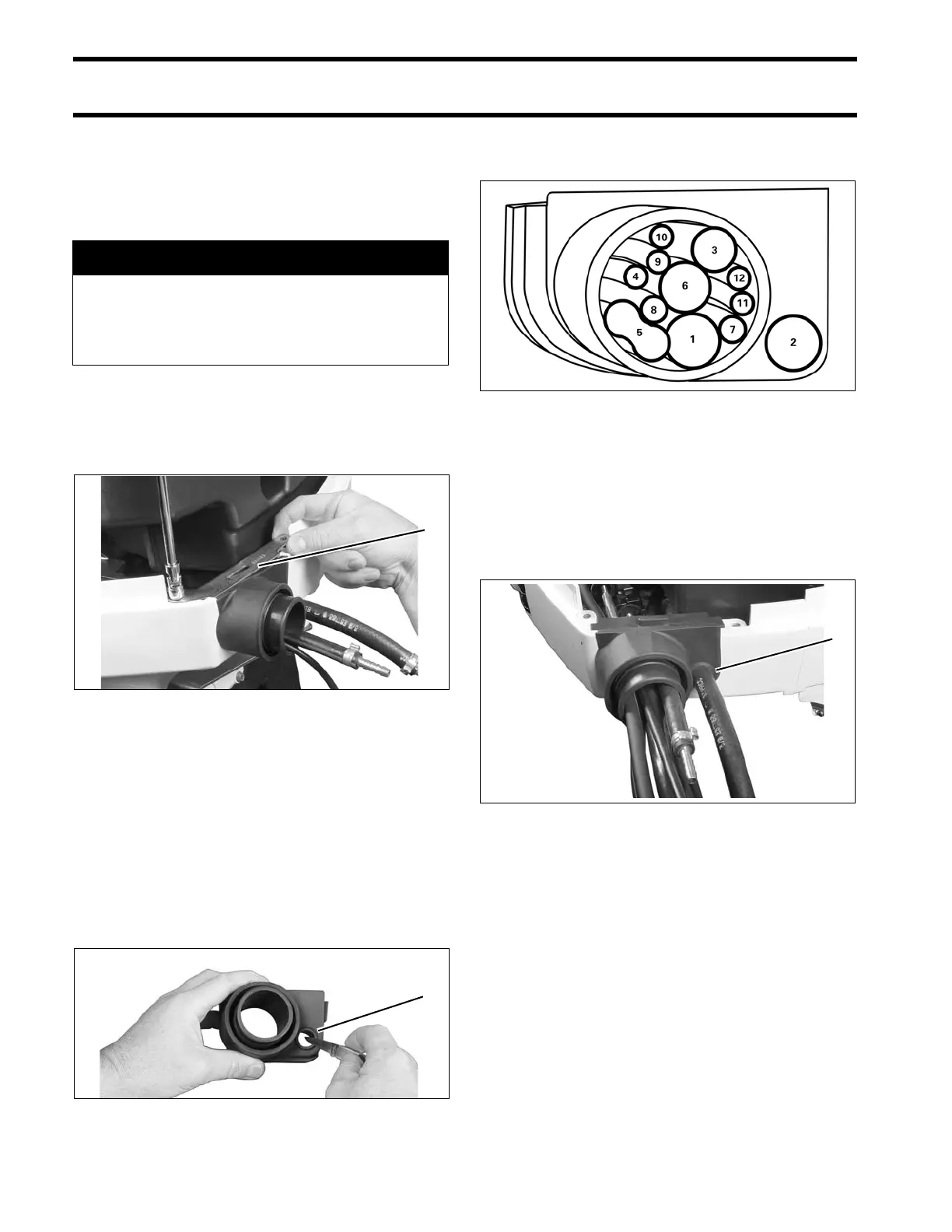

Refer to the following d iagram to ensure prop er
positioning of rigging components in grommet.
The main wiring ha rness, battery ca bles, oil tank
sending unit h arness, and any ICON or I-Com-
mand network cables should be rout ed along the
A CAUTION
To prevent accidental starting while servic-
ing, disconnect the battery cables at the
battery. Twist and remove all spark plug
leads.
1. Grommet retaining bracket 003964
1. Alternate fuel hose location 003970
1. Fuel supply hose
2. Fuel supply hose--alternate location
3. Oil supply hose
4. Oil tank sending unit harness
5. Battery cables
6. Main wire harness (MWS)
7. Shift cable
8. Throttle cable
9. Accessory charge wires
10. I-Command harness
11. Water pressure hose
12. Speedometer hose
000095B
1. Alternate fuel hose location 003971
