28
BOAT RIGGING
CABLE AND HOSE INSTALLATION
Oetiker Clamp Servicing
Clamp Identification
Use Oetiker clamps for making hose connections.
These clamps provide co rrosion resistance, mini-
mize the potential for ab rasion of rigg ing compo-
nents, and provide solid, permanent connections.
The selection and installation of an Oetiker clamp
is essential in the p roper sealing of h ose connec-
tions. The clamp identification numbers appear on
the side of the cla mp, near the top of the ear.
Refer to Clamp Selection chart for dimensions.
Clamp Selection
To select the correct size Oetiker clamp, measure
the outside diameter of the hose when installed on
the fitting.
Chose a clamp so that the outside diameter of the
hose is approximately in the middle of the clamp-
ing range of the clamp.
A WARNING
DO NOT re-use Oetiker clamps. Fuel leak-
age could contribute to a fire or explosion.

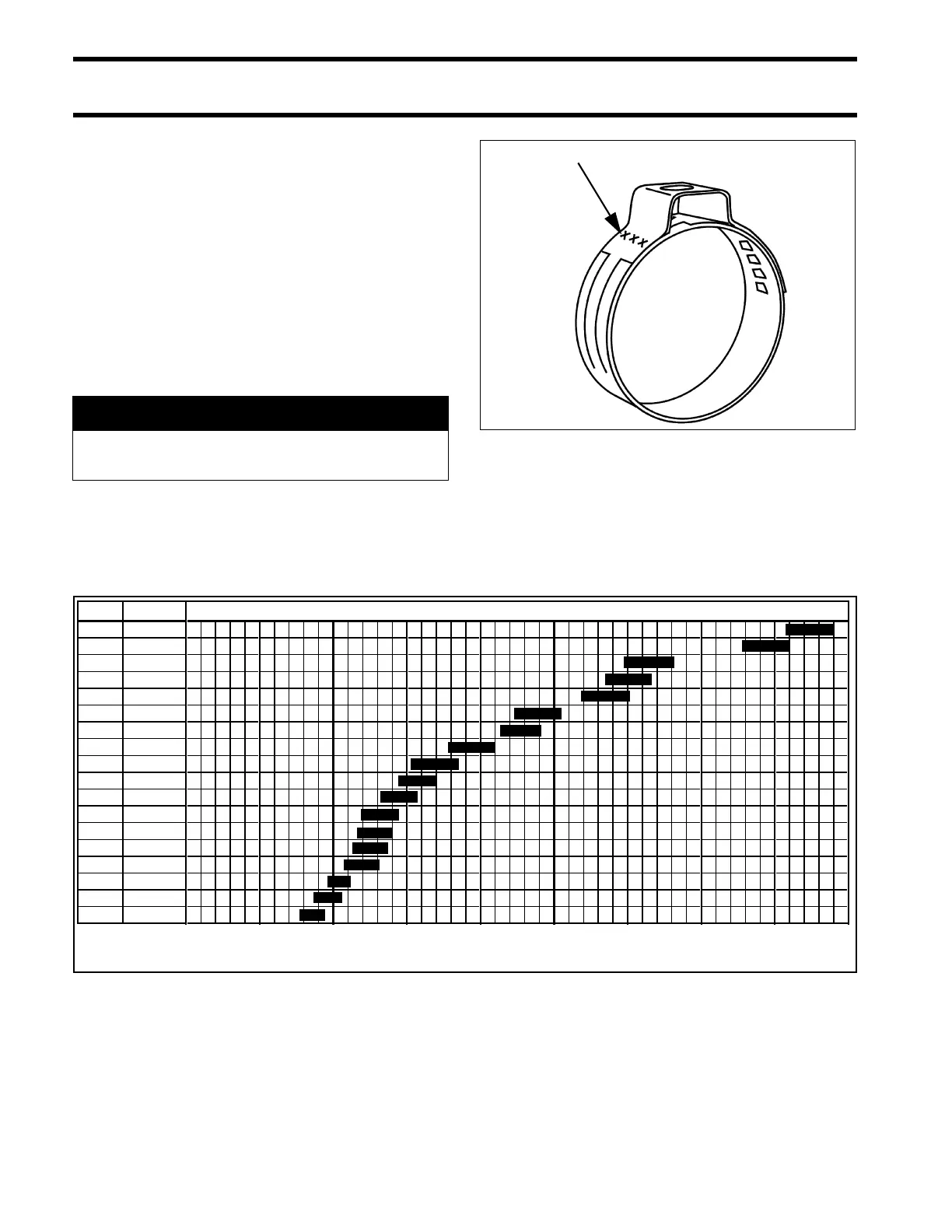

1. Clamp identification numbers 000093
1
.D.I
044
014
133
613
103
652
832
012
581
071
751
541
041
831
331
311
501
59
mm
hcni
1
esoH
retemaiD
0
N/P
011253
927943
533253
957943
351643
251643
307253
151643
051643
938843
687643
587643
139643
801743
701743
615943
838843
039643
egnaR gnipmalC
51 01 5
4/1
52 02
2/1 8/3
54 04
4/1-1 4/3
53 03
4/3-1 2/1-1
008458
