BOAT RIGGING
CABLE AND HOSE INSTALLATION
CABLE AND HOSE
INSTALLATION
Before in stallation, id entify all re quired wiring,
cables, and hoses:
• Throttle and shift cables
• Instrument harnesses
• Battery cables and switches
• Oil tank sender harness
• Fuel supply hose
• Primer bulb or primer pump
• Oil supply hose.
Determine whether any additional wiring or hoses
will be needed for accessory gauges or batteries:
• Speedometer pick-up hose
• Mechanical water pressure gauge hose
• Accessory battery charging kit
• I-Command adapter harnesses
• I-Command water pressure sensor kit
• I-Command oil level sensor kit.
Boat Cable and Harness Routing
Remote con trol ca bles, wiring, an d hose s must
follow a similar p ath into the lower motor co vers.
Select the best routing for the specific application.
All cables, wiring, and hoses must be long enough
to provide adequate slack. Check clearances at all
possible combinations of trim angles and steering
positions.

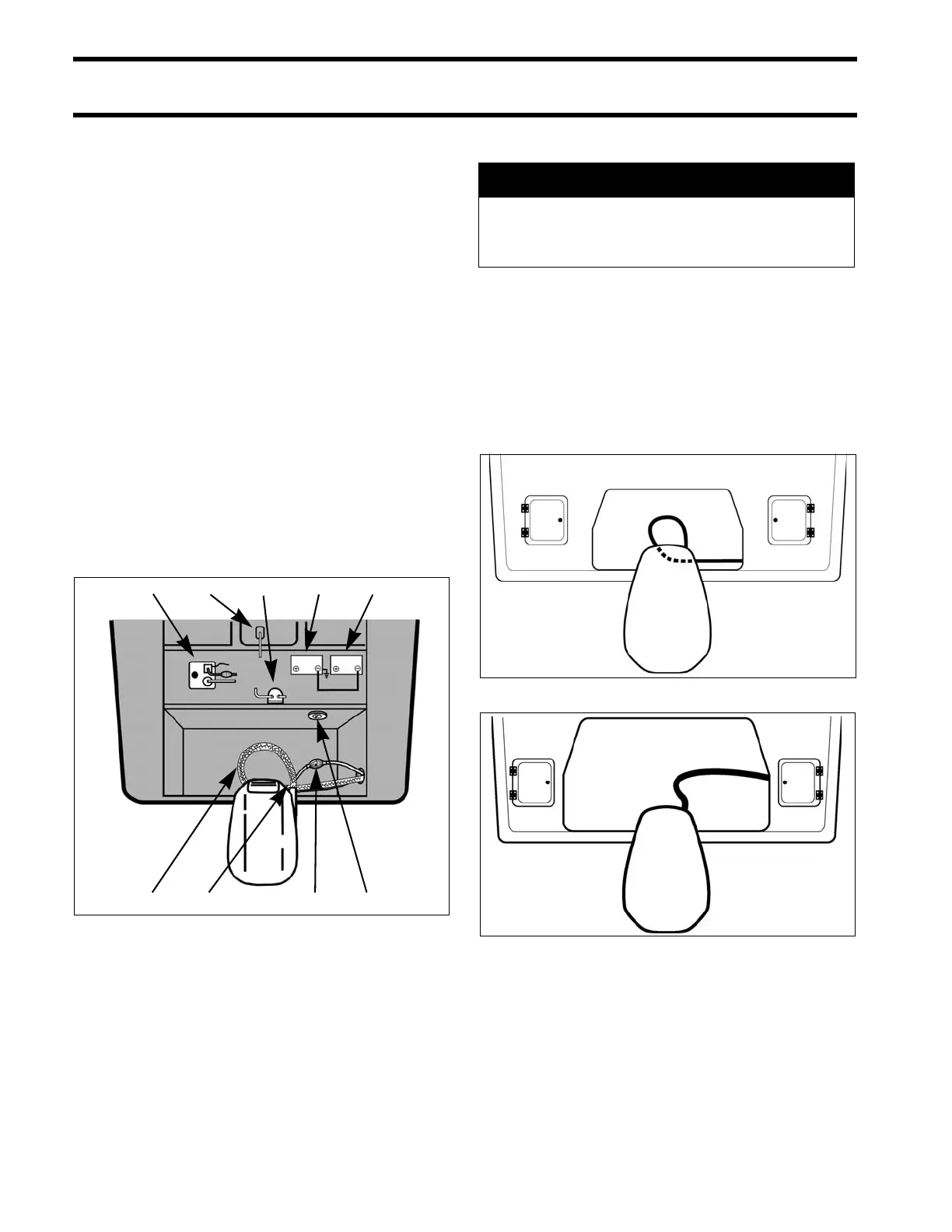

Typical outboard installation
1. Oil tank
2. Anti-siphon valve
3. Water separating fuel filter
4. Starting battery
5. Accessory battery
6. Flexweave protective sleeve
7. Access cover
8. Primer bulb
9. Battery switch
DRC6487
A WARNING
Improper installation and routing of out-
board controls could wear, bind, and dam-
age components, causing loss of control.
Typical Small Splash Well DRC7799
Typical Large Splash Well DRC7797
To Next Page
