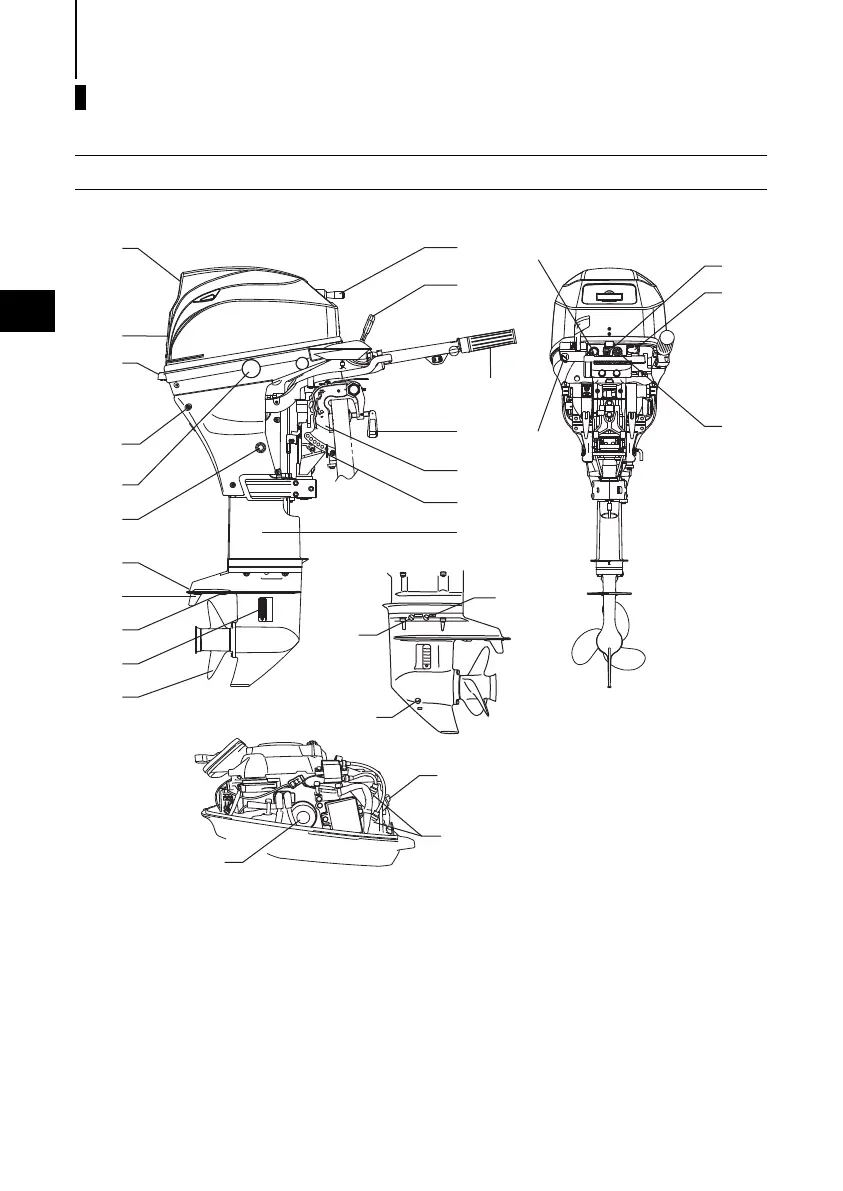

PARTS NAME
ENOM00303-BR
R, TE, E, TP, P
1
2
3
8
9
11
10
13
14
15
16
17
18
23
20
19
21
22
12
4
5
6
7
27
28
29
26
25
24
ENOF01202-0
1
Tilt Handle
2
Top Cowl
3
Bottom Cowl
4
Cooling Water Check Port
5
Power Tilt Switch
*1
(EPT and EFT type only)
6
Oil Drain Bolt
7
Anti Ventilation Plate
8
Anode/Trim Tab
9
Sub Water Inlet
10
Water Inlet
11
Propeller
12
Drive Shaft Housing
13
Thrust Rod
14
Clamp Bracket
15
Clamp Screw
16
Throttle Grip
*2
17
Shift Lever
*2
18
Starter Handle
19
Stop Switch
20
Warning Lamp
21
Fuel Connector
22
Starter Switch
*3
23
Choke Knob
*2
24
Water Plug
25
Oil Plug (Upper) (Level)
26
Oil Plug (Lower) (Fill)
27
Oil Filter
28
Spark Pulg
29
Oil Filter Cap
*1: Power tilt type only.
*2: Tiller handle type only.
*3: Electrical starter type only.
