INSTALLATION22
5
PTT type

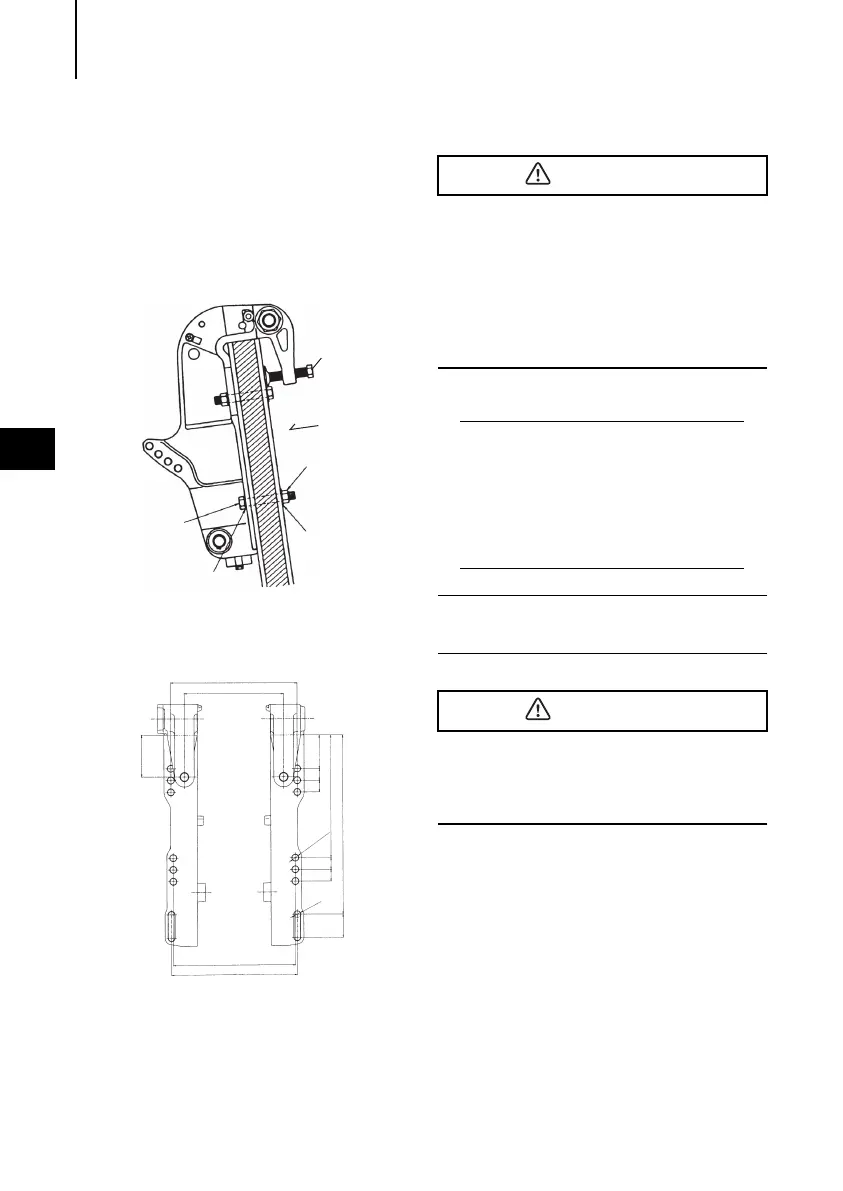

1. To attach the outboard motor to the
boat, use the bolts to secure the out-
board motor brackets on transom
board.
1. Bolt (12 × 105)
2. Washer (small diameter)
3. Nut
4. Washer (large diameter)
View A
ENOW00008-A
 Mounting bolts should be installed with
the bolt head at inside surface of the
transom. Mounting bolts installed with
the threaded end at the inside surface of
the transom can cause personal injury.
 Tighten the bolts sufficiency, otherwise
falling down of outboard could be hap-
pened.
ENON00003-0
Notes
1. Apply sealing agent, such as silicone
sealed between the bolts and the tran-
som board holes before tightening the
bolts.
2. Be sure to tighten the mounting bolt
nuts to the specified torque.
(30 Nm (3.0 kgf) 13 ft-lb)
ENOM00840-0
ENOW00100-A
Be careful not to loop the remote control
cables to a diameter of 406 mm (16 inches)
or less. Otherwise, it affects the service life
of the cable.
4
1
A
2
5
3
ENOF00308-0
193
187
275
188
64
36
1818
1818
51
194
152
∅
11
12-
∅
10
ENOF00305-0
CAUTION
2. Remote control device
installation
CAUTION
