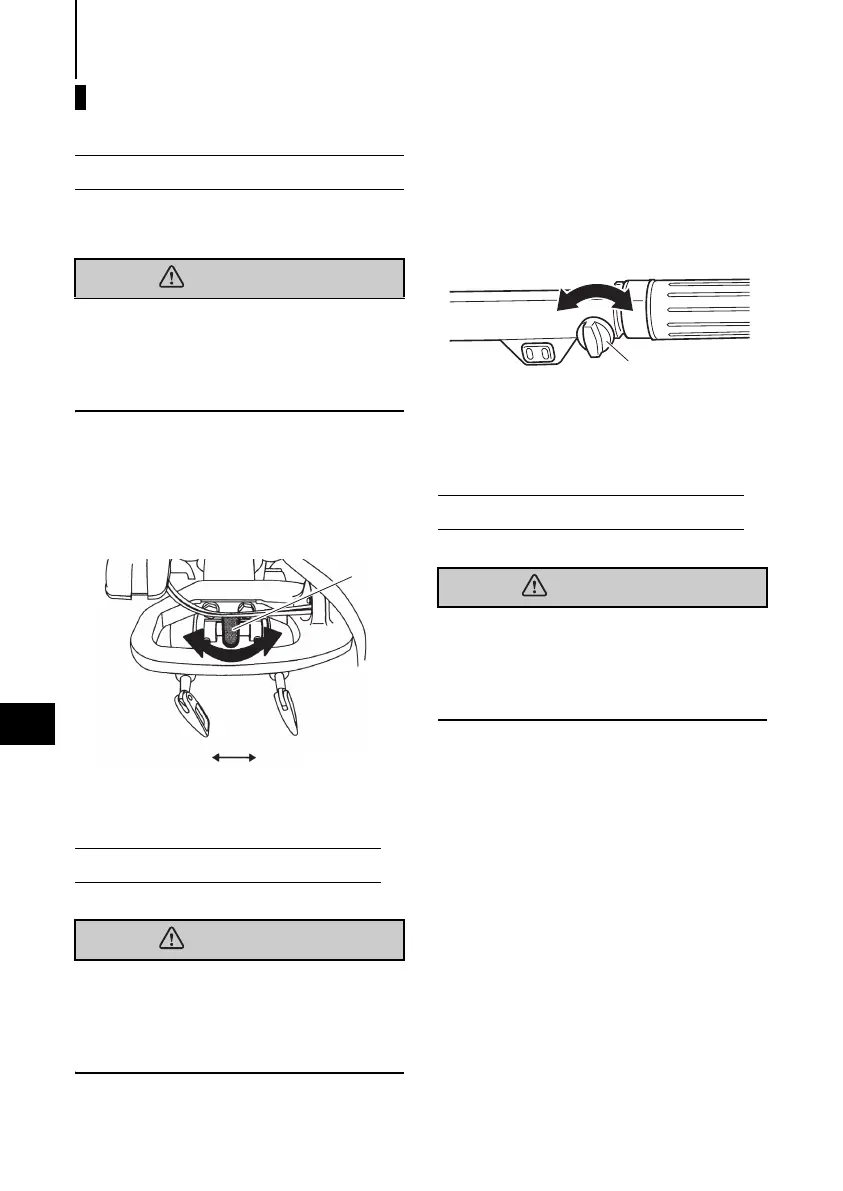

ADJUSTMENT
ENOM00073-0
Tiller handle type
ENOW00074-A
Do not overtighten the steering friction
lever it could result in difficulty of move-
ment resulting in the loss of control caus-
ing an accident and could lead to severe
injury.
Adjust this lever to achieve the desired
steering friction (drag) on the tiller handle.
Move lever towards (A) to tighten friction
and move lever towards (B) to loosen fric-
tion.
1. Steering friction lever
2. Heavier
3. Lighter
ENOM00074-A
ENOW00074-B
Do not overtighten the throttle adjustment
screw or it could result in difficulty of
movement resulting in the loss of control
causing an accident and could lead to
severe injury.
Friction adjustment of the throttle grip can
be made with the throttle adjustment
screw.
1. Steering friction lever
2. Heavier
3. Lighter
ENOM00075-0
ENOW00074-C
Do not overtighten the remote control
throttle friction adjustment screw or it
could result in difficulty of movement
resulting in the loss of control causing an
accident and could lead to severe injury.
To adjust the friction of the remote control
lever, turn the throttle friction adjustment
screw on the front of the remote control.
Turn clockwise to increase the friction and
counter-clockwise to decrease it.
1. Steering friction
WARNING
2. Throttle grip friction
WARNING
3. Remote control lever friction
WARNING
3 2
1
ENOF00330-0
