INSTALLATION 23
5
ENOW00850-0

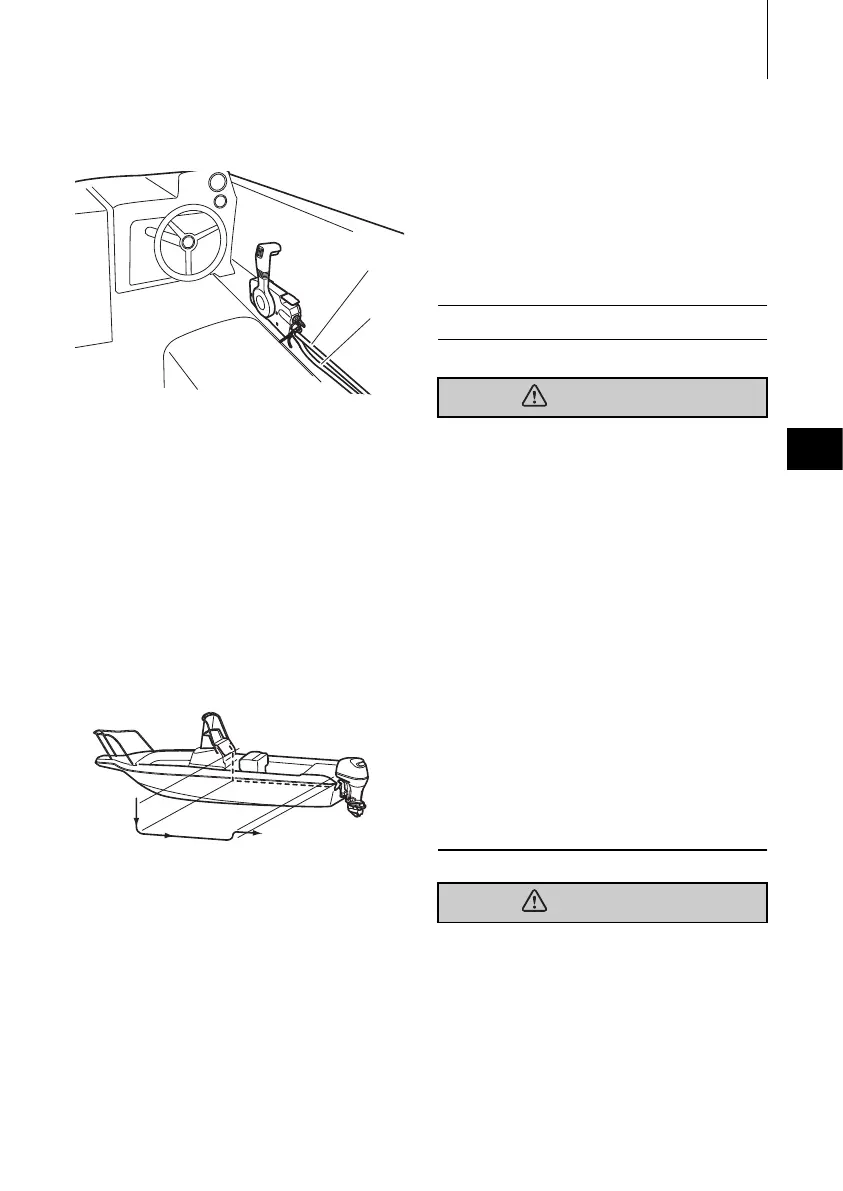

Remote control box location
Install the remote control box in a position
where it is easy to reach and operate the
controls.
Make sure there are no obstacles that can
interfere with the operation of the remote
control cable.
1. Shift cable
2. Throttle cable
3. Cable harness B
ENOW00850-0
Remote control cable length
Measure the distance from the remote
control box to the outboard motor where
the remote control cable should be routed.
Prepare a cable that is 300-450mm (11.8-
17.7in) longer than the measured distance.
Temporarily pull the cable along the
intended cable route to check its length is
sufficient.
Connect the remote control cable to the
engine, then run the cable to the remote
control box, making sure it is not sharply
bent, too taut and free from obstructions
that could interfere with steering.
ENOM00029-A
ENOW00012-0
Battery electrolyte contains sulfuric acid
and thus is hazardous, causing a burn if it
comes in contact with your skin, or poison-
ous if swallowed.
Keep battery and electrolyte away from
reach of children
When handling the battery, be sure to:
Read all warnings shown on the battery
case
Prevent electrolyte from coming in con-
tact with any part of your body. Contact
can cause serious burn or, if it comes in
contact with your eye, loss of sight. Use
safety glasses and rubber gloves.
In case battery electrolyte comes in con-
tact with:
Skin, flush thoroughly with water.
Eye, flush thoroughly with water, and
then seek immediate medical treatment.
In case battery electrolyte is swallowed:
Seek immediate medical treatment.
ENOW00013-A
Battery generates explosive hydrogen gas.
Be sure to:
Charge the battery in a well-ventilated
place.
Place the battery away from any source
of fire, sparks and open flames such as
burners or welding equipment.
ENOF00842-0
3. Battery installation
WARNING
WARNING
