ENGINE OPERATION48
7
ENOM00069-A

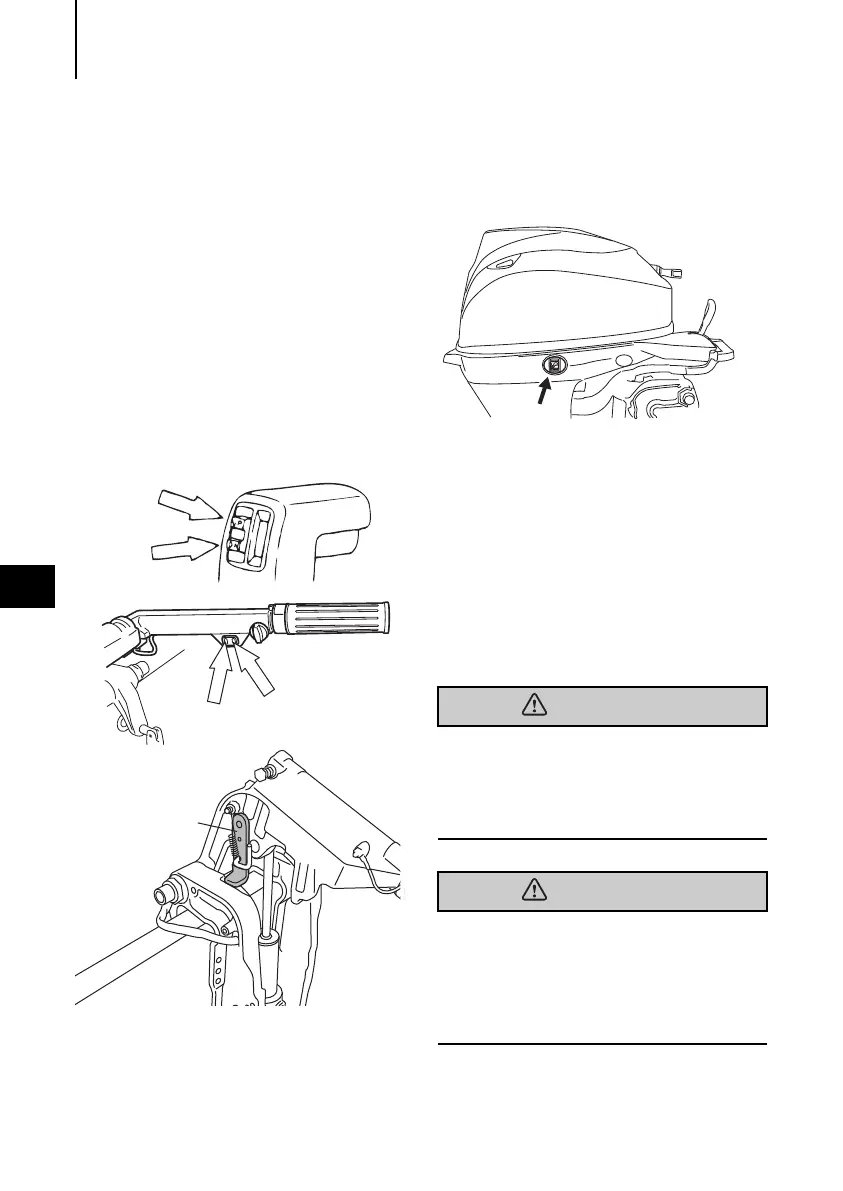

Power Tilt type
Tilt up
1. Operate the Power Tilt switch and tilt
the outboard motor up.
2. Lock the tilt with the Tilt stopper after
the outboard motor has been tilted up
Tilt down
1. Release the tilt stopper from the set-up
position while slightly tilting up out-
board motor.
2. Operate the Power Tilt switch and tilt
the outboard motor down until the
motor touches to the thrust rod.
1. Tilt stopper
The outboard motor can also be tilted up
and down using the switch provided under
the bottom cowl.
It is possible to tilt up or down in spite of
main switch “ON” or “OFF”.
ENOM00940-0
Manual relief valve
If the battery is dead, and the power tilt
switch thus inoperative, open the manual
valve completely in the Manual direction.
This will allow manual tilting of the out-
board motor.
ENOW00872-0
Make sure the manual relief valve is closed
before operating the outboard motor. If the
manual relief valve is not closed, the out-
board motor will tilt up when operated in
reverse.
ENOW00873-0
Before opening the manual relief valve,
make sure nobody is under the outboard
motor. If the outboard motor is in the tilted
up position, it will tilt down suddenly if the
manual relief valve is loosened in the "Man-
ual" direction.
UP
UP
DN
DN
ENOF00067-C
1
ENOF00069-A
WARNING
WARNING
ENOF01217-0
