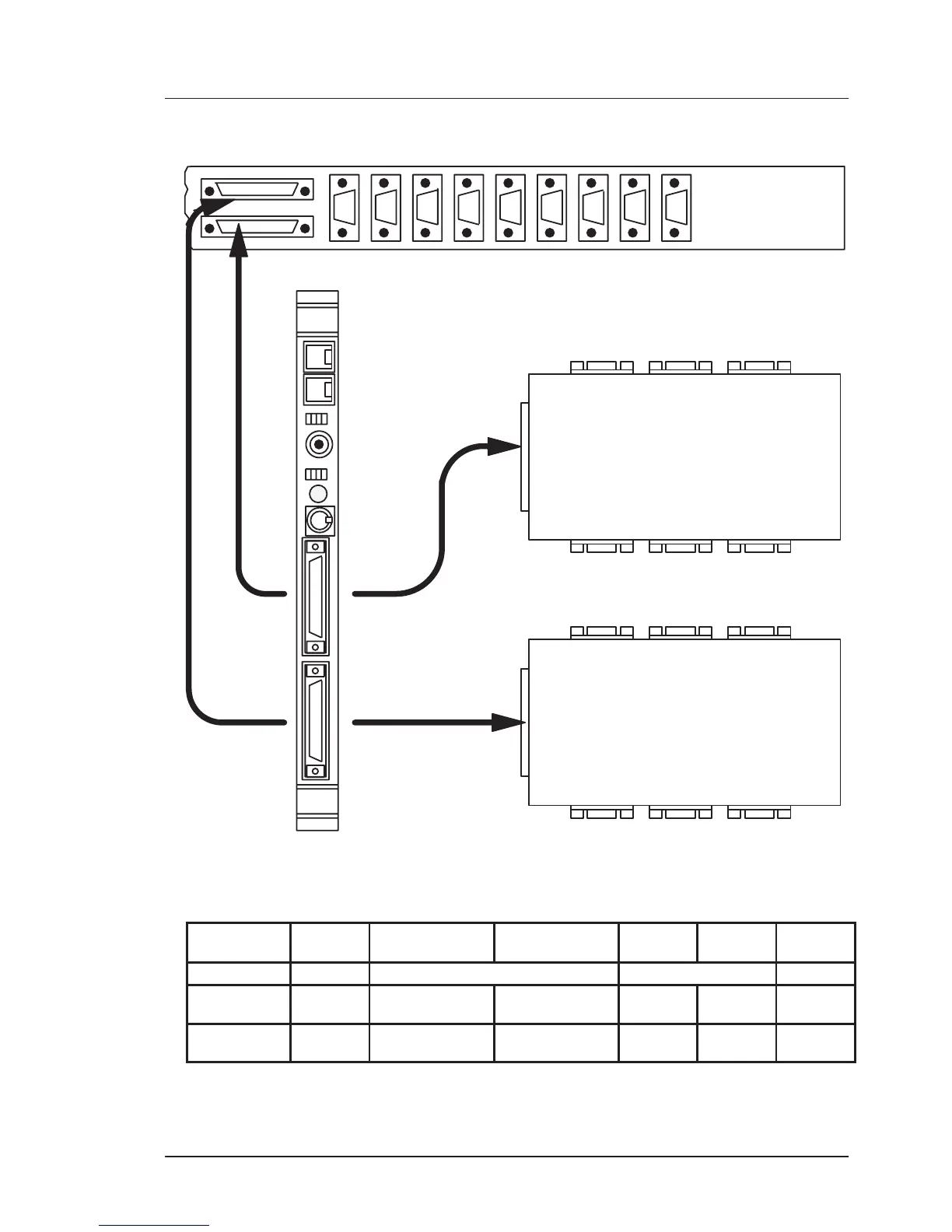

Figure 4: CU 10 Attaching SubD connectors to the RS232 interfaces
AQS RS232 Extension Unit P/N H9508
AspectStation1 RS232 Router P/N H5468
AspectStation1 RS232 Router P/N H5468
AQS CCU/10
P/N H9503, EC00
"console"
(tty00)
ST7
ST8
ST9
"tty01,...,tty05"
"tty06,...,tty09"
tty01 tty02
tty03
tty04
tty05 tty06
tty07 tty08
tty09
tty01 tty02
tty03
tty04tty05not used
not used CAN
tty06
tty07
tty08
tty09
Connections made with
SCSI Cable P/N 73104
Thin wire Ethernet
BNC Connector
RJ45 Connector
to other Hosts (St5)
RJ45 Connector
to HUB (St4)
Fast Ethernet Link Status
Table 7: CU10 Configuration of Serial Interfaces
UNIX
Special File
/dev/tty00 /dev/tty01,...,05 /dev/tty06,...,09 /dev/tty10 /dev/tty20 /dev/can
Function (Console) RS232 RS485 CAN Bus
CCU
Connector
ST6 ST7 ST8 ST2 ST2 ST8
AQS Ext. U.
Connector
N/A ST2,...,ST6 ST7,...,ST10 N/A N/A N/A
