Bruker DektakXT - Page 16

11

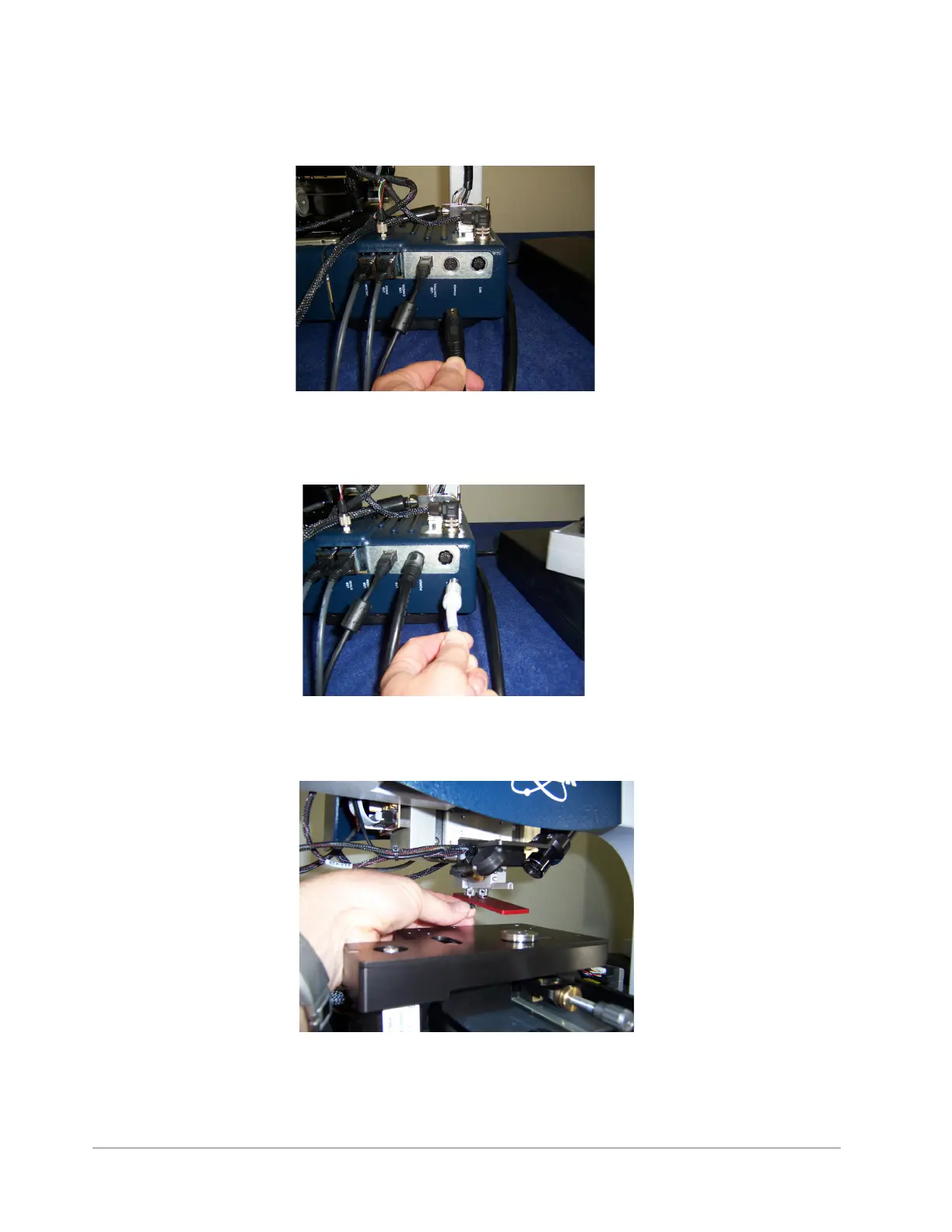

10 Attach the round connector to the power connector on the tool. Take care to rotate the connector properly,
so that the key fits.
11 The last cable is the tan-colored one that is attached to the EMO box. Plug it in and then return to the front
of the tool.
12 You will see a flat red plate above the stage This is the shipping bracket for the sensor head. Loosen the
two thumb screws and remove the plate.
