Bruker InsightMR - Figure 6.23: Configuring the Automation Window; Figure 6.24: Selecting the Solvent and Probe Dependencies

Flow Unit Installation
H155936_3_003 35
Automation / Automation Window
The Easy Setup Mode should be checked.

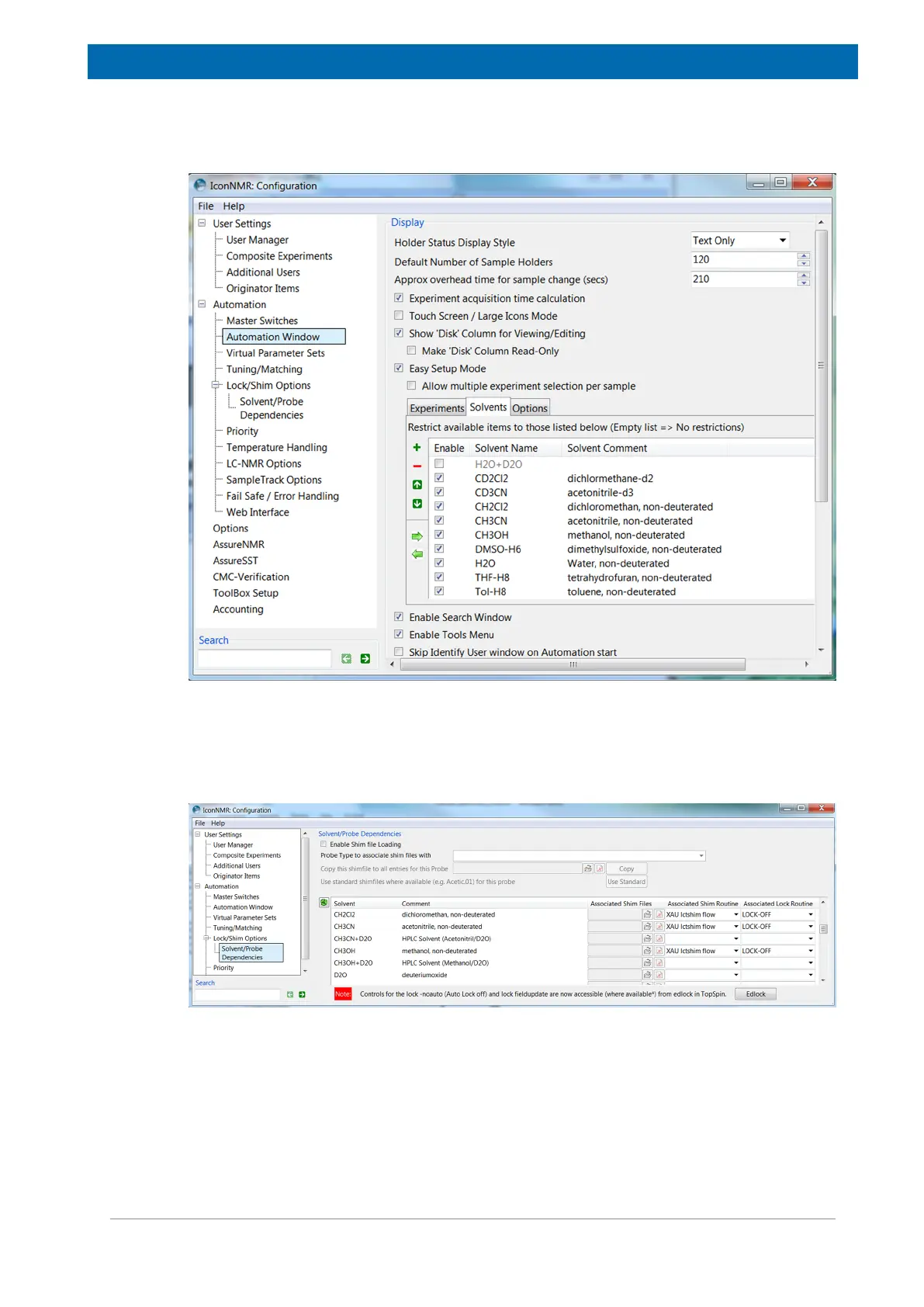

Figure6.23: Configuring the Automation Window
Automation/Solvent/Probe Dependencies
Non deuterated solvents must have XAU lctshim flow and LOCK-OFF as Associated Shim
and Lock Routine respectively.
Figure6.24: Selecting the Solvent and Probe Dependencies
