InsightMR Glass Flow Tube Exchange Instructions
H155936_3_003 49
10 InsightMR Glass Flow Tube
Exchange Instructions
10.1 Removing the Glass Flow Tube
Note: Use lint free gloves to keep the glass flow tube clean.
Important: Be aware that the glass flow tube is made out of thin walled glass and is very
fragile! Take all required precautions to avoid breakages and injuries. Avoid scratches or dirt
on the surface or inside the glass flow tube.

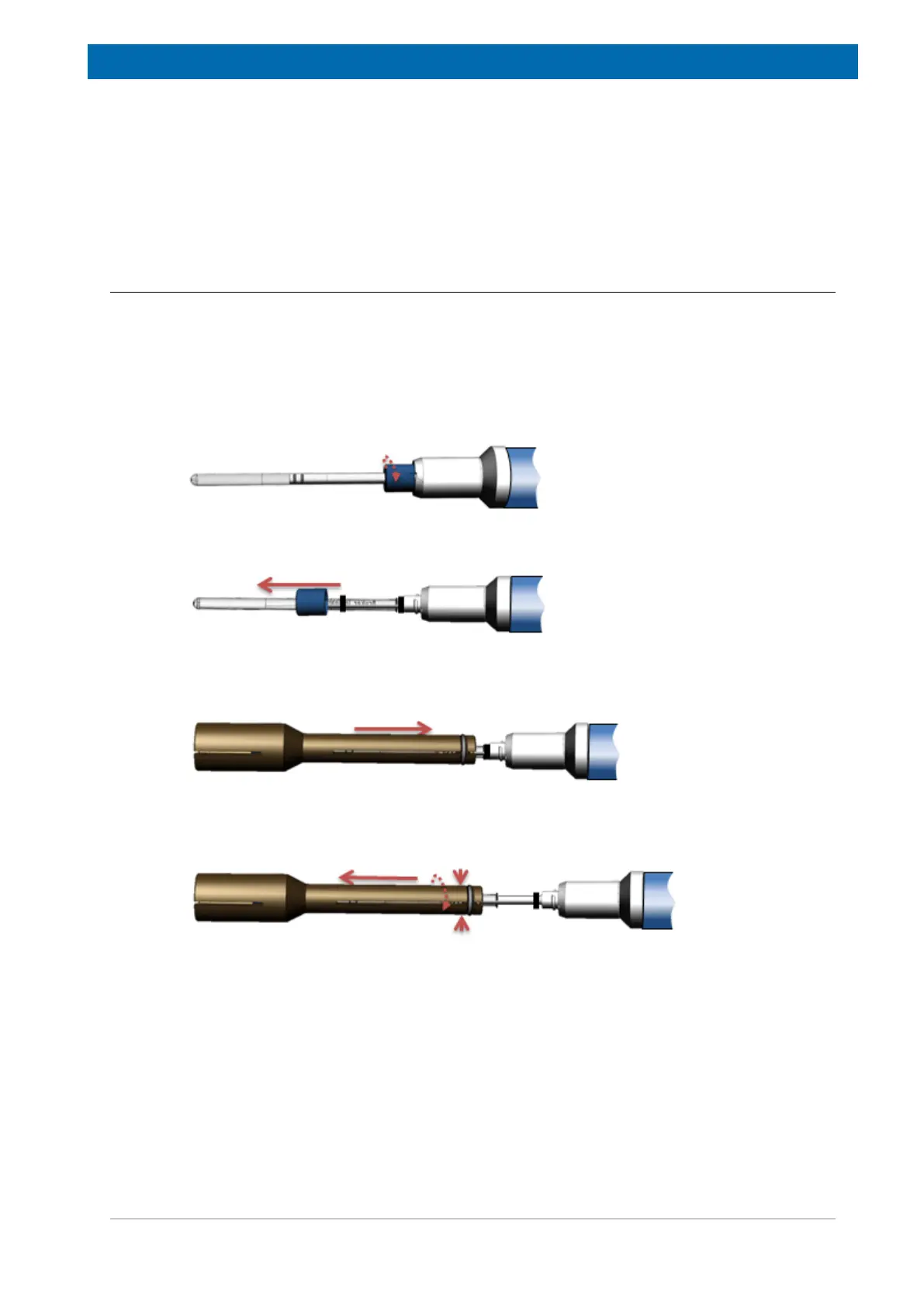

Follow these instructions to safely remove the glass flow tube from the tube holder:
• Turn the twist cap 90°.
• Pull it off the glass flow tube together with the O-ring 5x1.
• Use the flow tube protector to pull the glass flow tube off the tube holder. Slide it with the
O-ring in front, close to the glass flow tube.
• Squeeze the flow tube protector gently at the front: turn it a bit and pull the glass flow tube
straight off. Avoid bending the rod of the tube holder, as the tube may break.
• Inspect the two O-rings 5x1 looking for damage. Replace them if it is required.
To Next Page
