LYNXEYE XE Detector User Manual
DOC-M88-EXX240 V1 – 03.2014 5-9

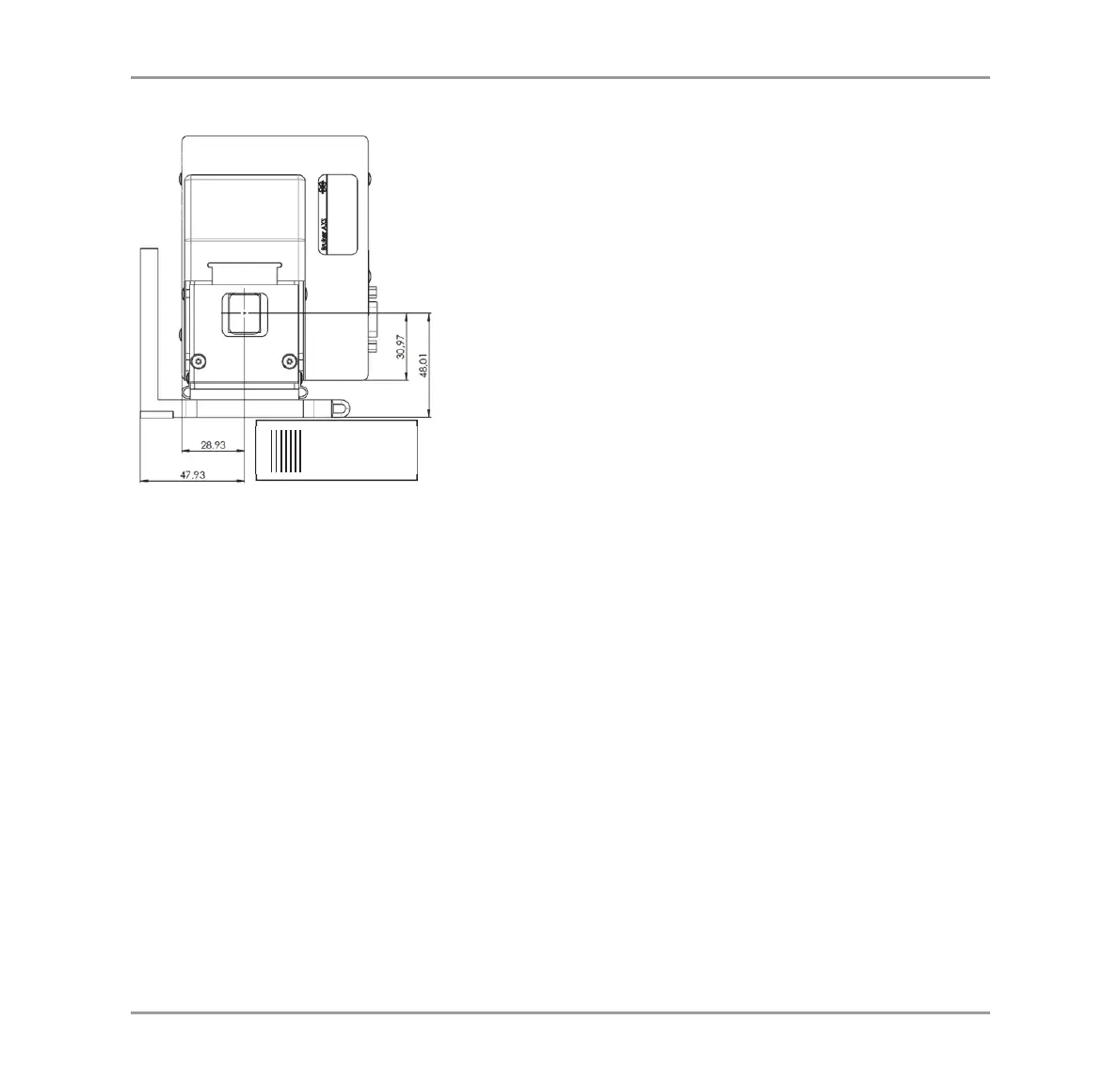

Figure 5.9: Detector center and sensor strip orientation
5. Move the 2-theta drive through the complete range to make sure the detector moves freely and is
not restricted by the cables.
5.3.3 OpCo Registration of Additional Components
All parts coming with the delivery are registered and ready for use. It is assumed that all components
are burned correctly.
The two positions for optical elements in front of the detector are represented in the configuration by a
‘DetectorOpticsMount1 and 2’ and their associated ‘EmptyPositionDOM1 and 2’.
The optics components itself are collected in two containers ‘DetectorOptics /Slit and Soller. ‘Slits’
holds all Slits, Filters and Absorbers, ‘Soller’ all Sollers.
