Technical Data MS 400‘89 Ascend DNP

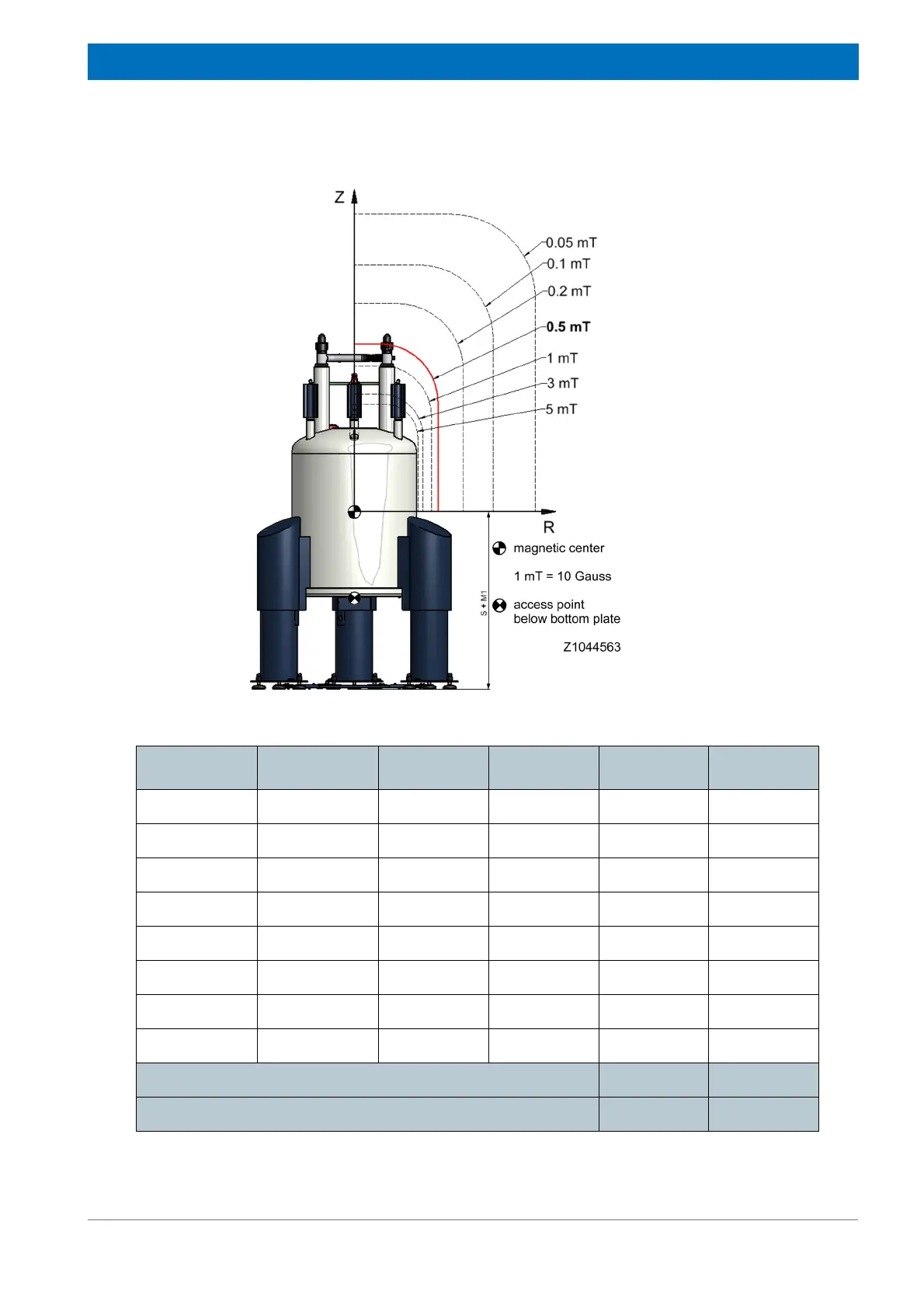

Fringe Field Plot
Figure A.9: Fringe Field Plot
Fringe Field Unit R max Unit Z max Unit
200 mT 0.26 m 0.42 m
5.0 mT 0.54 m 0.82 m
3.0 mT 0.62 m 0.92 m
1.0 mT 0.87 m 1.23 m
0.5 mT 1.10 m 1.50 m
0.2 mT 1.52 m 1.99 m
0.1 mT 1.93 m 2.47 m
0.05 mT 2.45 m 3.09 m
max magnetic field B0 at access point 418 mT
max field gradient dB/dz at access point 6.9 T/m
Table A.10: Fringe Field Values
