BSWA 308 - Time History; Octave; Custom Measure

BSWA 308/309 BSWA Technology Co., Ltd
42

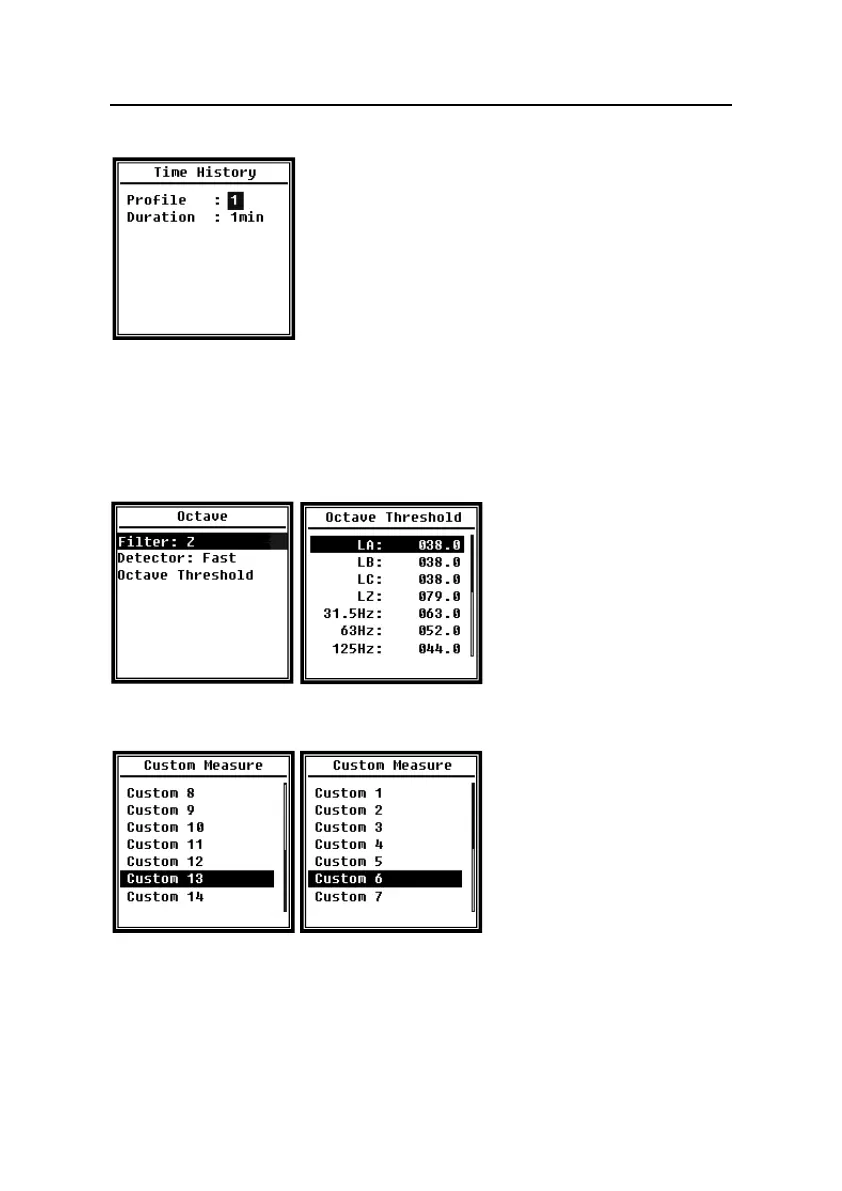

4.3.8 Time History
Press <▲>, <▼> can set the data source and duration time of
Time History.
Profile:
Press <◄>, <►> can set the data source of time history: Profile1, Profile 2, Profile 3.
Duration:
Press <◄>, <►> can set the timeline of time history: 1min, 2min, 10min.
4.3.9 Octave
Menu of Octave can set filter and
detector before octave calculation
and the alarm threshold of each
octave band, LA, LB, LC, LZ. If
the measurement result exceeds
the threshold, the LED indicator
will turn red. Press <◄>, <►> can set the option to 0.1dB~199.9dB.
4.3.10 Custom Measure
There are 14 items in menu of
Custom Measure which can set
the parameters of group 1~14
custom measurement. Press <▲>,
< ▼ > can choose and select,
press <Enter> to access next
level of menu.
