BSWA 308/309 BSWA Technology Co., Ltd
28

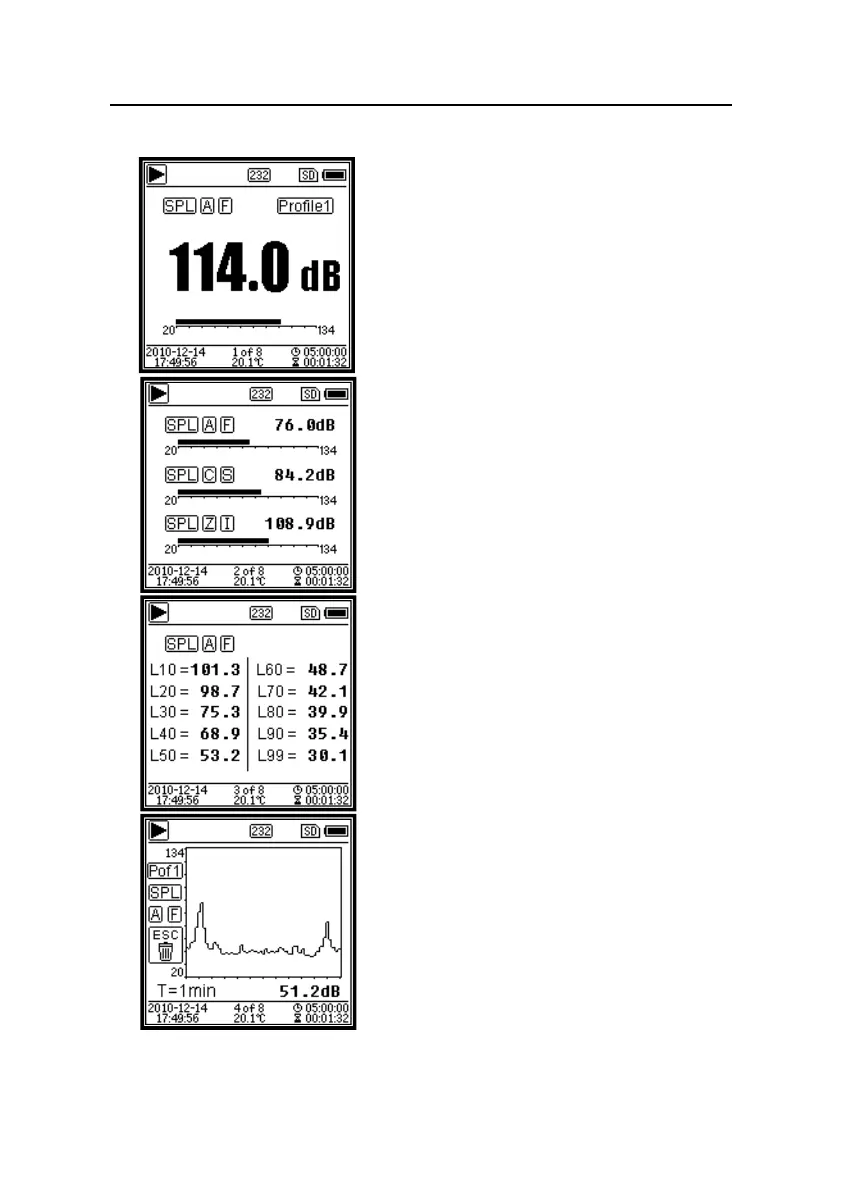

3.2 Screen of Level Meter Mode
Main screen. Display the measurement
data, filter, detector, mode and Profile
number. Main screen only display one
group data of 3-Profile. Press <▲>,
<▼> to switch within 3-Profile.
3-Profile. Display the data and
corresponding mode, filter and detector
of 3-Profile measurement at the same
time. 3-Profile data can be saved into
SWN file.
LN Statistical. Display 10 groups of
statistical results. Each group of data
sources (fix mode to SPL, filter and
detector can be customize) and the
percentage value can be set through
the menu.
Time History. Display the current noise
value and time domain curve. The data
sources (one of 3-Profile) and the
time-line length (1min, 2min and 10min)
can be customize.
Press <ESC> to clear the screen and
re-display the curve.
