★Note: Repeat Period must greater than total integral time (Itg.Period x Repeat) +5s,
since there is fixed 3s delay for Timer triggered measurement and another 2s is needed
before the delay. It is forbidden to change the settings when the Timer is working. Otherwise,
there will be something wrong with the Timer.
4.3.12 24h Measurement by Timer
User can use the Timer to implement 24-hour-measurement. Following description show an
example of how to implement the 24-hour -measurement.

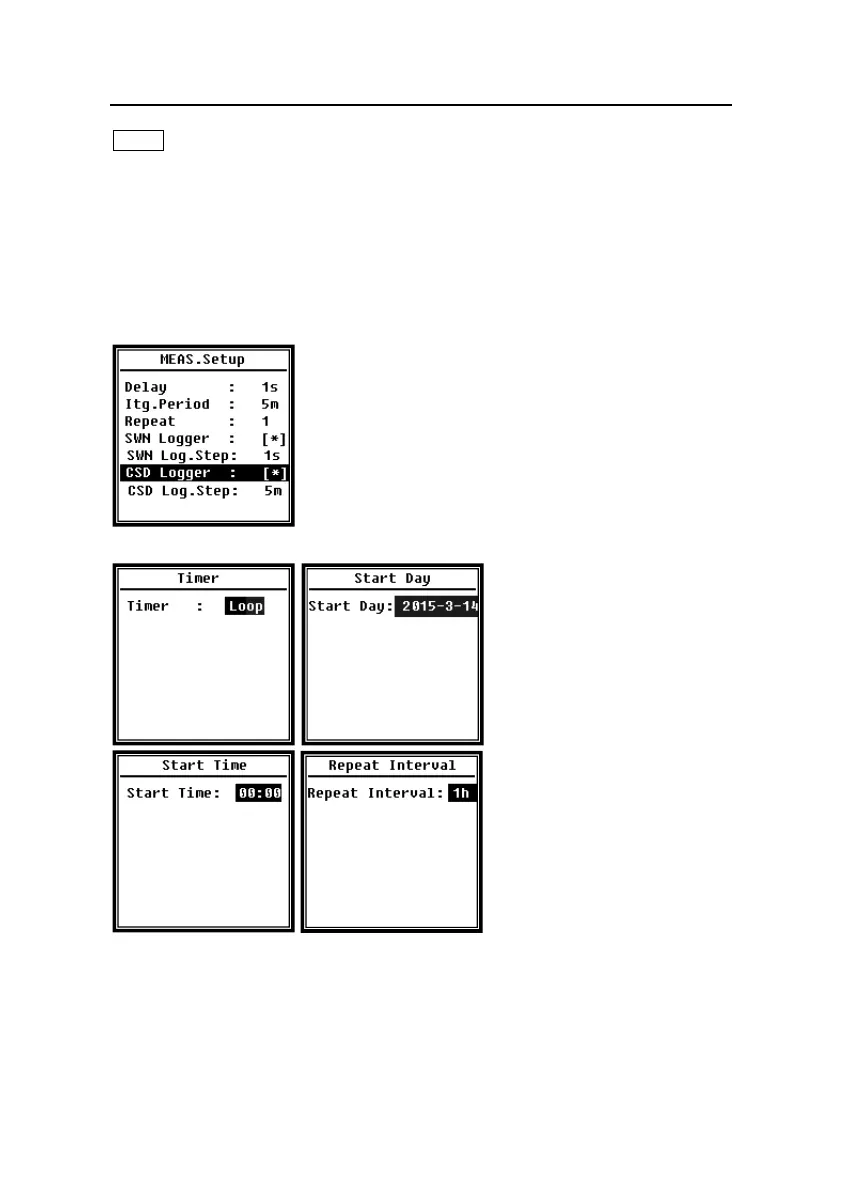

Purpose: The measurement will be first start at 2015/3/14
00:00, measure first 5m of each hour. It will store CSD file
when the stop measurement and store SWN file every second.
Delay setting in the MEAS.Setup will be ignored if the
measurement is triggered by Timer. Set Itg.Period as 5m and
set Repeat as 1. Enable the SWN Logger and CSD Logger.
Set the SWN Log.Step to 1s and set the CSD Log.Step to 5min.
Set the Timer work at Loop mode,
so that the measurement will be
triggering all the time.
Set the Start Day as the wanted
date.
Set the Start Time to 00:00 which
means the first time of
measurement to be triggered.
Set the Repeat Interval to 1h, so
that the measurement will be
triggering each hour.
