Moving the boiler5
5 Moving the boiler
This chapter describes how to move the boiler safely,
5.1 Moving the boiler with boiler cart
z The boiler must be fully packed for transport to the
installation location.
z Remove the straps and the cardboard packaging.
z Remove the bolts from the pallet.
z Lift the boiler at the sides and slide to the edge of the
pallet. Place a pipe under the boiler
(Fig. 4) and roll it
on additional pipes to the installation location.
z Place the boiler in its final position.
CAUTION!
SYSTEM DAMAGE
due to bumps.
z Check the transport diagrams on the
packaging to protect the sensitive
components from damage by bumping.
USER NOTE
z Protect the boiler connections from dirt
if the boiler is not installed immediately.
USER NOTE
Dispose of the packaging material in an
environmentally compatible fashion.

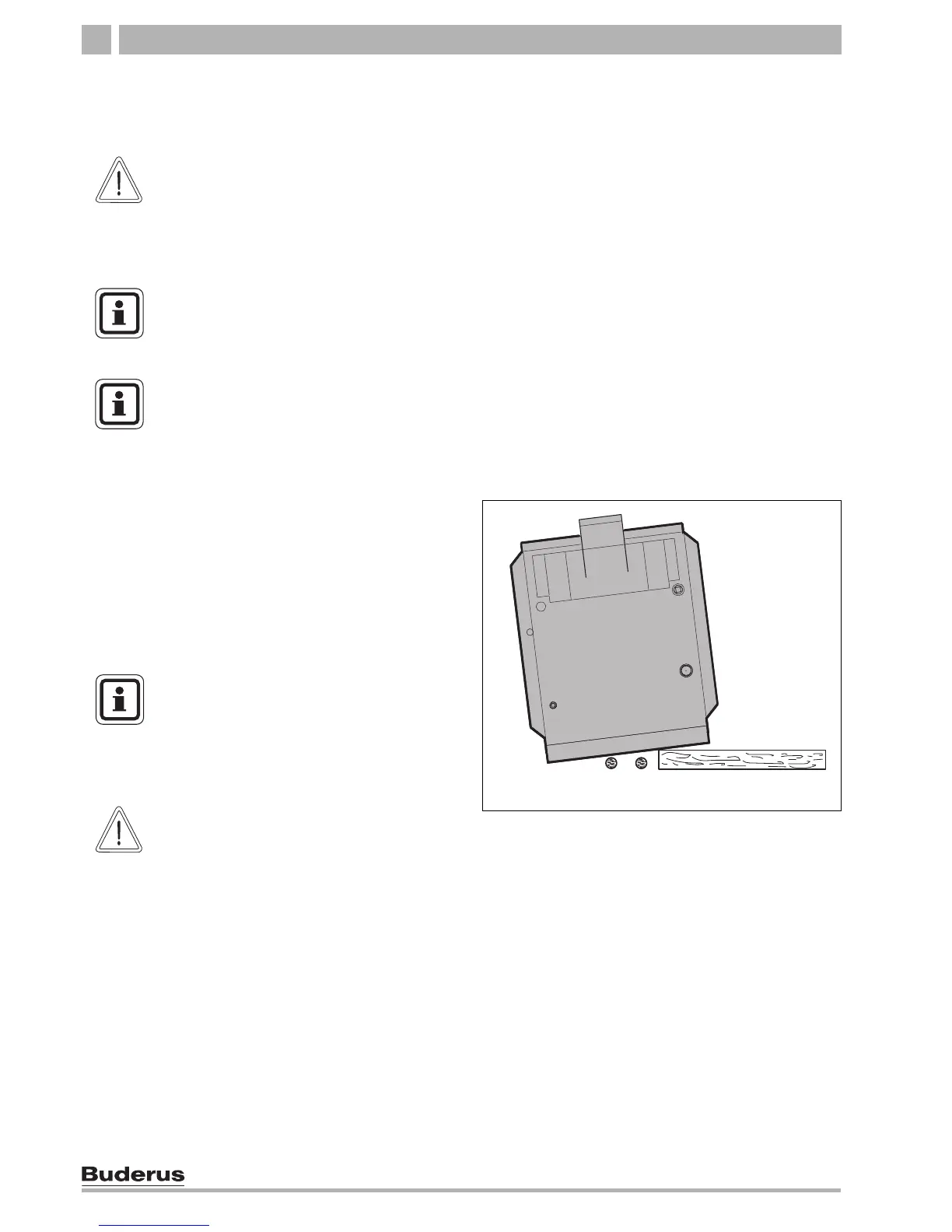

Fig. 4 Moving the boiler
USER NOTE
Make sure that all sheet metal parts, pipe
connections, burners and the controller
are protected during transport.
z Never lift the boiler by these parts.
CAUTION!
RISK OF INJURY
if the boiler is not properly secured to the
trolley.
z Use suitable transport equipment, such
as a trolley with a belt.
z Secure the boiler to prevent it from
falling.
