Wiring diagrams 16
67
We reserve the right to make any changes due to technical modifications.
Installation and maintenance instructions Logano G334 X gas-fired boiler • Issue 09/2005
16 Wiring diagrams

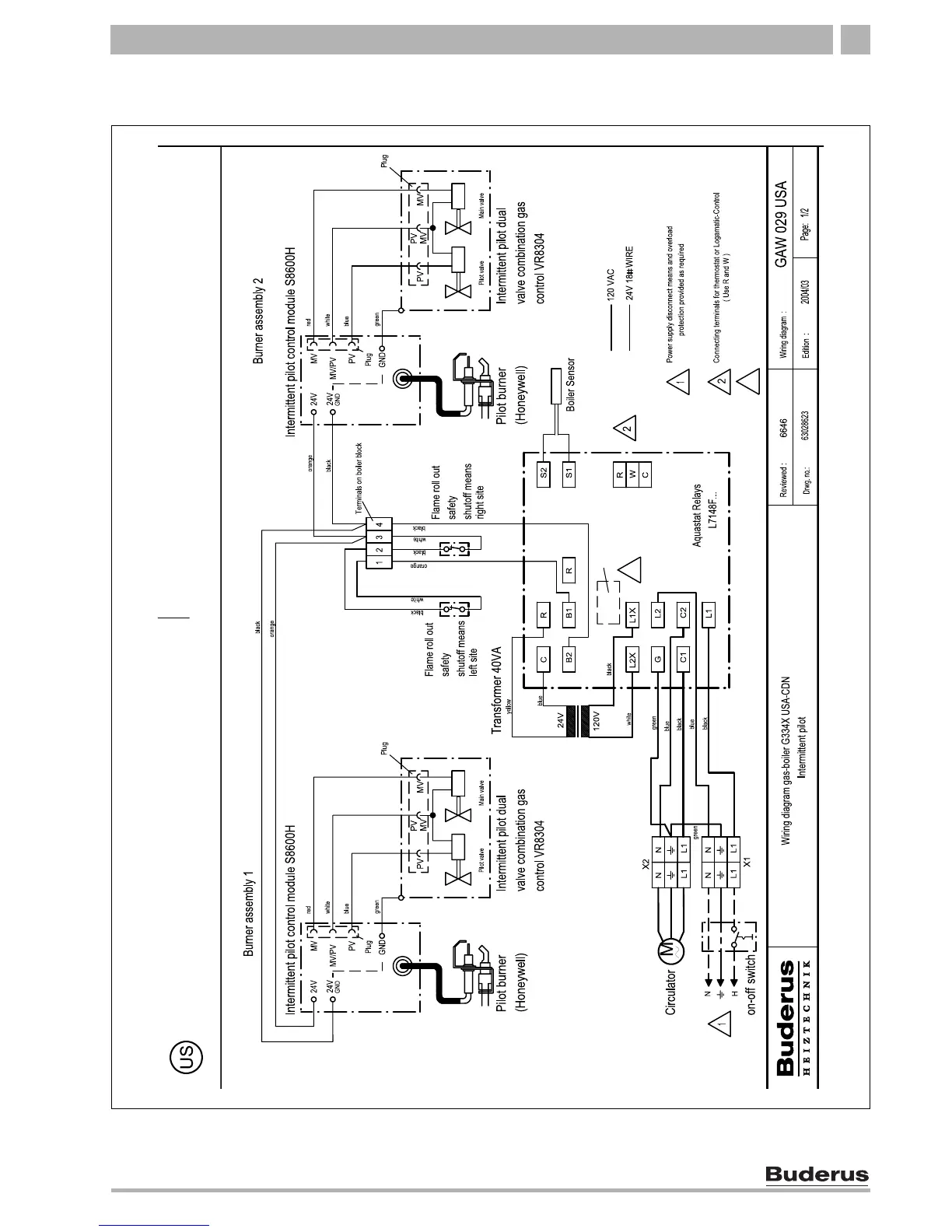

Fig. 52 Wiring diagram – G334 X
Remove molex connector from aquastat and plug in vent damper
3
Optional Vent
Damper Plug
3
