Product description 2
7
We reserve the right to make any changes due to technical modifications.
Installation and maintenance instructions Logano G334 X gas-fired boiler • Issue 09/2005
2 Product description
The boiler is a low temperature gas-fired boiler.
The boiler consists of:
Automatic ignition unit and aquastat
Logamatic 2107 control (accessory for separate
order)
Boiler jacket and front panel
Boiler block with insulation
Burner
The automatic igniter, the aquastat and, if applicable,
the Logamatic 2107 monitor and control all electrical
components of the boiler.
The boiler jacket prevents energy loss and acts as
soundproofing.
The boiler block transfers the heat generated by the
burner to the heater water. The insulation prevents
stand-by losses.

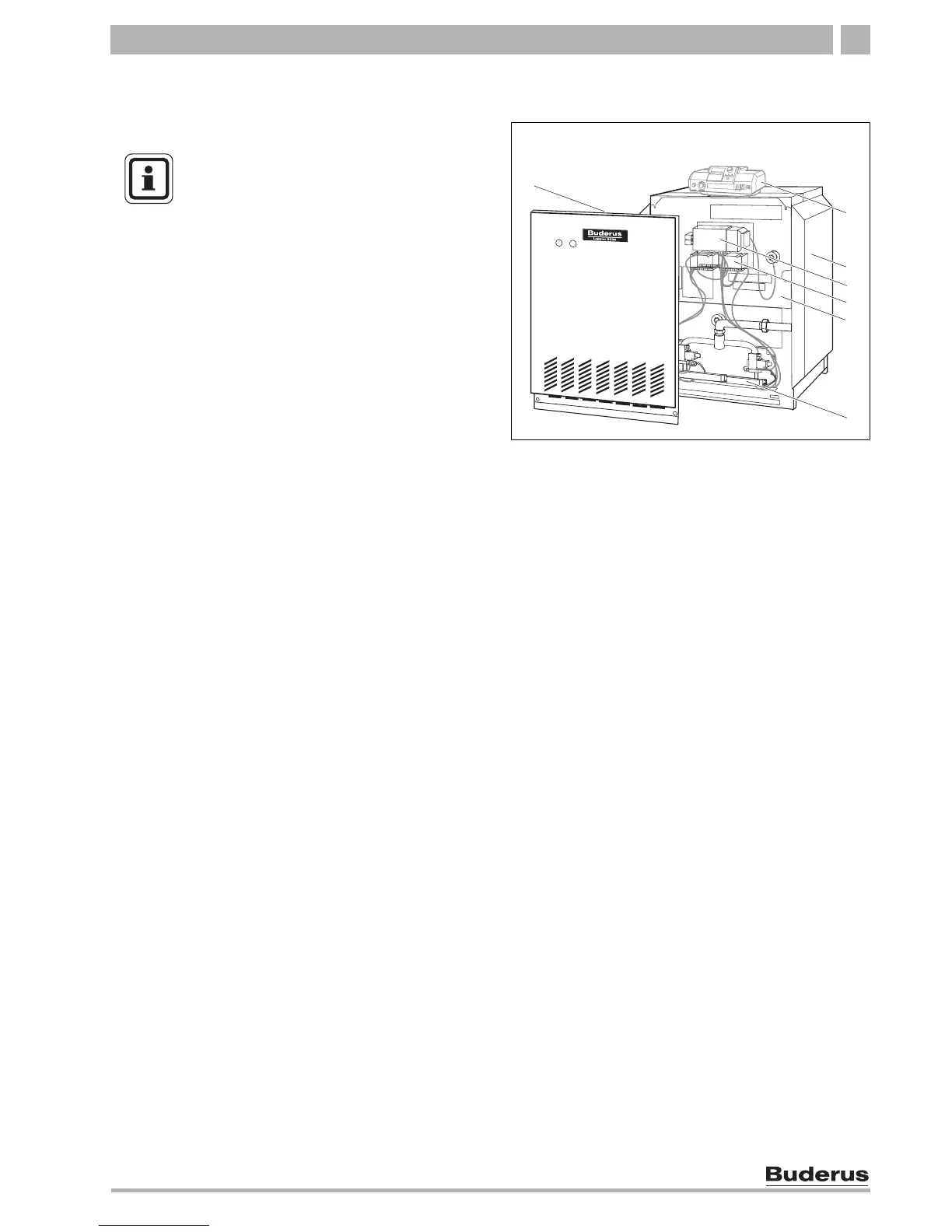

Fig. 1 Logano G334 X boiler
1 Boiler front panel
2 Logamatic 2107 control (accessory)
3 Boiler jacket
4 Aquastat (control unit)
5 Automatic igniter
6 Boiler block with insulation
7 Burner
7
1
6
4
5
3
2
USER NOTE
The boiler is fully functional with the
factory-installed aquastat. The
Logamatic
2107 control can also be
installed in addition to the factory-installed
aquastat.
