Boiler installation 7
17
We reserve the right to make any changes due to technical modifications.
Installation and maintenance instructions Logano G334 X gas-fired boiler • Issue 09/2005
7.6 Installation of Logamatic 2107 control (accessory)
The boiler is fully functional with the factory-installed
aquastat. The Logamatic 2107 control can also be
installed in addition to the factory-installed aquastat.
1. Slide the insertion tabs of the control into the oval
openings.
2. Slide control toward the boiler front panel.
3. Push to snap plastic tabs of the control into the
knock-outs.
4. Remove top cover of control Remove screws from
the top cover.
5. Fasten control with sheet-metal screws.
6. Route boiler water sensor cable through the cable
opening and unroll to the required length.
USER NOTE
Note the following when making electrical
connections:
z Lay out cables and capillaries carefully.
z Do not bend the capillaries during
installation.
z Never carry out any electrical work on
the heating system unless you are
licensed for this type of work. If you are
not a licensed electrician, have a
specialist electrical company make the
electrical connections.
z Observe the local regulations.

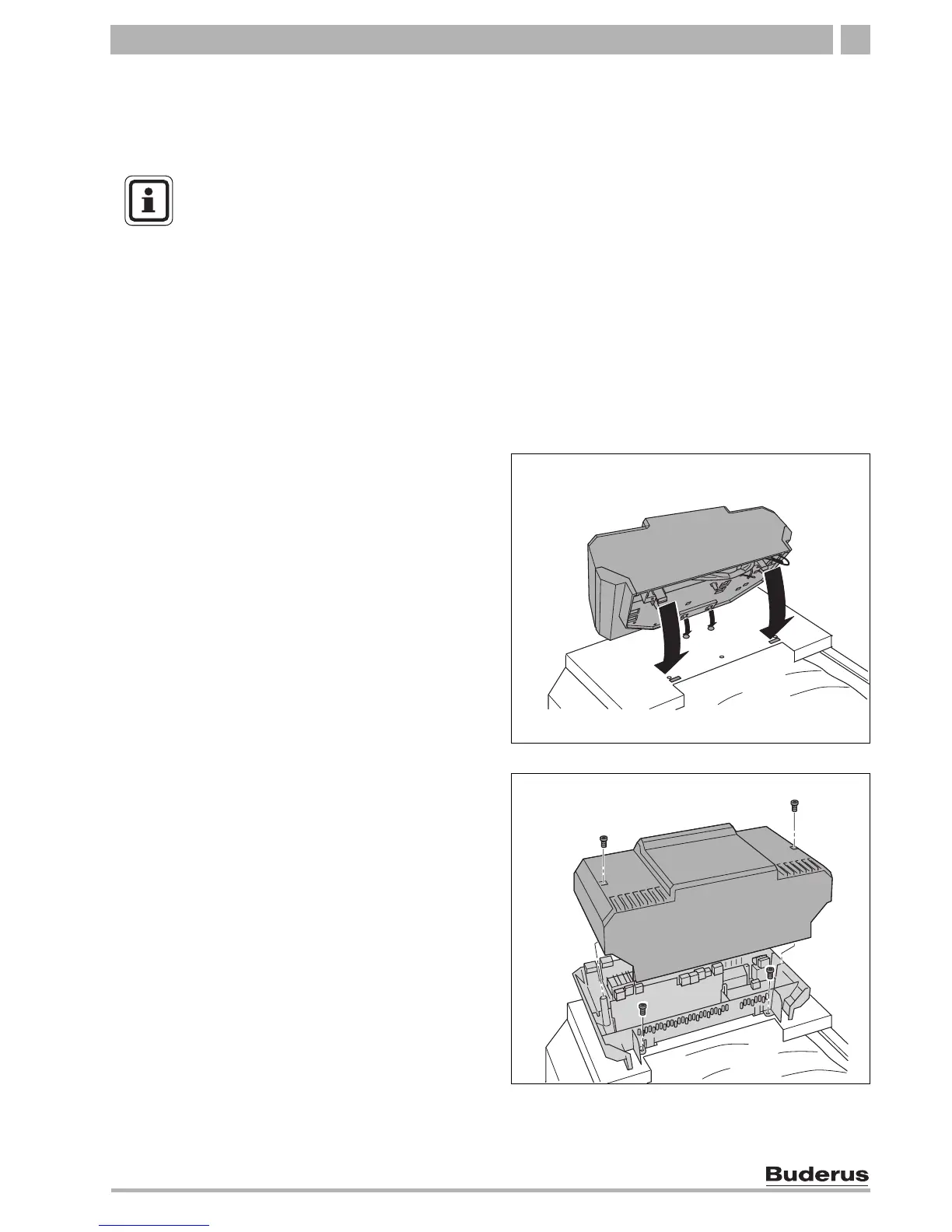

Fig. 11 Removing terminal cover
Fig. 12 Installation of Logamatic 2000 control system
1 Screws
1
