Flue pipe installation 10
27
We reserve the right to make any changes due to technical modifications.
Installation and maintenance instructions Logano G334 X gas-fired boiler • Issue 09/2005
Installing vent damper (optionally available)
The vent damper supplied with the boiler must be used
for venting the boiler only.
The position of the vent damper must be visible.
The draft hood check must be at least 6 inches from all
flammable components.
The vent damper must be freely accessible for
maintenance.
The vent damper must be open when the main burner of
the boiler is operating.
1. Place flue gas adapter on the exhaust manifold
connecting sleeve.
2. Install pins in the hole of the vent damper.
3. Fasten vent damper to the flue connector adapter
with three (3) corrosion-resistant self-tapping
screws.
Installing electrical connection of vent damper
4. Disconnect your heating system from the mains
electricity supply.
5. Route the connection wiring of the vent damper
through the wiring retainer behind the boiler and
between the insulation and the jacket to the
aquastats on the front of the boiler.
6. Connect vent damper to aquastat as shown in the
diagram.

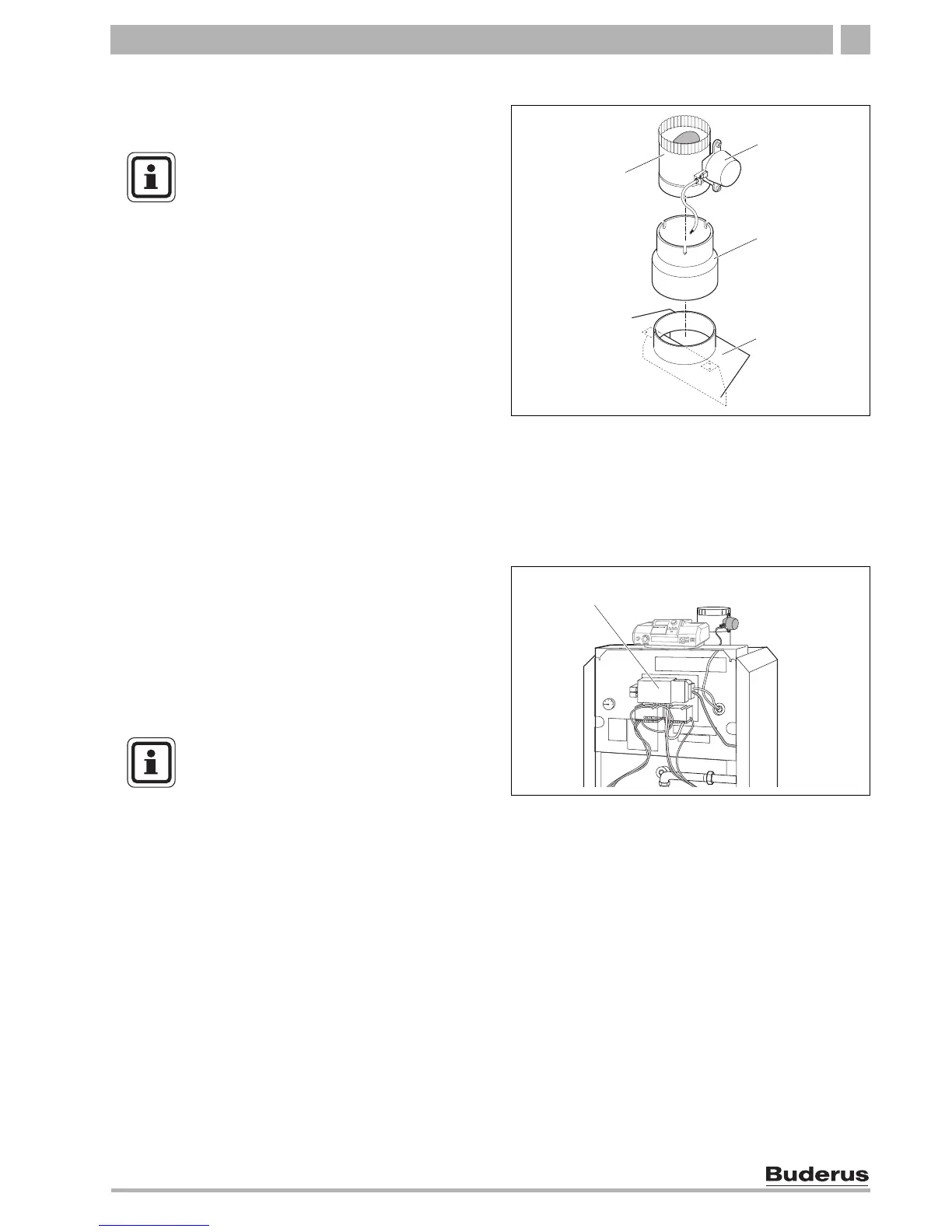

Fig. 21 Installation of vent damper
1 Vent damper (optionally available)
2 Motor
3 Vent pipe adapter
4 Draft hood
1
2
3
4
USER NOTE
In Canada the vent damper must not be
installed on a propane-fired heating
system with a timer ignition system.
Fig. 22 Connecting vent damper
1 Aquastat
1
USER NOTE
All connection points on the complete
venting system must be checked for
correct installation and sealing
immediately after carrying out one of the
installation steps. The seams and
connections must be checked for gas
leaks. Regulations require the complete
flue system to be checked at least once a
year by a qualified technician after
installation and initial operation.
