Appendix
LinkStation Setup Manual
8585
4
5
6

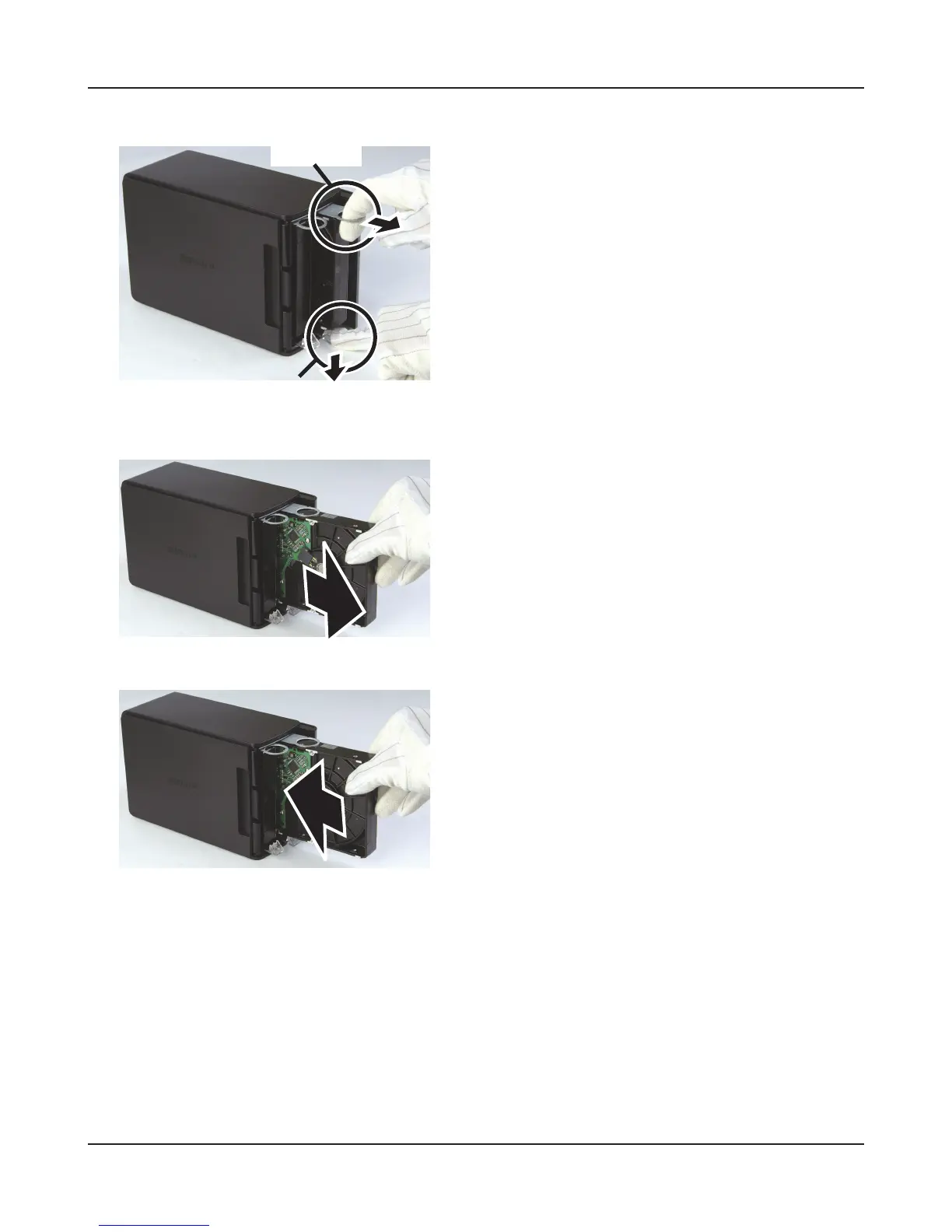

Pull out the tab above the failed drive while press-
ing the release below the drive. The tab will slide
out approximately 2cm ( 1 inch) .
Note: – Be careful so that the finger will not be
caught in knob, tab and hard disks.
Remove the failed drive.
Insert the new drive until it clicks.
To Next Page
