POSITIONER TYPE 1067
E-45-
APPENDIX
A4 : OPTION BOARD "BINARY POSITION INDICATION/BOOSTER":
MOUNTING AND CONNECTION
- The positioner must be equipped with the software version F, or higher. Check it in the
main menu, option END: it is displayed at the right-hand side of the screen.
- For positioners manufactured before 1996 mounting is only possible if the
motherboard is fitted with black connection blocks (if not, please contact you nearest
Bürkert agent).
Technical characteristics
Positioner Relay
- Operating voltage : 24 VDC - Contact type : closed
- Electric power consumption : max. 30 W - Commutation current : 0,5 A
- Electric connection : screw terminals, - Breaking capacity : 10 W
1,5 mm2 cross- - Contact resistance : 100 mOhm
section
Mounting
- Disconnect the positioner from the voltage supply
- Unscrew the 4 screws of the positioner cover and open the cover
- Remove the 2 red jumpers from the motherboard

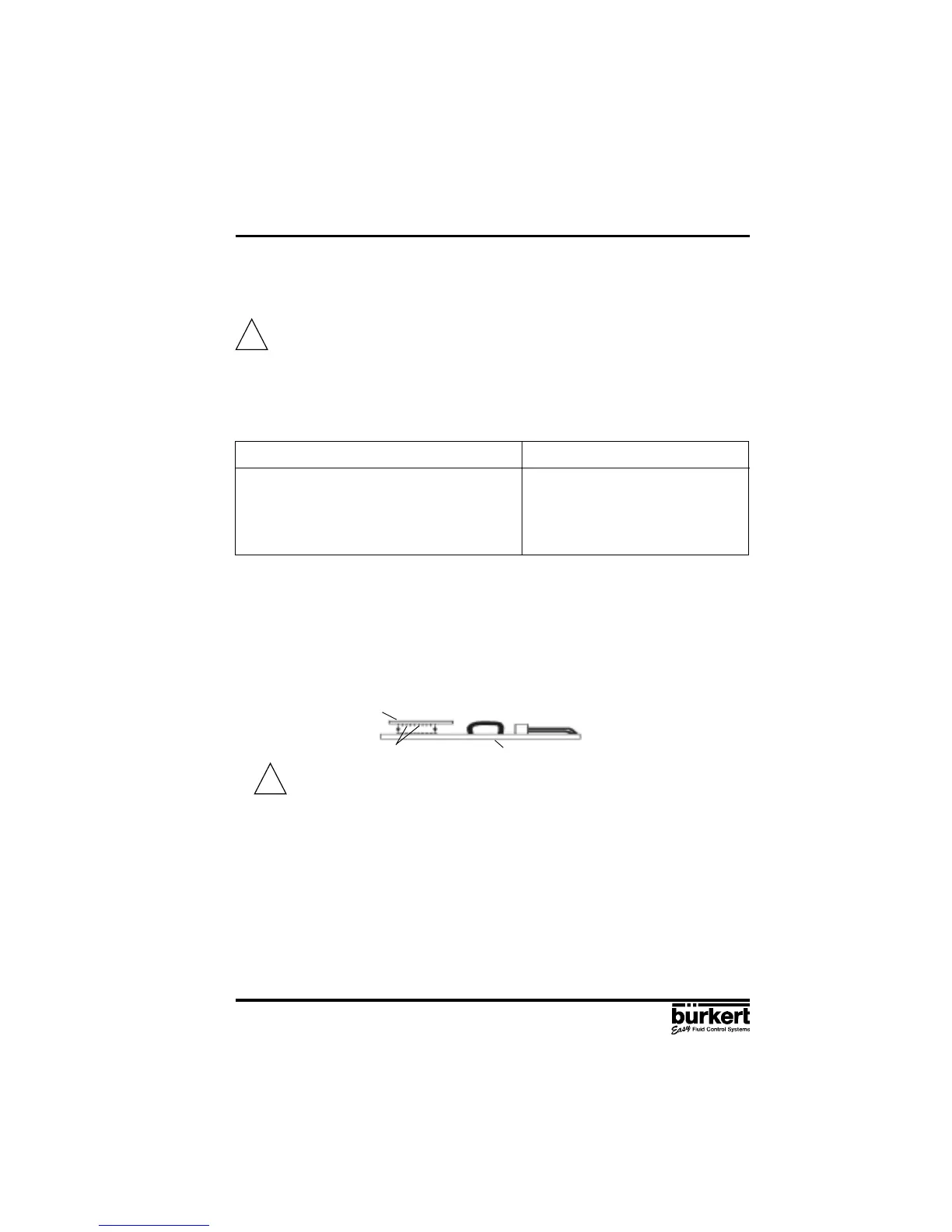

- Insert the optional board onto the motherboard (see figure below)
Make sure the pins correctly slide into the motherboard.
- Pass the cables through one of the 2 PG9 cable glands and dismantle them over 6 mm.
!
!
Option board
Motherboard
pins
