Burkert 2000 User Manual

Type 2000
Product description
12
Pilot air ports
Transparent cap
with position indicator
Actuator cover
Actuator housing
Port connection
Angle seat body
Type 2000
Characters for designation
of flow direction

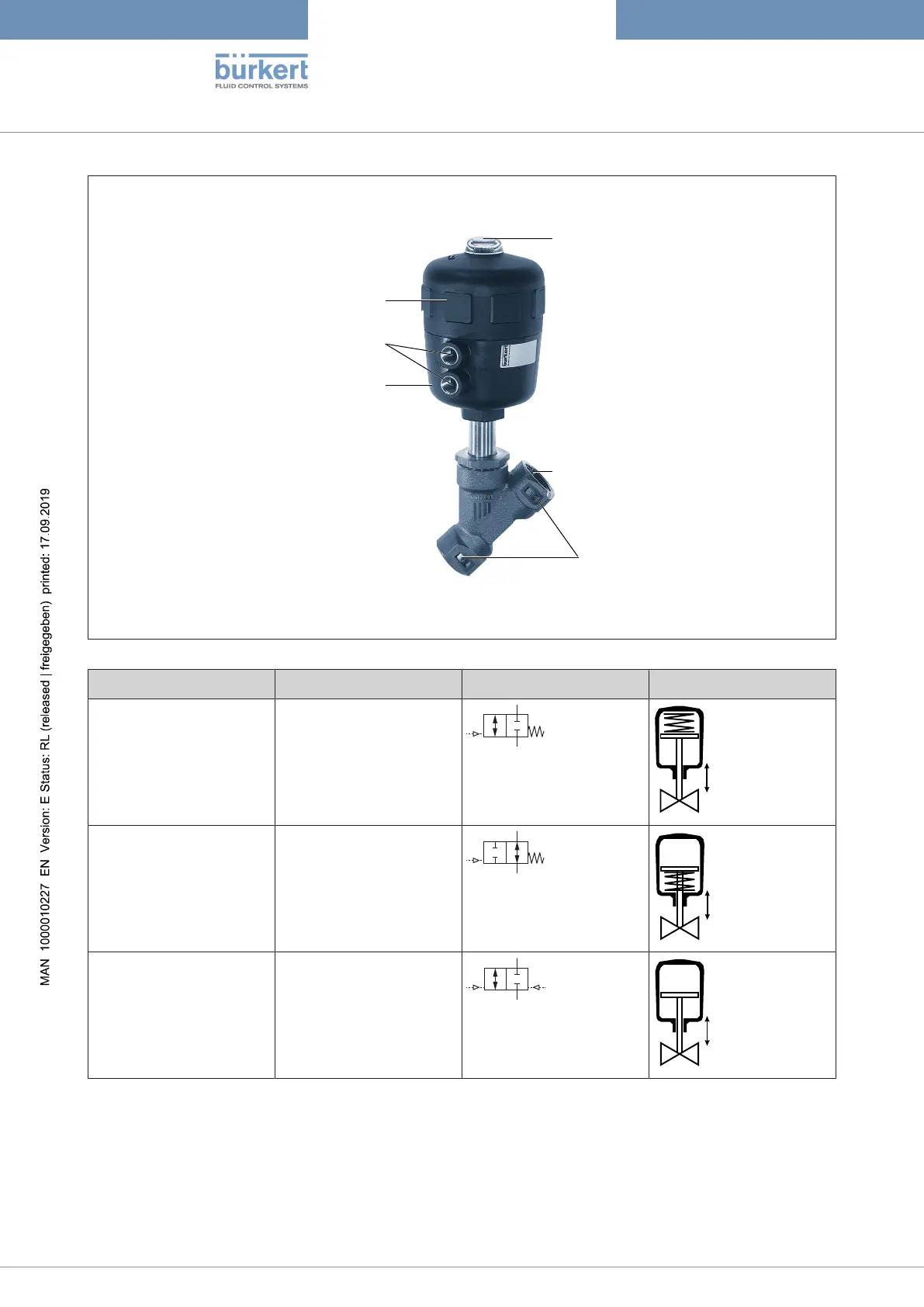

Fig.1: Structure and description
Control function Definition Circuit symbol Figure
A (CFA) Closed by spring force in
rest position.
2 (A),(P)
1 (P),(A)
up
down
B (CFB) Opened by spring force
in rest position.
2 (B),(P)
1 (P),(B)
up
down
I (CFI) Actuating function via re-
ciprocal pressurisation.
2(A),(P)
1(P),(A)
up
down
Tab.1: Control functions

Burkert 2000 Specifications

General

Model	2000
Manufacturer	Burkert
Ambient Temperature	-10 to +60 °C
Protection Class	IP65
Operating Temperature	-10 to + °C
Seal Material	FKM
Operating Pressure	0- bar
Fluid Temperature	-10 to + °C
