Burkert 2000 User Manual

Type 2000
Installation
27

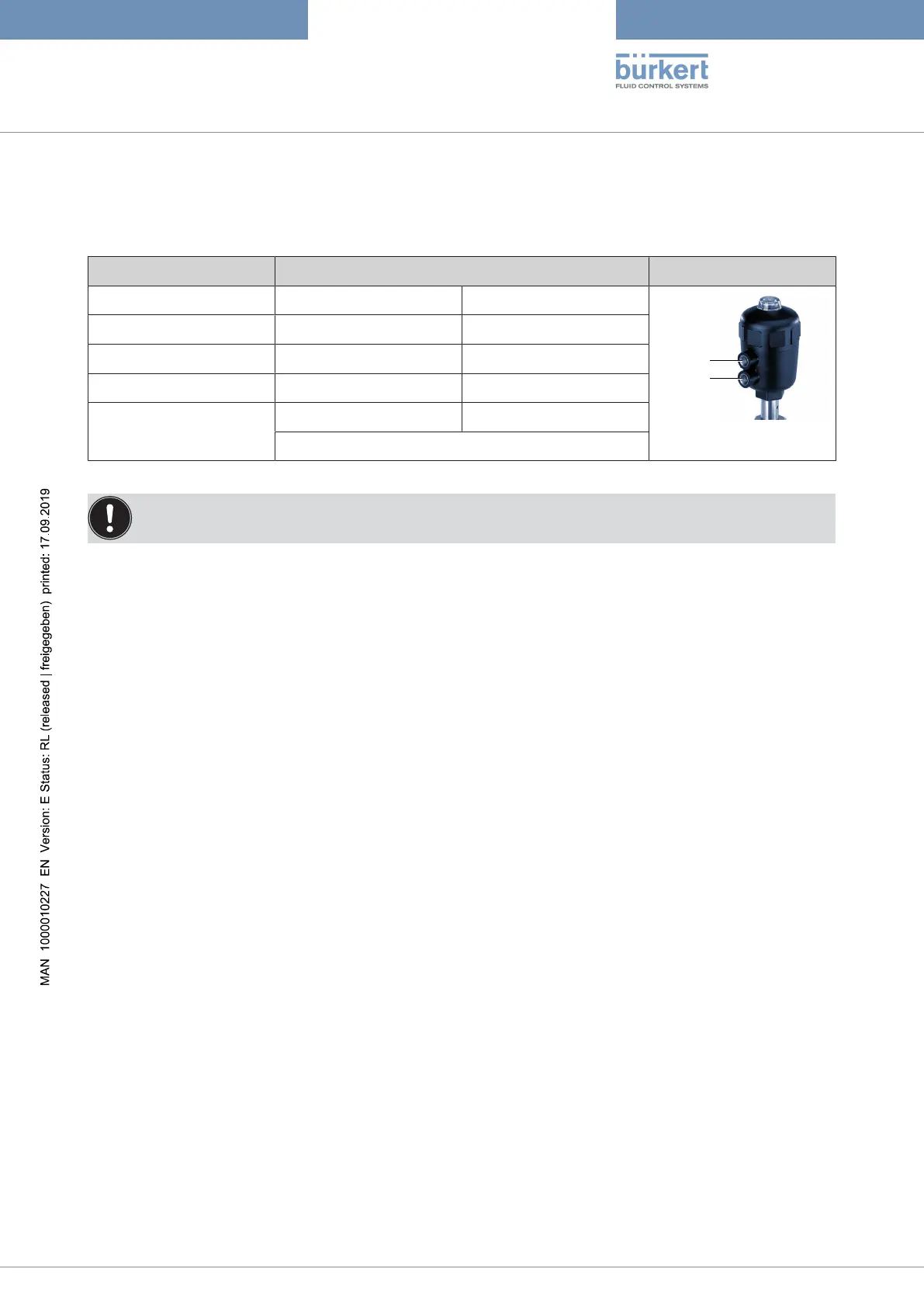

Connect control medium to pilot air port at the top and bottom.
Pressure on top connector closes the valve.
Pressure on bottom connector opens the valve.
Control function Pilot air port
Top Bottom
Pilot air
connection
Top
Bottom
A X
B X
I X X
Closes Opens
valve
Tab.7: Pilot air port
When operating in an aggressive environment, divert free pneumatic ports into a neutral atmosphere
using a pneumatic hose.
Pilot air hose:
Pilot air hoses of sizes G¼" or G⅛" (actuator ø40 mm) can be used.
