Burkert 2300 - Flow values and characteristics

17
Technical data

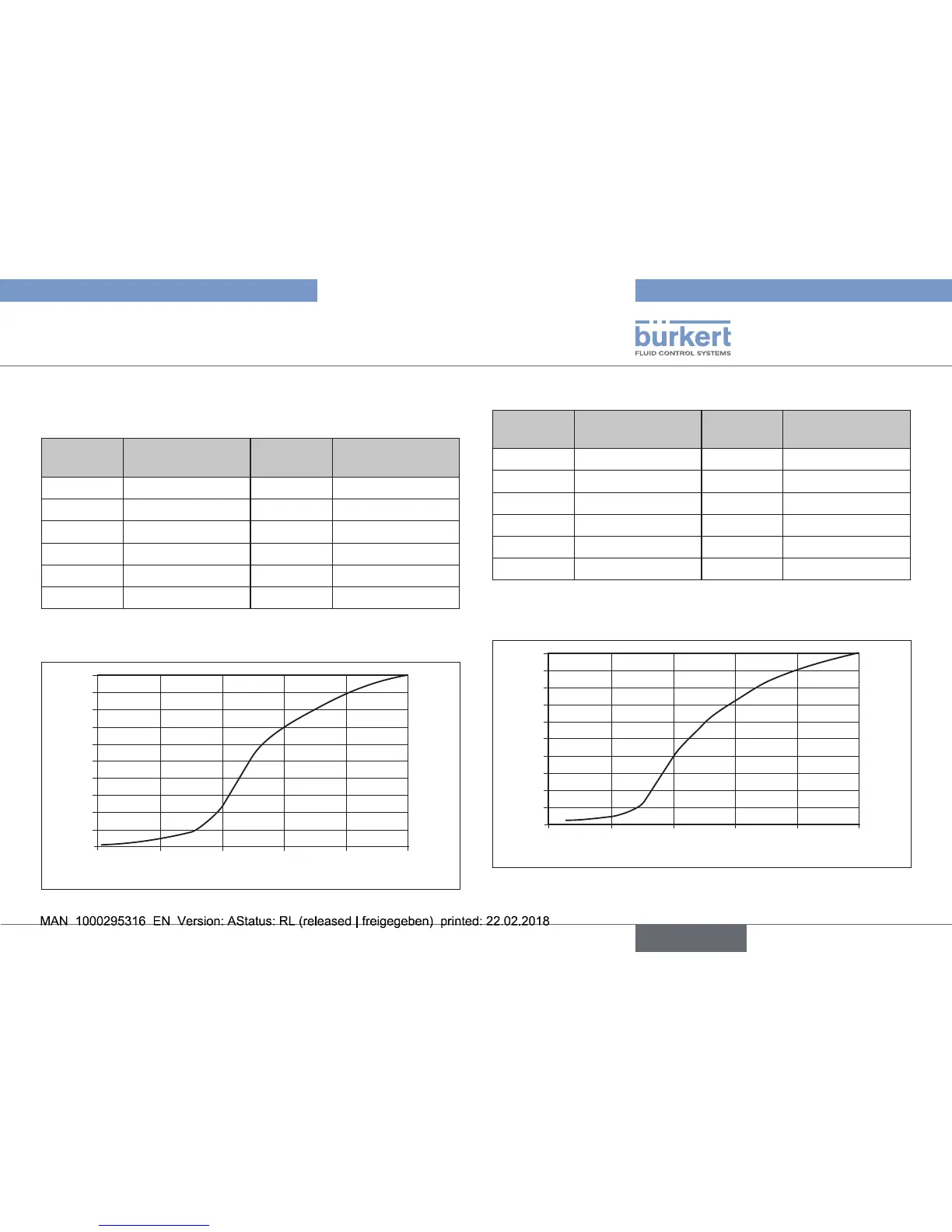

7.5 Flow values and characteristics
Flow values for DN15
Stroke
[%]
Kv value [m
3
/h]
Stroke
[%]
Kv value [m
3
/h]
5 0.16 60 3.5
10 0.17 70 4.0
20 0.22 80 4.5
30 0.4 90 4.8
40 1.2 100 5.0
50 2.7
Tab. 7: Flow values for DN15
Flow characteristics for DN15
Stroke [%]
Kv [m
3
/h]
0,0
5,0
4,5
4,0
3,5
3,0
2,5
2,0
1,5
1,0
0,5
0
20
40 60 80
100
Fig. 7: Flow characteristics for DN15
Flow values for DN20
Stroke
[%]
Kv value [m
3
/h]
Stroke
[%]
Kv value [m
3
/h]
5 0.26 60 7.2
10 0.27 70 8.3
20 0.4 80 9.1
30 1.1 90 9.6
40 4.0 100 10.0
50 5.9
Tab. 8: Flow values for DN20
Flow characteristics for DN20
Stroke [%]
Kv [m
3
/h]
0,0
10,0
9,0
8,0
7,0
6,0
5,0
4,0
3,0
2,0
1,0
0
20
40 60 80
100
Fig. 8: Flow characteristics for DN20
english
Type 2300
