BURNiT Pell 25 - Connecting the Burner to Pellet Auger and Fuel Hopper; Connecting the Burner to the Mains Power Supply

TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL
TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL
12
Pell
25
Pell
40
Pell
70
Pell
90
Pell
150
А 250 350 350 500 500
B 390 450 550 750 800
C 250 450 450 500 500
7.1.Pelletburnerconnecontothefuel
hopperandpelletauger
Take the feeder chute exible hose (from
the auger set). Using a bracket, clamp
one end of the hose onto the motor-end
outlet of the pellet auger.
- Remember – pellet auger must be
installed at 45° angle to the ground
horizontal surface.
- Fill the hopper with fuel (see table 2 for
parameters of the fuel types used)
- Plug the power cord of the pellet auger
into the indicated Schuko-type burner
socket on the le side of the burner
housing.

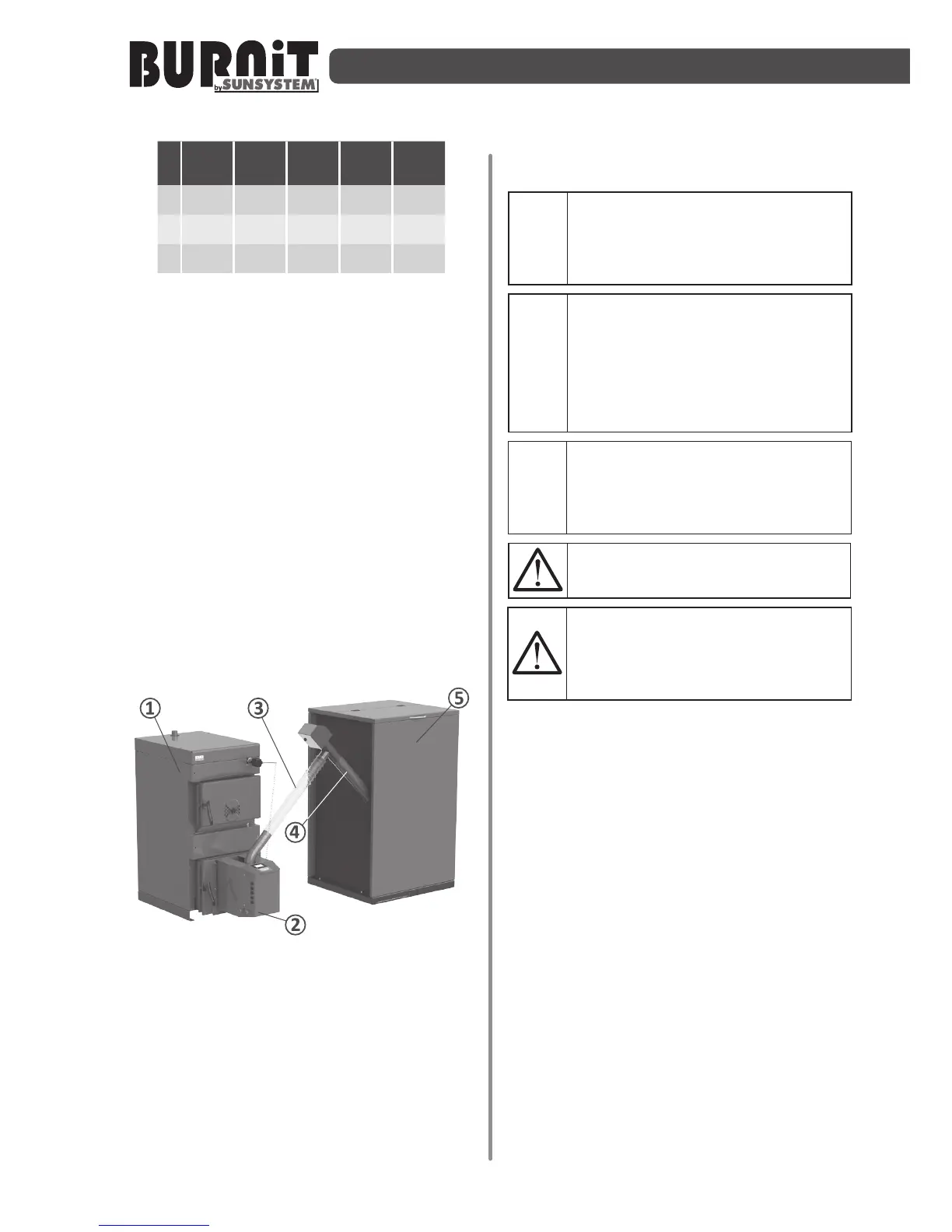

Diagram 5.
Mounng the pellet burner Pell to WBS
boiler
1. WBS boiler; 4. Auger;
2. Pellet burner Pell; 5. Fuel hopper.
3. Auger flexible pipe;
7.2.Connecngthepelletburnertothe
mainspowersupply

Such connection must be
performed by a technician /
serviceshopauthorizedforsuch
operations.

Caution! ELECTRIC SHOCK
HAZARD!
- Before opening the unit: switch
o the voltage and secure the
unit against accidental restart.
- Observe installaon instrucons.

It is mandatory to assure a
backup power generator of
correspondingratedpower!(see
12.3)
Impropercableconneconsmay
damagetheregulator!
The device may be damaged
if struck by a lightning. Make
sure it is unplugged during the
storms.
The burner must be connected to a
220V/50Hz mains using power plug
(3 meters long, bound to the burner).
Create ght connecon with the
electrical mains which complies with the
local regulaons.
