TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL
TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL
12. TECHNICAL FEATURES OF PELLET BURNER PELL
12.1.ElementsofpelletburnerPELL

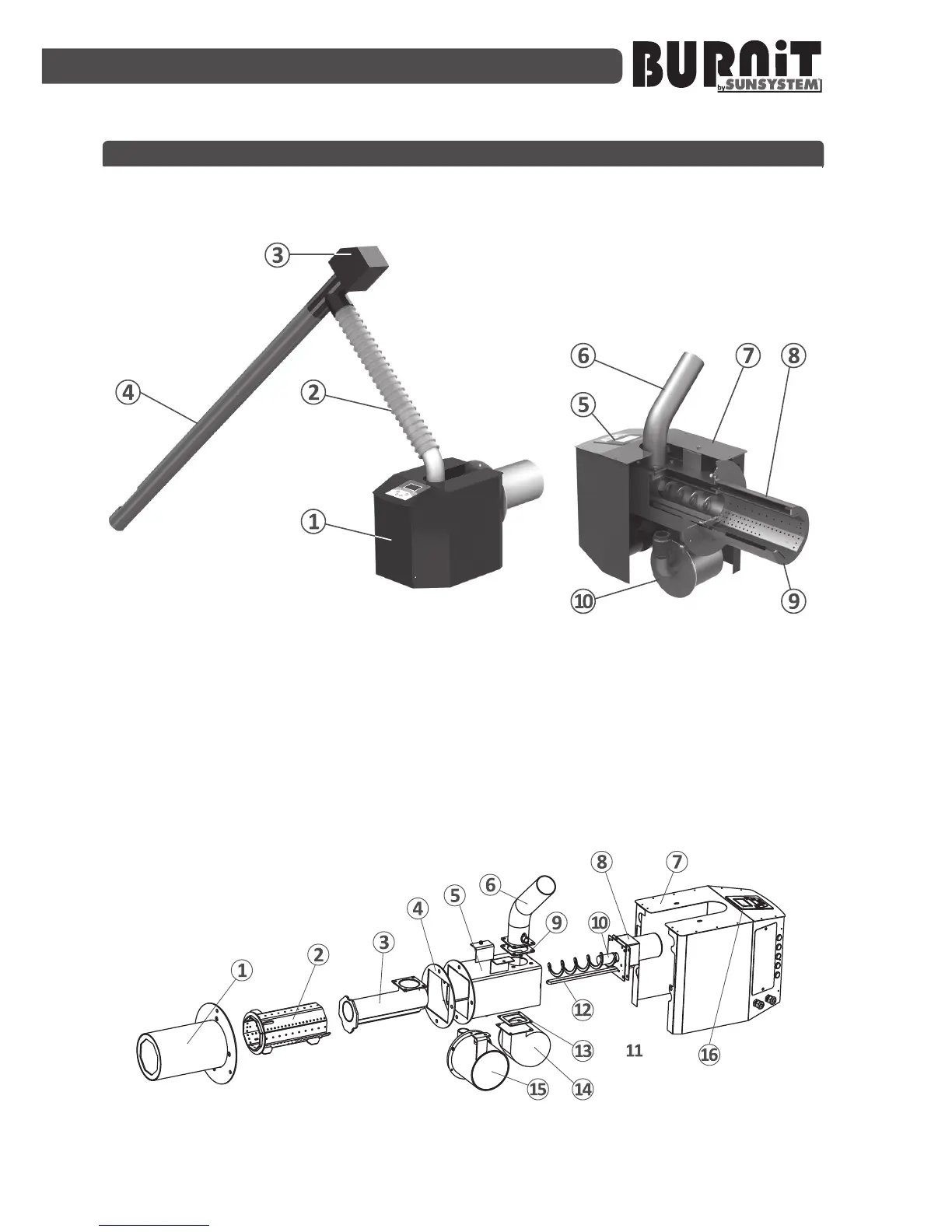

Diagram 9. Elements of pellet burner Pell
1. Pellet burner Pell 6. Feeder chute
2. Auger exible pipe connecon 7. Burner housing
3. Auger` motor 8. Combuson chamber corps
4. Automac pellet auger 9. Combuson chamber
5. Control unit 10. Automac cleaning system
12.2.SparepartsforPellpelletburner
Diagram 10. Spare parts for pellet burner Pell
