151 of 166
10.4.2.2 Switching signals for X-channel with "Trigger" reference
The DIGIFORCE
®
9311 can only set/reset the X-channel switching signal with trigger reference during an
active measurement, i.e. after the trigger event.
The reference for the X-channel is the trigger event, for instance this may be the contact force of a press
ram on a component.

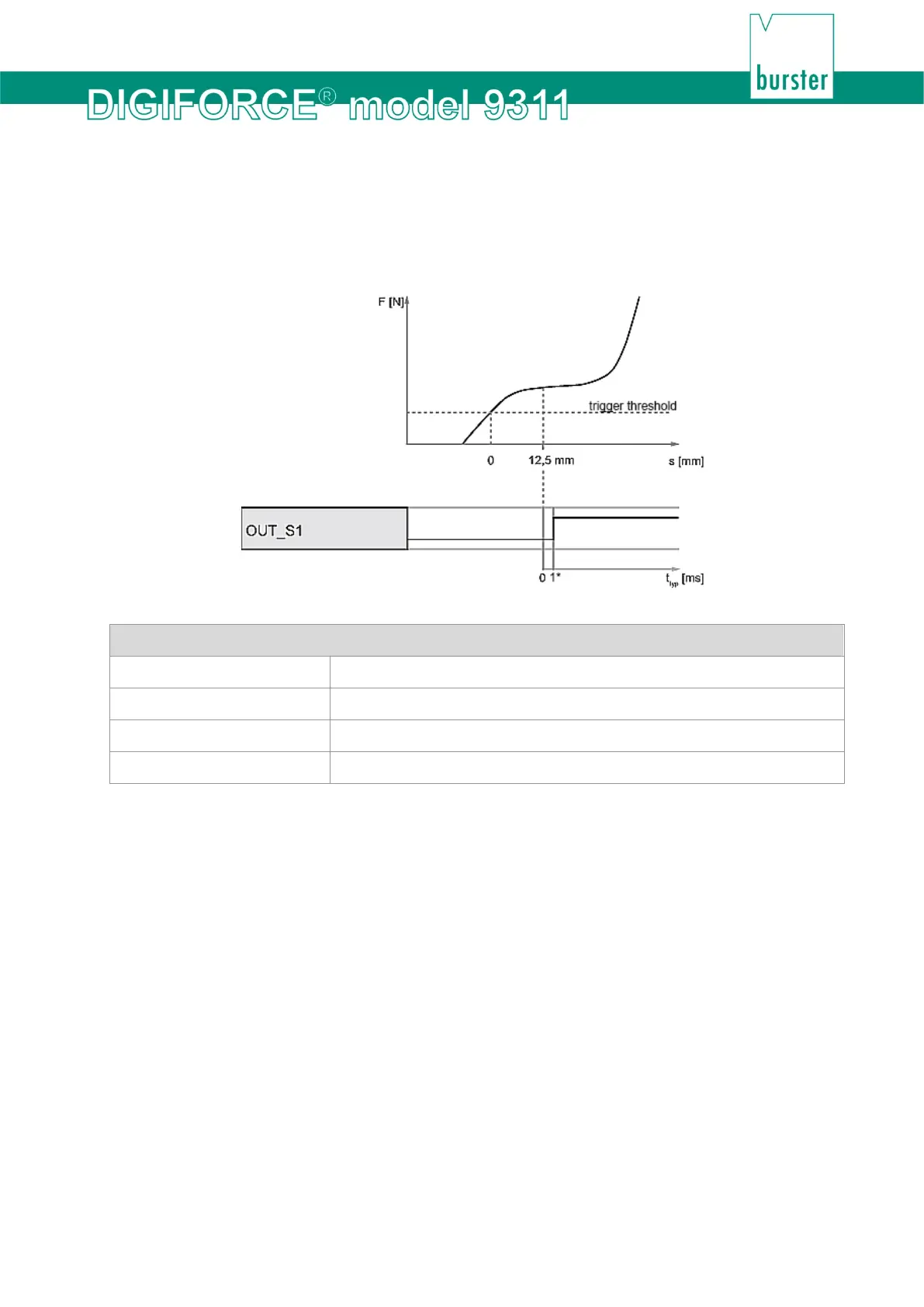

Diagram 94: Switching signals for X-channel with "Trigger" reference
"OUT_S1" configuration
Channel X
Value 12.5 mm
Active high
Reference Y trigger
*Low-frequency low-pass filtering (filter value in channel settings) may extend the typical delay shown.
